FUEL SYSTEM (Programmed Fuel Injection)
6-48

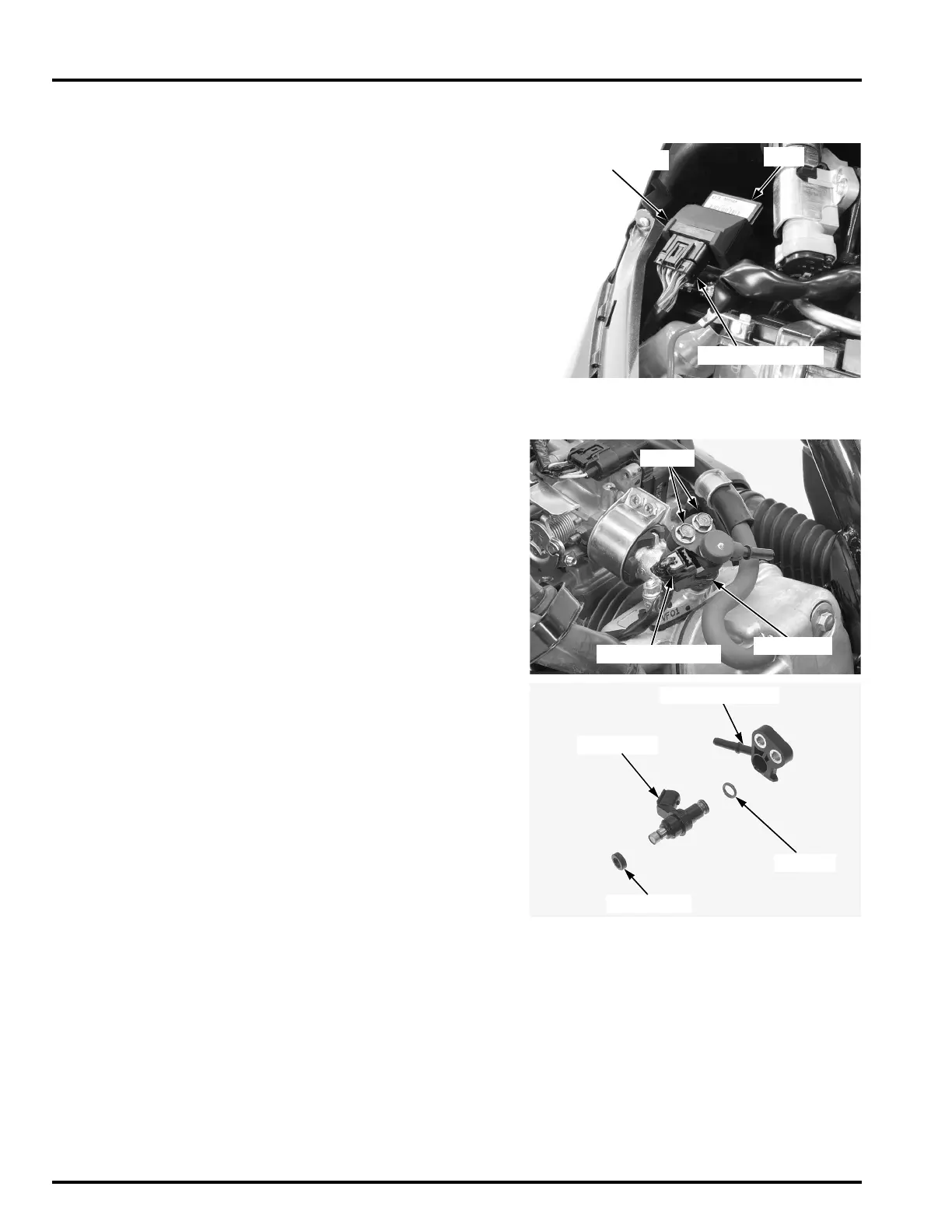

ECM (Engine Control Module)
REMOVAL/INSTALLATION
Remove the front center cover (page 3-4).
Disconnect the ECM 33P connector.
Remove the ECM from the rubber holder.
Installation is in the reverse order of removal.
INJECTOR
REMOVAL
Relieve the fuel pressure and disconnect the quick
connect fitting (page 6-32).
Before removal, clean around the injector.
Disconnect the injector 2P connector.
Remove the bolts and injector from the intake pipe.
Remove the following:
– Fuel feed pipe
– O-ring
– Seal ring
RUBBER HOLDER
33P CONNECTOR
ECM
BOLTS
INJECTOR
2P CONNECTOR
FUEL FEED PIPE
INJECTOR
O-RING
SEAL RING
To Next Page
