FRAME/BODY PANELS/EXHAUST SYSTEM
3-2
FRAME/BODY PANEL S/EXHAUS T SYSTEM

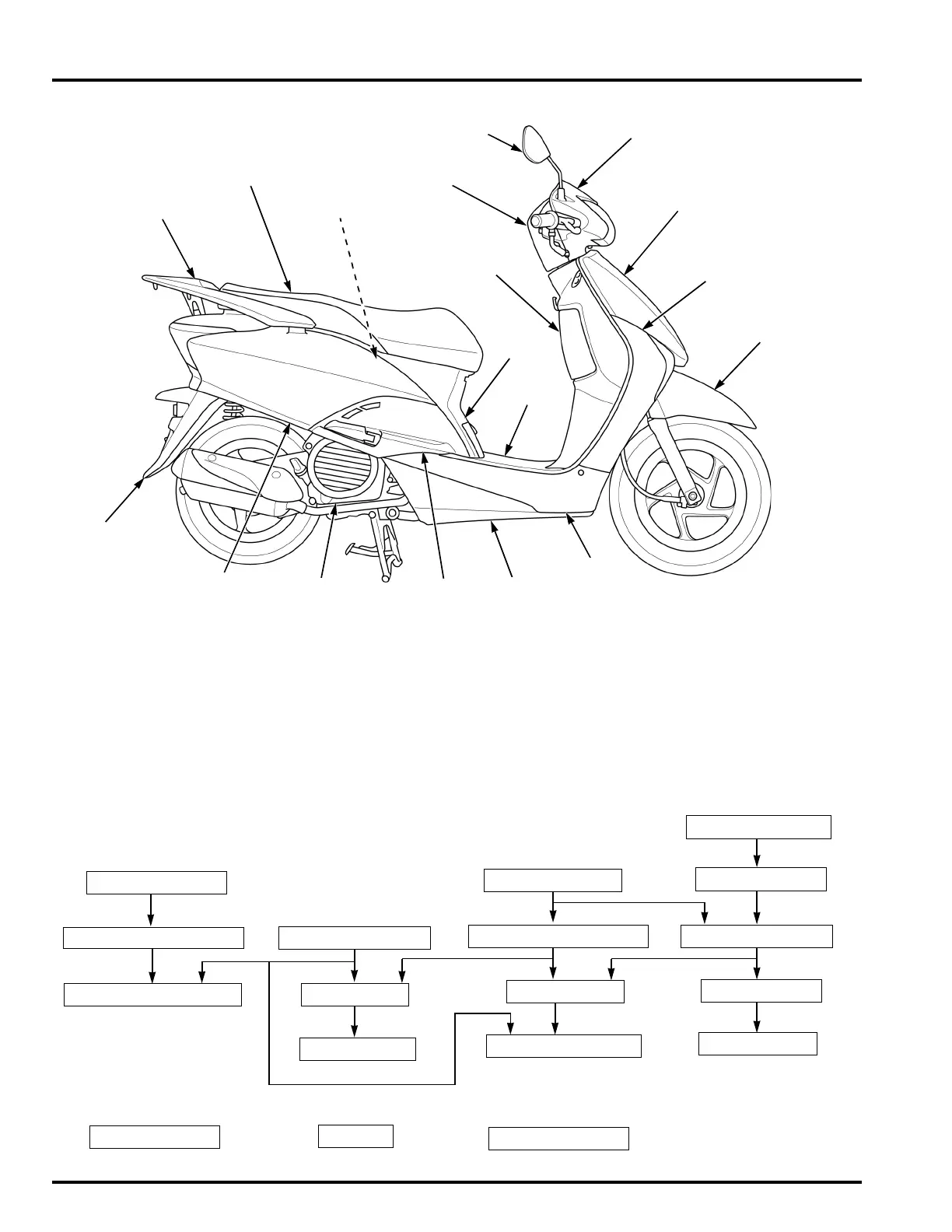

BODY PANEL LOCATIONS
BODY PANEL REMOVAL CHART
• This chart shows removal order of frame covers.
(1)
(6)
(8)
(10)
(7)
(14)
(11)
(12)
(13)
(2)
(3)
(15)
(16)
(17)
(5)
(18)
(9)
(4)
(1) Front fender (page 3-4) (7) Front handlebar cover (page 3-6) (13) Front body cover (page 3-9)
(2) Front center cover (page 3-4) (8) Rear handlebar cover (page 3-7) (14) Body cover (page 3-9)
(3) Side body cover (page 3-4) (9) Under cover (page 3-7)
(15) Fl oor panel (page 3-11)
(4) Floor panel side cover (page 3-5) (10) Seat (page 3-8)
(16) Front inner cover (page 3-12)
(5) Front cover (page 3-6) (11) Grab rail/carrier (page 3-8) (17) Rear fender (page 3-12)
(6) Rear view mirror (page 3-6) (12) Luggage box (page 3-8) (18) Radiator cover (page 3-13)
(1) Front fender
(2) Front center cover
(5) Front cover
(6) Rear view mirror
(7) Front handlebar cover
(8) Rear handlebar cover
(4) Floor panel side cover
(9) Under cover
(10) Seat
(12) Luggage box
(3) Side body cover
(14) Body cover
(15) Floor panel
(16) Front inner cover
(17) Rear fender
(11) Grab rail/carrier
(18) Radiator cover
(13) Front body cover
