LIGHTS/METERS/SWITCHES
21-4

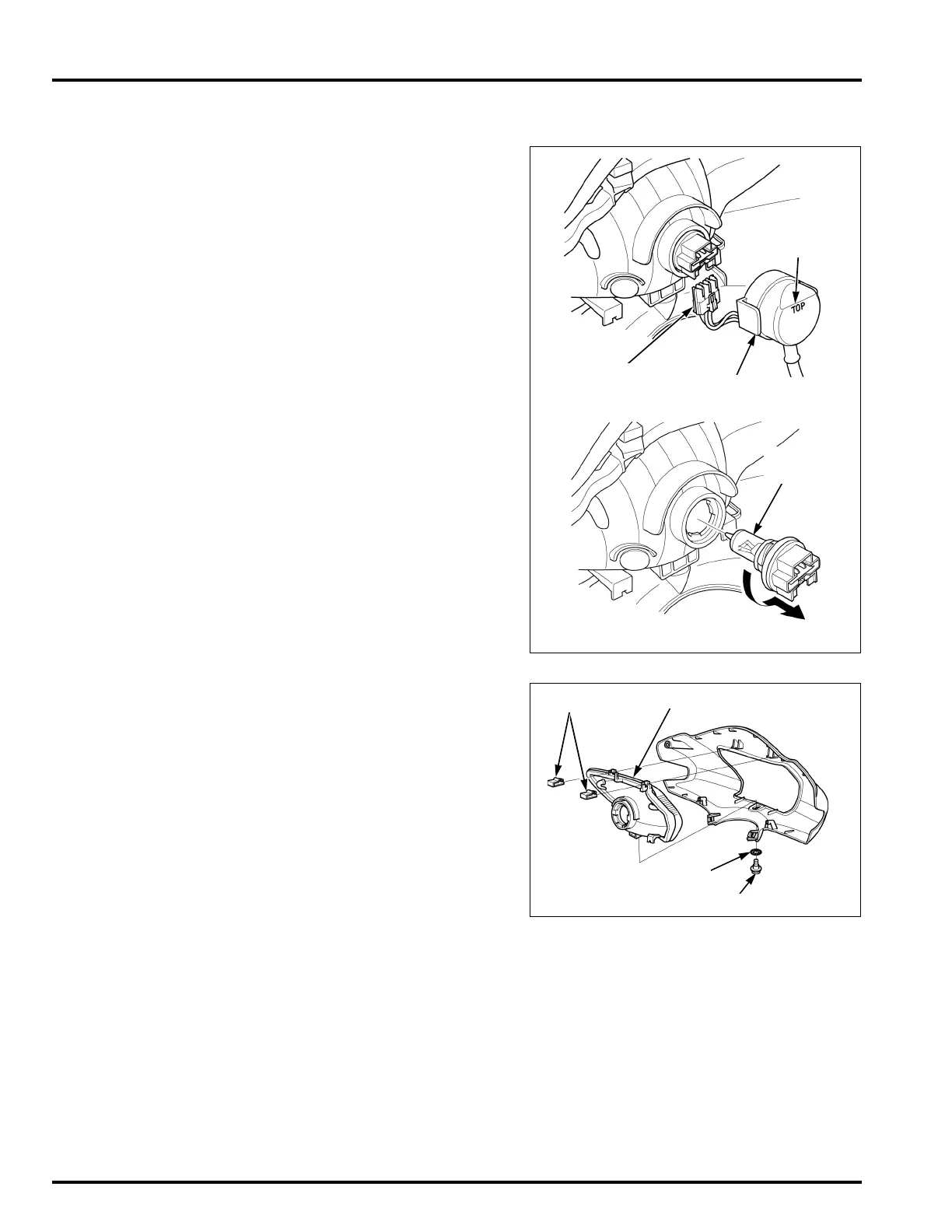

HEADLIGHT
BULB REPLACEMENT
Remove the front handlebar cover (page 3-6).
Pull off the dust cover from the headlight unit.
Disconnect the headlight 3P connector.
Release the headlight bulb by turning counterclock-
wise.
Install the headlight bulb to the headlight unit by
turning clockwise.
Connect the headlight 3P connector.
Install the dust cover with its TOP mark facing up.
Install the front handlebar cover (page 3-6).
REMOVAL/INSTALLATION
Remove the front handlebar cover (page 3-6).
Remove the headlight aim adjusting bolt and wave
washer.
Remove the set clips and headlight unit.
Installation is in the reverse order of removal.
Adjust the headlight aim (page 4-20).
DUST COVER
3P CONNECTOR
HEADLIGHT
BULB
TOP MARK
HEADLIGHT UNIT
CLIPS
HEADLIGHT AIM ADJUSTING BOLT
WAVE WASHER
