FRONT WHEEL/SUSPENSION/STEERING
15-23

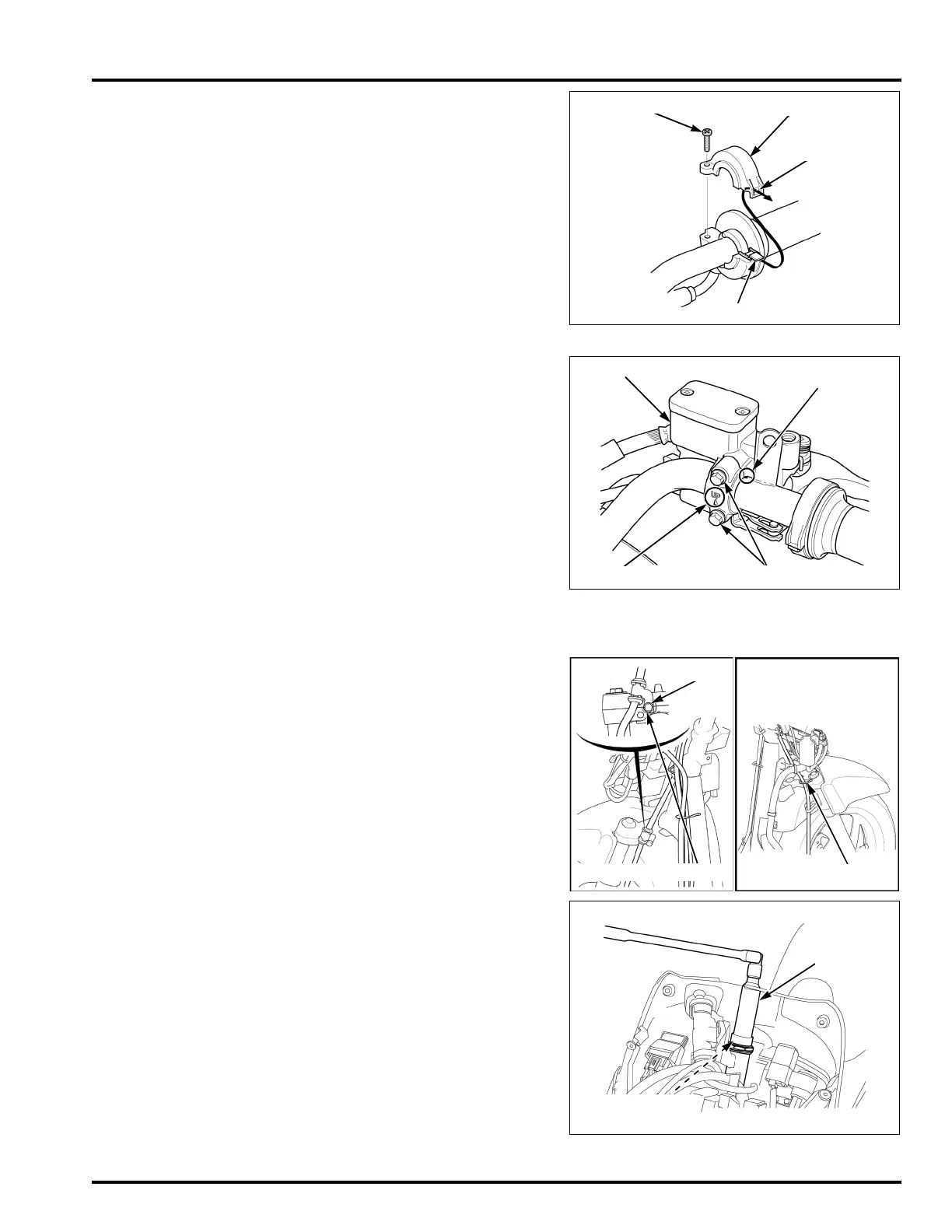

Install the upper throttle housing by aligning its slot
with the tab on the lower housing.
Install and tighten the screw.
BRAKE MASTER CYLINDER
Set the brake master cylinder to the right handlebar.
Install the master cylinder holder with its "UP" mark
facing up.
Align the end of the master cylinder with the punch
mark on the handlebar and tighten the upper bolt
first, then tighten the lower bolt to the specified
torque.
Install the following:
– Rear handlebar cover (page 3-7)
– Front handlebar cover (page 3-6)
– Front center cover (page 3-4)
Check the combined brake system (page 4-18).
STEERING STEM
REMOVAL
Remove the following:
– Front wheel (page 15-6)
– Fork (page 15-12)
– Handlebar (page 15-20)
Remove the brake hose clamp bolt and release the
brake hose clamp.
Release the speedometer cable from the cable
guide.
Loosen the steering stem lock nut using the socket
wrench.
Remove the steering stem lock nut and lock washer.
SCREW
UPPER HOUSING
SLOT
TAB
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
BOLTS
"UP" MARK
PUNCH MARK
BRAKE MASTER CYLINDER
BRAKE HOSE CLAMP
BOLT
CABLE GUIDE
TOOL:
Socket wrench 07916-KM10000
SOCKET
WRENCH
LOCK NUT/
LOCK WASHER
