MAINTENANCE
4-15

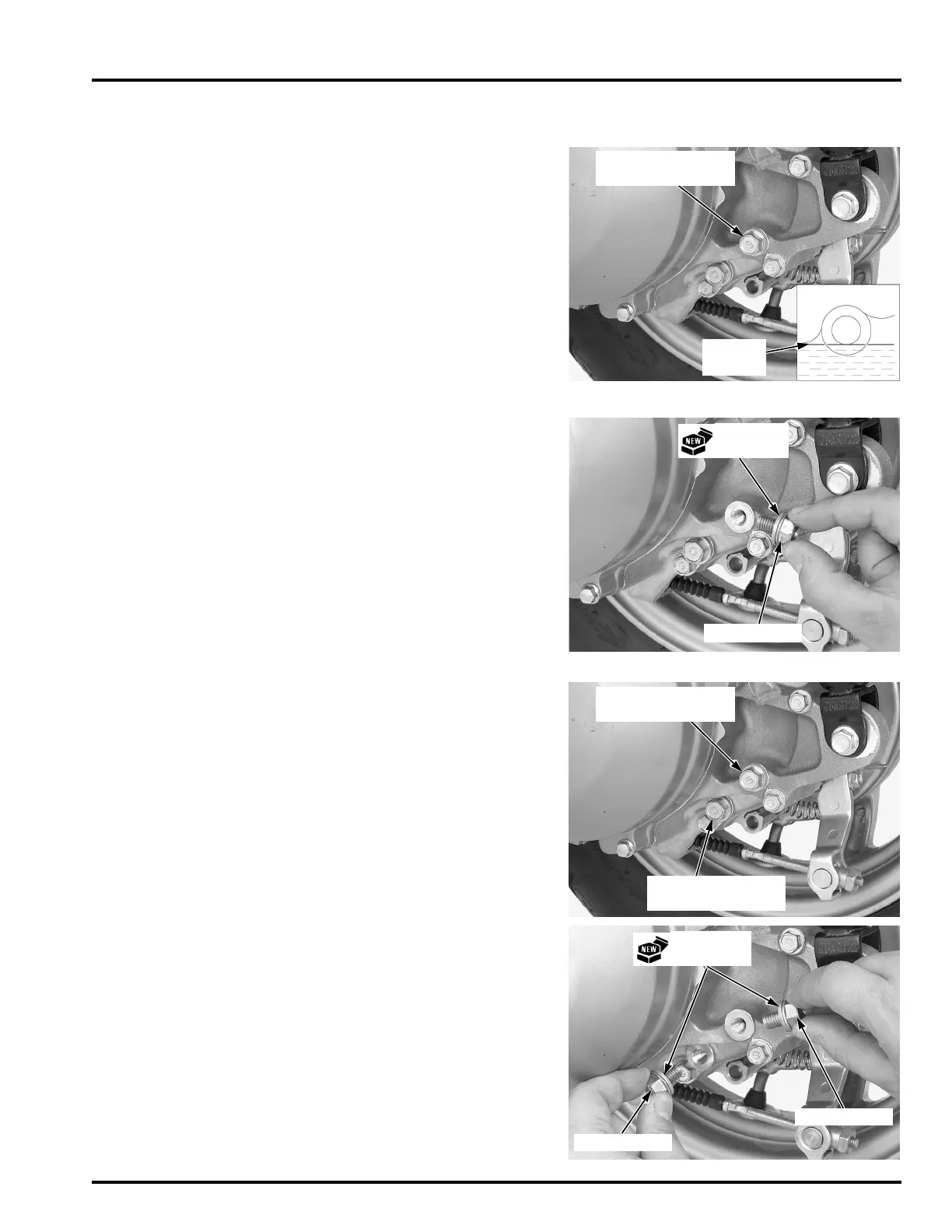

FINAL DRIVE OIL
OIL LEVEL CHECK
Make sure that the final reduction case has no oil
leaks.
Support the scooter with its centerstand.
Remove the final reduction oil check bolt and seal-
ing washer.
Check whether the oil flows out from the final
reduction check bolt hole.
If the level is low (oil does not flow out), add the rec-
ommended oil as described below.
Install the final reduction oil check bolt with a new
sealing washer and tighten it to the specified
torque.
OIL CHANGE
Place an oil drain pan under the final reduction case
to collect the oil, then remove the final reduction oil
check bolt, final reduction oil drain bolt and sealing
washers.
Slowly turn the rear wheel and drain the oil.
After draining the oil completely, install the drain
bolt with a new sealing washer and tighten it to the
specified torque.
Fill the final reduction case with recommended oil
up to the correct level (page 4-15).
Install the check bolt with a new sealing washer and
tighten it to the specified torque.
RECOMMENDED FINAL DRIVE OIL:
API service classification: SG or higher (except oils
labeled as energy conserving on the circular API
service label)
Viscosity: SAE 10W-30
JASO T 903 standard: MB
LOWER
LEVEL
CHECK BOLT/
SEALING WASHER
TORQUE: 13 N·m (1.3 kgf·m, 10 lbf·ft)
CHECK BOLT/
SEALING WASHER
DRAIN BOLT/
SEALING WASHER
TORQUE: 13 N·m (1.3 kgf·m, 10 lbf·ft)
FINAL REDUCTION OIL CAPACITY:
0.10 liter (0.11 US qt, 0.09 lmp qt) at draining
0.12 liter (0.13 US qt, 0.11 lmp qt) at disassembly
TORQUE: 13 N·m (1.3 kgf·m, 10 lbf·ft)
DRAIN BOLT
CHECK BOLT
SEALING
WASHERS
