FINAL REDUCTION
12-9

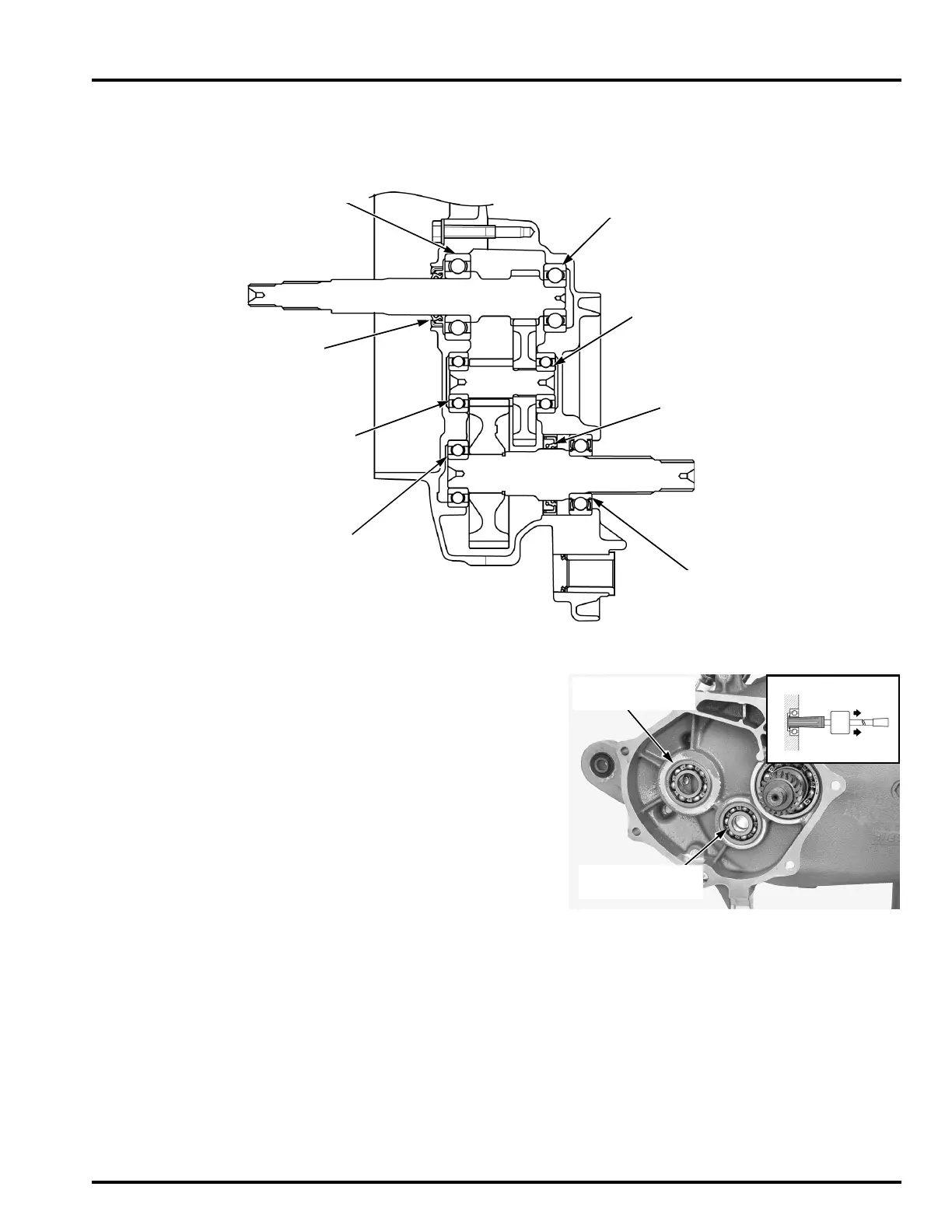

FINAL REDUCTION BEARING
REPLACEMENT
LEFT CRANKCASE BEARING
Be careful not to
damage the final
reduction case mat-
ing surface.
Remove the countershaft and final gear shaft bear-
ings using the special tools.
FINAL GEAR SHAFT
BEARING (No.6202)
(15 x 35 x 11)
DRIVESHAFT
BEARING (No.6204)
(20 x 47 x 14)
COUNTERSHAFT
BEARING (No.6201)
(12 x 32 x 10)
DRIVESHAFT
BEARING (No.6301)
(12 x 37 x 12)
COUNTERSHAFT
BEARING (No.6201)
(12 x 32 x 10)
FINAL GEAR SHAFT
BEARING (No.6004UU)
(20 x 42 x 12)
OIL SEAL
(27 x 42 x 7)
OIL SEAL
(20 x 32 x 6)
TOOLS:
Countershaft bearing:
Bearing remover head, 12 mm 07936-1660110
Bearing remover shaft, 12 mm 07936-1660120
Remover weight 07741-0010201
Final gear shaft bearing:
Bearing remover head, 15 mm 07936-KC10200
Bearing remover shaft, 15mm 07936-KC10100
Remover weight 07741-0010201
FINAL GEAR
SHAFT BEARING
COUNTERSHAFT
BEARING
