FUEL SYSTEM (Programmed Fuel Injection)
6-61
ENGINE STOP RELAY
REMOVAL/INSTALLATION

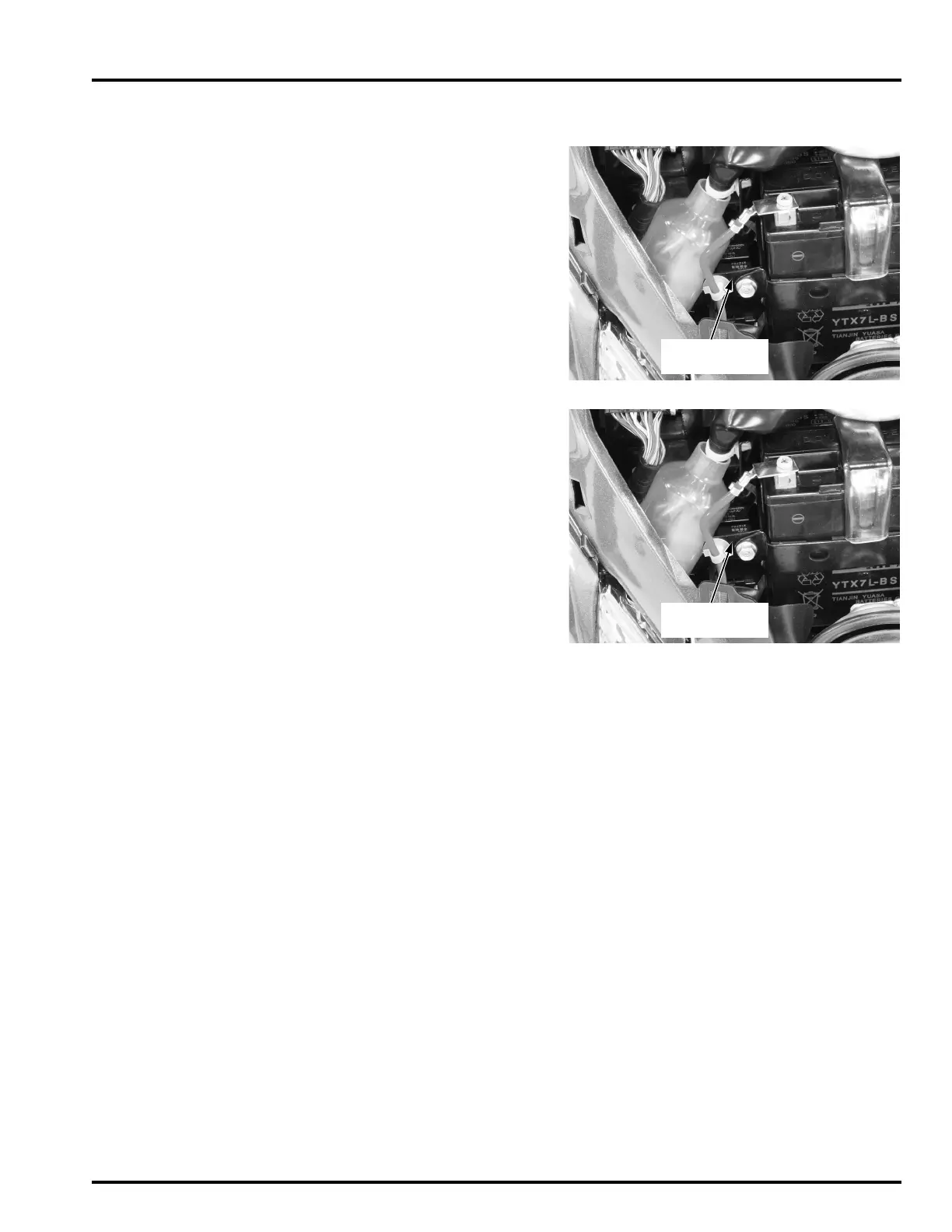

Remove the front center cover (page 3-4).
Remove the engine stop relay from the relay con-
nector.
Installation is in the reverse order of removal.
OPERATION INSPECTION
Remove the front center cover (page 3-4).
Turn the ignition switch "ON".
The engine stop relay coil is normal if the engine
stop relay clicks.
If you hear the engine stop relay "CLICK", but mal-
function indicator lamp (MIL) stays off and fuel
pump does not operate for a few seconds, inspect
the following:
– Engine stop relay continuity inspection (page 6-
62)
– Engine stop relay switch line inspection (page 6-
62)
• If the above inspections and the ECM power/
ground circuit (page 6-19) are normal, replace
the ECM with a new one, and recheck.
If you do not hear the relay "CLICK", inspect the fol-
lowing:
– Engine stop relay coil line inspection (page 6-63)
– Engine stop relay continuity inspection (page 6-
62)
• If the above inspections are normal, inspect the
bank angle sensor (page 6-52).
