FUEL SYSTEM (Programmed Fuel Injection)
6-41

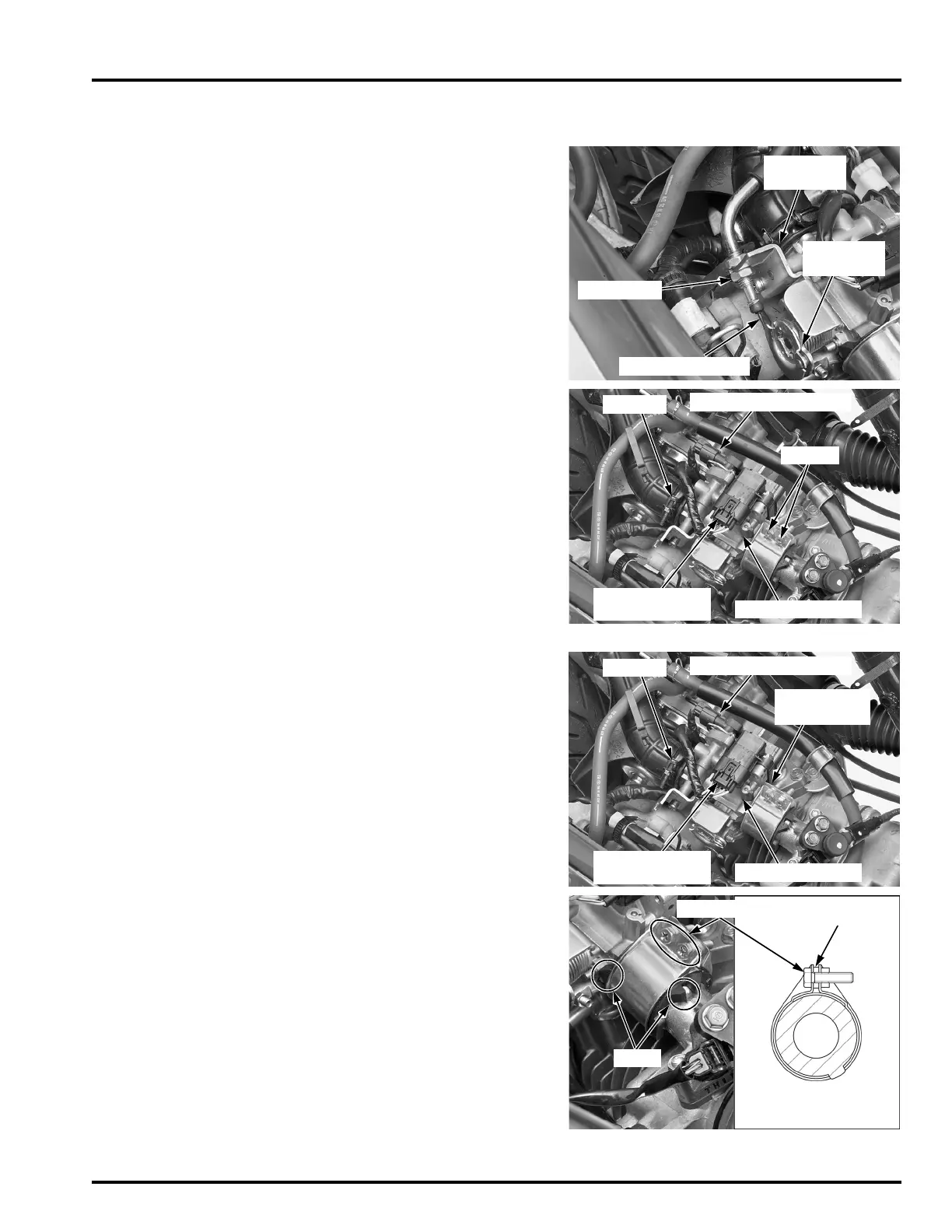

THROTTLE BODY
REMOVAL
Remove the luggage box (page 3-8).
Loosen the throttle cable lock nut.
Release the throttle cable from the cable bracket.
Disconnect the throttle cable from the throttle drum.
Disconnect the sensor unit 5P connector and IACV
4P connector.
Loosen the connecting hose band screw and insula-
tor band bolts.
Remove the throttle body.
• Seal the intake pipe with a shop towel or cover it
with a piece of tape to prevent any foreign mate-
rial from dropping into the engine.
INSTALLATION
Install the throttle body between the connecting
hose and insulator band.
Connect the sensor unit 5P connector and IACV 4P
connector.
Align the throttle body tab and intake pipe tab with
insulator band grooves.
Tighten the insulator band bolts until the band seats
on the collar as shown.
Be careful not to
damage the threads
of throttle cable.
THROTTLE CABLE
THROTTLE
DRUM
LOCK NUT
CABLE
BRACKET
BOLTS
SENSOR UNIT
5P CONNECTOR
SCREW
IACV 4P CONNECTOR
THROTTLE BODY
INSULATOR
BAND
SENSOR UNIT
5P CONNECTOR
SCREW
IACV 4P CONNECTOR
THROTTLE BODY
To Next Page
