FUEL SYSTEM (Programmed Fuel Injection)
6-50

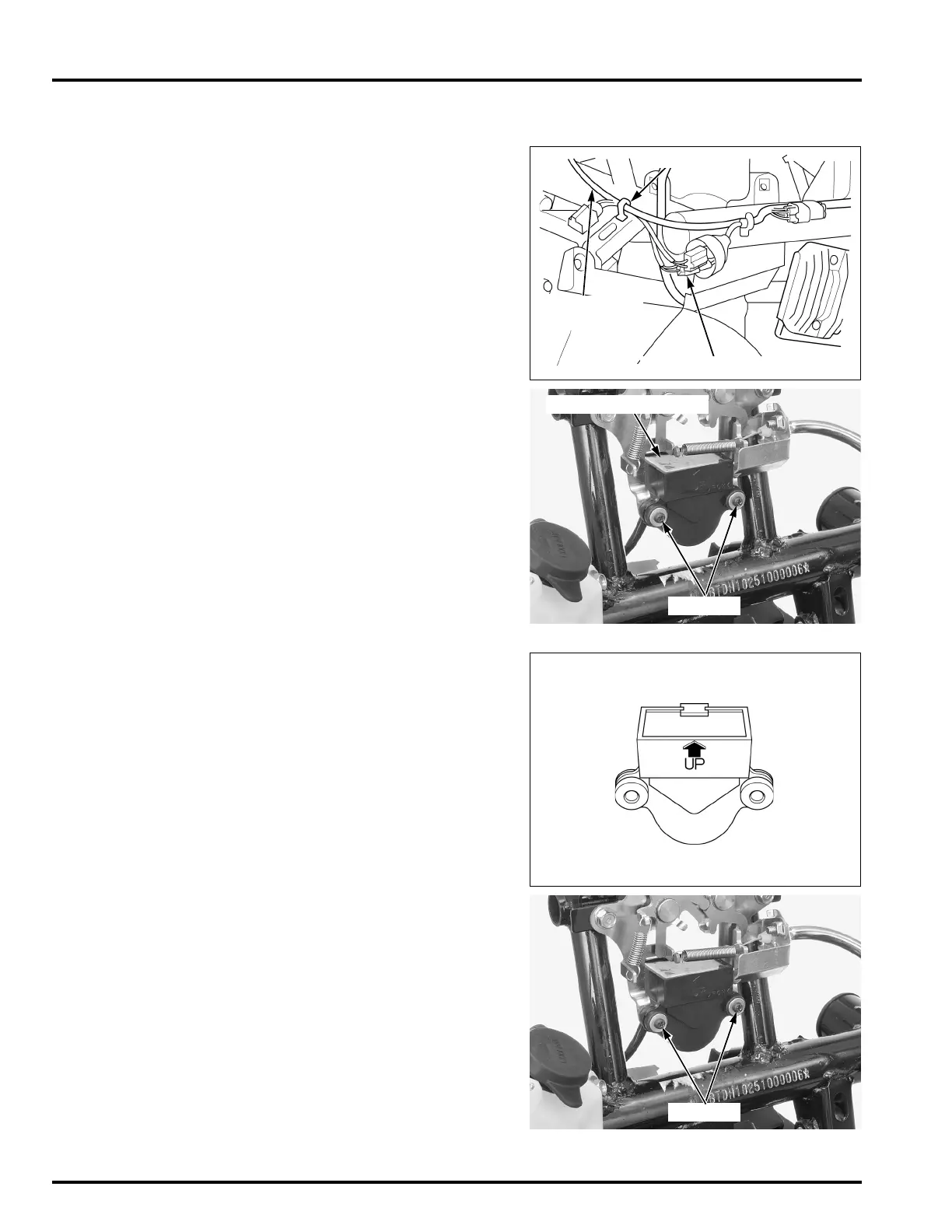

BANK ANGLE SENSOR
REMOVAL
Turn the ignition switch OFF.
Remove the body cover (page 3-9).
Disconnect the bank angle sensor 6P (Black) con-
nector and release the bank angle sensor wire from
the clamp.
Remove the two screws and bank angle sensor.
INSTALLATION
Install the bank angle sensor with its “UP” mark fac-
ing up.
Install and tighten the two screws to the specified
torque.
6P (Black) CONNECTOR
CLAMP
BANK ANGLE
SENSOR WIRE
TORQUE: 1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)
