FRAME/BODY PANELS/EXHAUST SYSTEM
3-9

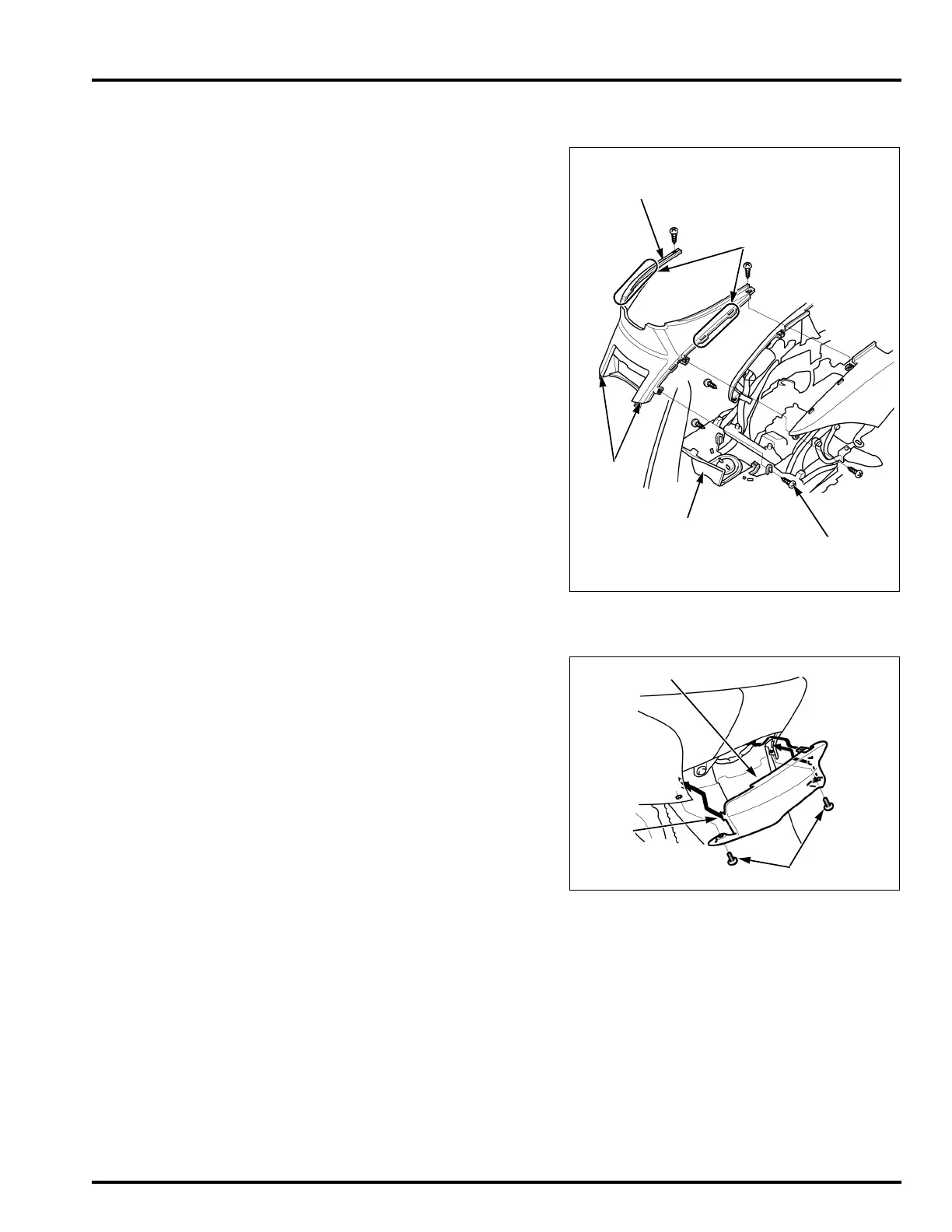

FRONT BODY COVER
REMOVAL/INSTALLATION
Remove the following:
– Side body cover (page 3-4)
– Luggage box (page 3-8)
Open the fuel lid.
Remove the six screws.
Release the four slots of the front body cover from
the tabs by slightly pulling it lowered.
Release the two tabs of the front body cover from
the slots, then remove the front body cover.
Installation is in the reverse order of removal.
BODY COVER
REMOVAL/INSTALLATION
Remove the front body cover (page 3-9).
Remove the screws.
Release the tabs and remove the rear lower body
cover.
SCREWS
SLOTS
FRONT BODY
COVER
TABS
FUEL LID
SCREWS
TABS
REAR LOWER BODY COVER
