FRAME/BODY PANELS/EXHAUST SYSTEM
3-6

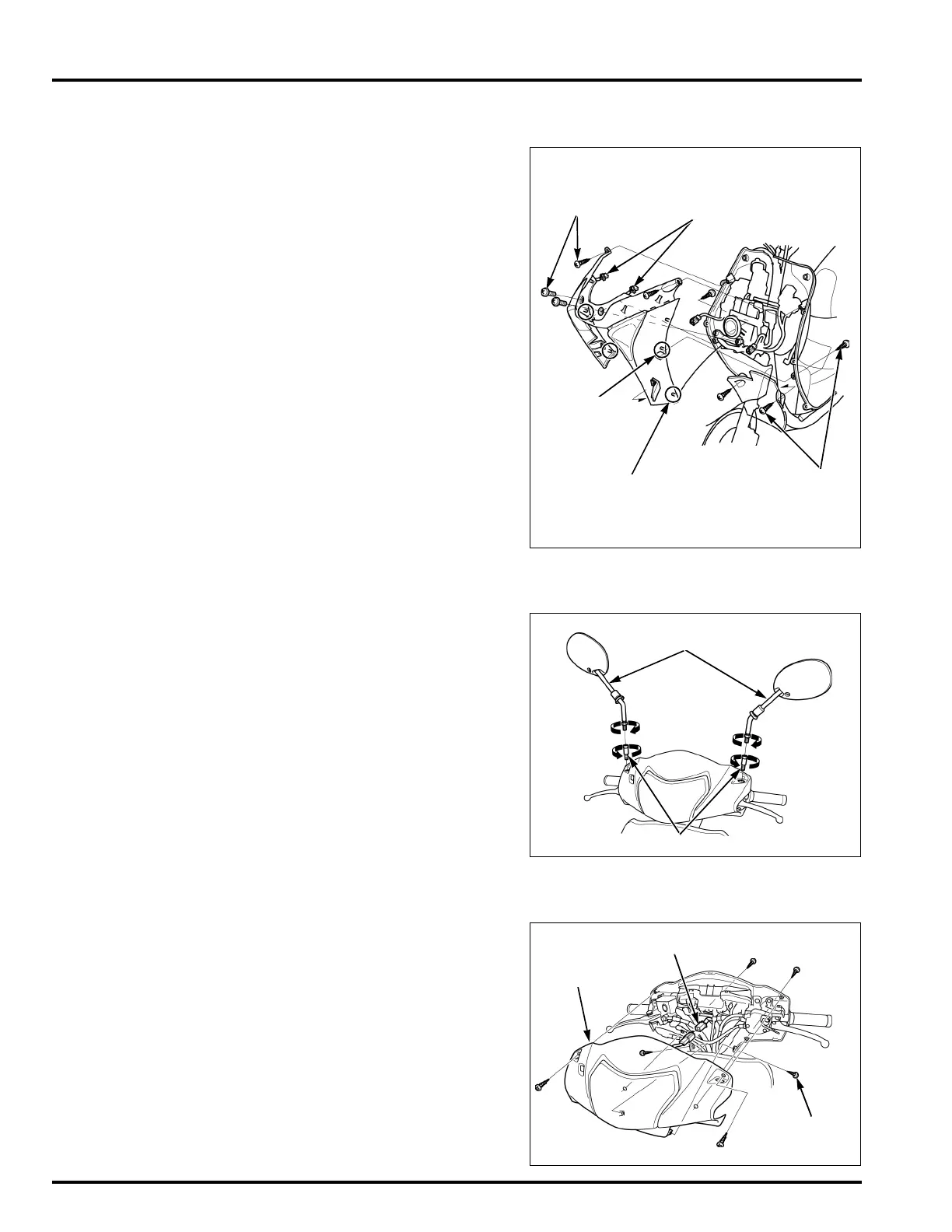

FRONT COVER
REMOVAL/INSTALLATION
Remove the following:
– Front center cover (page 3-4)
– Floor panel side cover (page 3-5)
Remove the following:
– Four screws from the front upper side
– Two screws from the front lower side
– Two screws from the rear side
Unhook the four bosses by slightly spreading the
front cover, remove the front cover and disconnect
the front turn signal light 2P connectors.
Installation is in the reverse order of removal.
REAR VIEW MIRROR
REMOVAL/INSTALLATION
Remove the adapters and rear view mirrors.
Installation is in the reverse order of removal.
FRONT HANDLEBAR COVER
REMOVAL/INSTALLATION
Remove the rear view mirrors (page 3-6).
Remove the following:
– Two screws from the front side
– Two screws from the rear side
– Two screws from the both side
Remove the handlebar cover.
Disconnect the headlight 4P connector.
Installation is in the reverse order of removal.
SCREWS
SCREWS
CONNECTORS
FRONT COVER
BOSSES
SCREWS
4P CONNECTOR
FRONT
HANDLEBAR
COVER
To Next Page
