BRAKE SYSTEM
17-20
Install the set rubber to the lock lever and tighten
the bracket cover special screw.
Adjust the following:
– Connecting cable (page 17-15)
– Rear brake lever freeplay (page 4-17)
Check the following:
– Brake lock lever operation (page 4-20)
– Rear brake light operation (page 4-20)
Install the front handlebar cover (page 3-6).

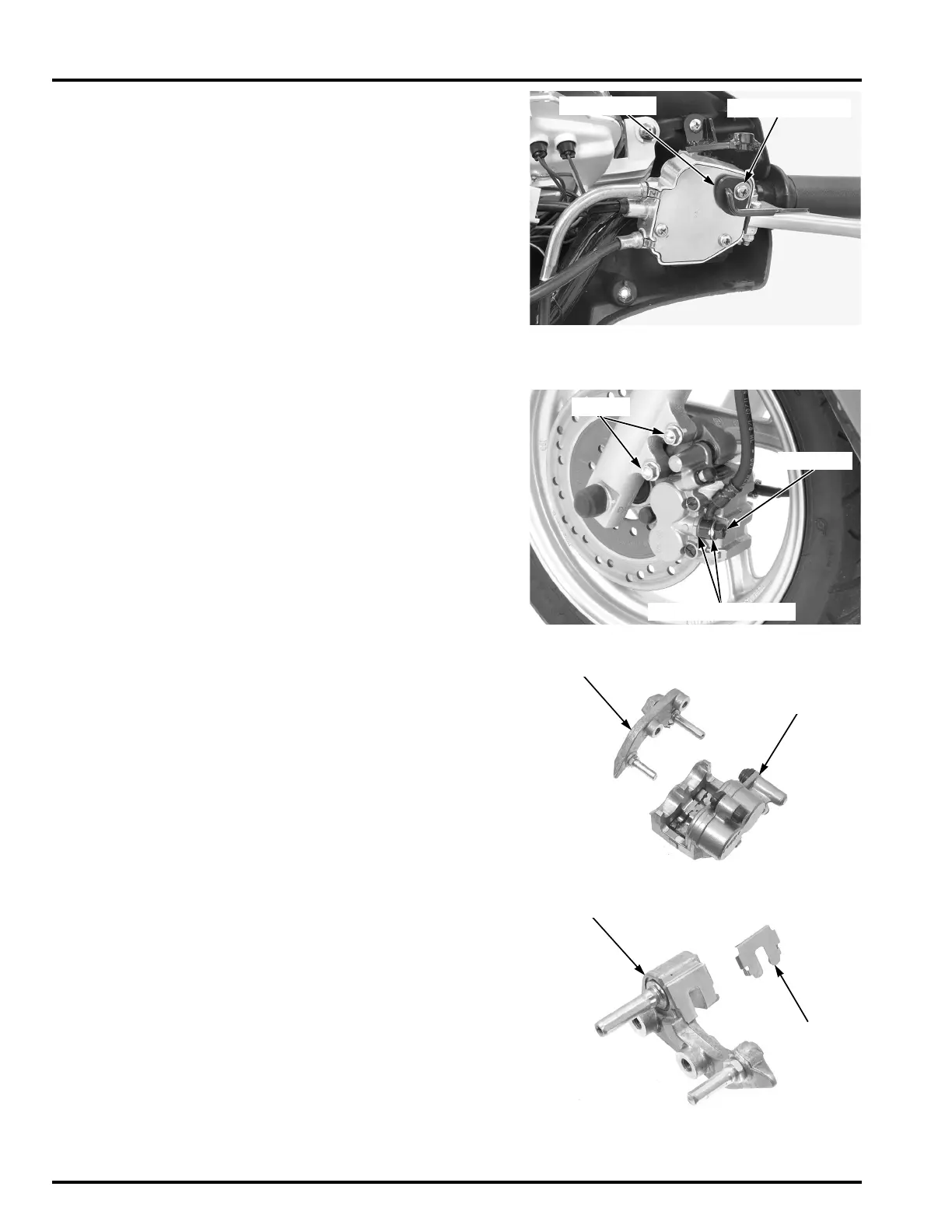

FRONT BRAKE CALIPER
REMOVAL
Drain the brake fluid (page 17-5).
Disconnect the brake hose from the brake caliper by
removing the oil bolt and sealing washers.
Remove the brake pads (page 17-8).
Remove two caliper mounting bolts and the caliper.
DISASSEMBLY
Remove the caliper bracket from the brake caliper.
Remove the retainer from the caliper bracket.
TORQUE: 4.2 N·m (0.43 kgf·m, 3.1 lbf·ft)
OIL BOLT
SEALING WASHERS
BOLTS
CALIPER BRACKET
BRAKE CALIPER
CALIPER BRACKET
RETAINERRETAINER
