Honda NHX110 User Manual

FINAL REDUCTION
12-12

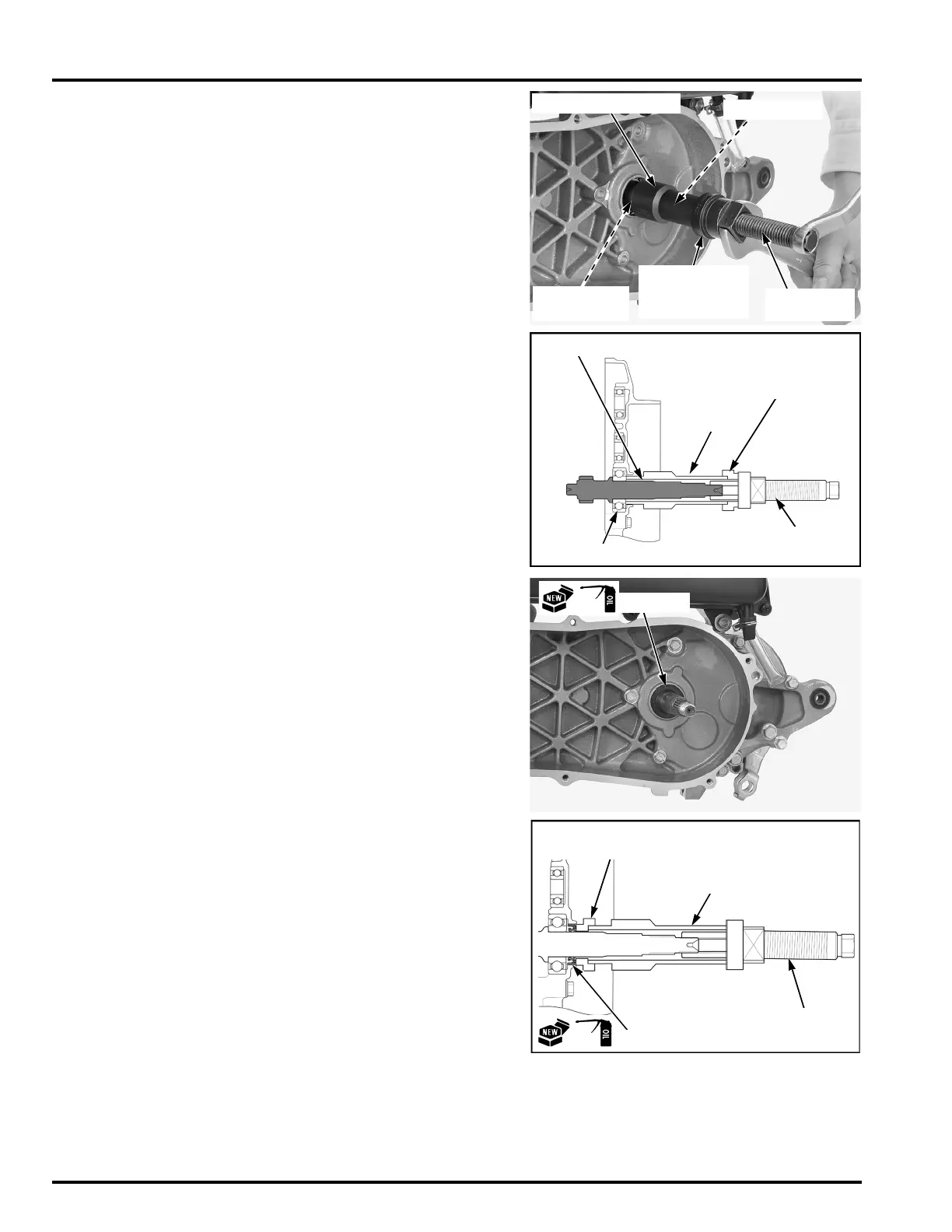

Install the driveshaft into the bearing.
Position the assembly collar on the driveshaft bear-
ing inner race and pull the drive shaft into the bear-
ing until it is fully seated.
Apply engine oil to a new driveshaft oil seal lip.
Install the driveshaft oil seal with its marked side fac-
ing up until it is flush with the left crankcase, using
the special tools.
TOOLS:
Assembly shaft 07965-1660200
Assembly collar 07965-GM00100
Assembly collar attachment 07965-GM00200
ASSEMBLY
SHAFT
ASSEMBLY COLLAR
BEARING
INNER RACE
DRIVESHAFT
ASSEMBLY
COLLAR
ATTACHMENT
DRIVESHAFT BEARING
ASSEMBLY
SHAFT
ASSEMBLY
COLLAR
ASSEMBLY
COLLAR
ATTACHMENT
DRIVESHAFT
Do not insert the oil
seal too far.
TOOLS:
Assembly shaft 07965-1660200
Assembly collar 07965-GM00100
Assembly collar attachment 07965-GM00200
OIL SEAL
ASSEMBLY
SHAFT
ASSEMBLY COLLAR
ATTACHMENT
ASSEMBLY
COLLAR
OIL SEAL
