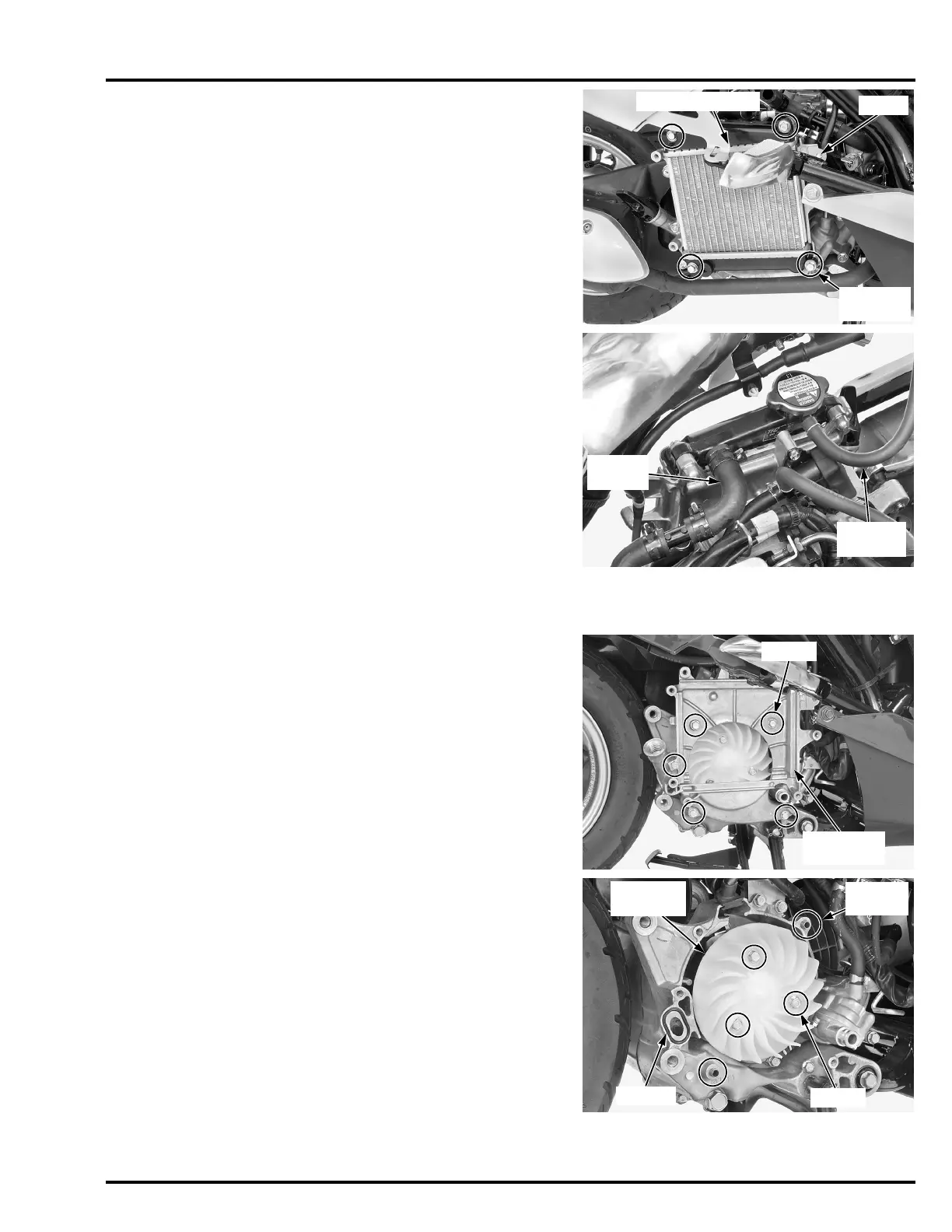

COOLING SYSTEM
7-11
Be careful not to
damage the radiator
fins.
Install the four radiator mounting bolts/washer, and
tighten the bolts.
Install the spark plug wire band boss from the radia-
tor base.
Connect the siphon hose and water hose to the radi-
ator.
Fill and bleed the cooling system (page 7-8).
After installation, make sure the coolant does not
leak.
Install the following:
– Luggage box (page 3-8)
– Right side body cover (page 3-4)
COOLING FAN
REMOVAL
Remove the following:
– Oil filler cap/dipstick (page 4-10)
– Exhaust pipe/muffler (page 3-13)
– PCV solenoid valve (page 6-58)
– Radiator (page 7-10)
Remove the bolts and radiator base.
Remove the following:
– O-ring
– Dowel pins
– Three bolts
– Cooling fan
BOLTS/
WASHER
RADIATOR BASE
BOSS
COOLING
FAN
BOLTS
O-RING
DOWEL
PINS
