LIGHTS/METERS/SWITCHES
21-13

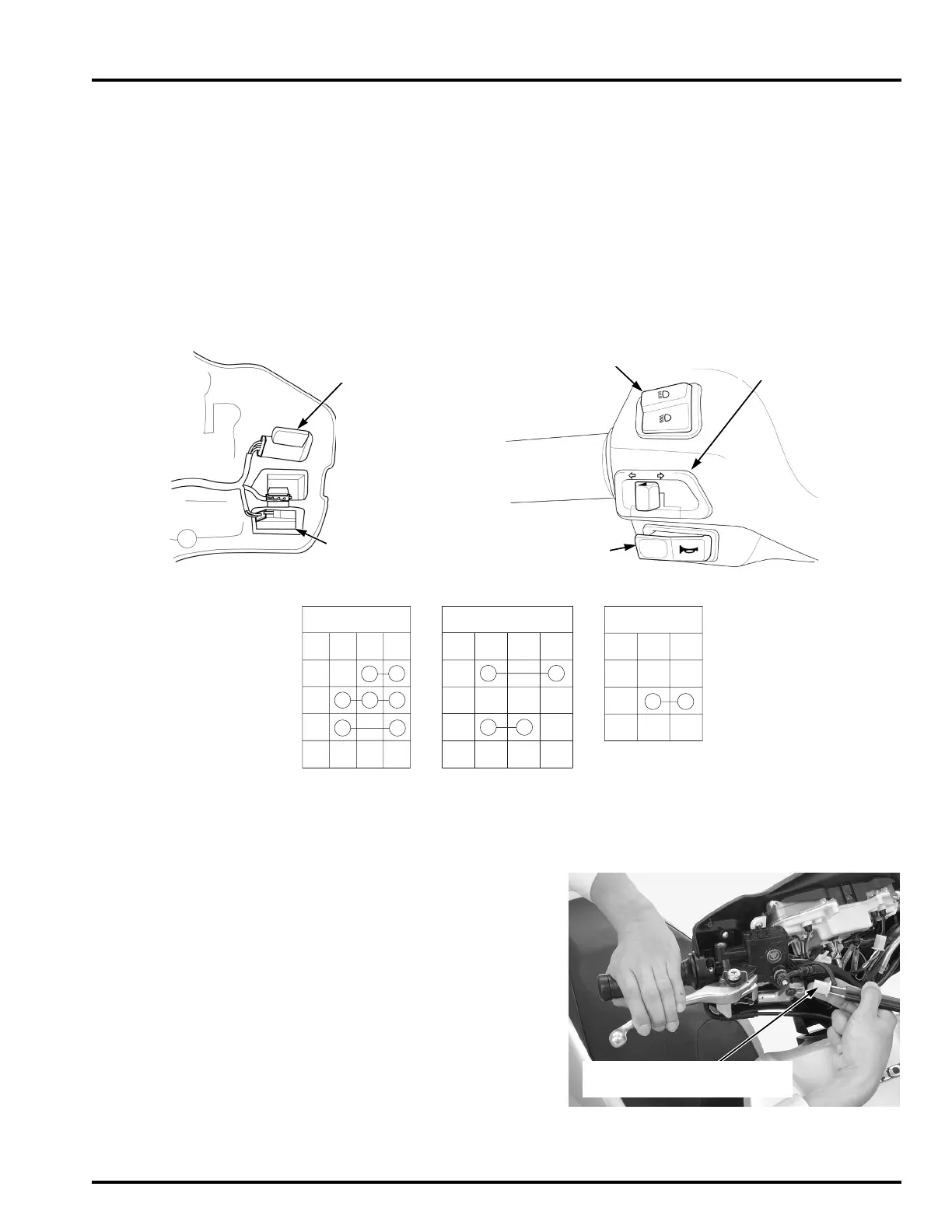

LEFT HANDLEBAR SWITCH
INSPECTION
Remove the front handlebar cover (page 3-6).
Disconnect the following:
– Dimmer switch 3P connector
– Turn signal switch 3P (Red) connector
– Horn switch 3P (Black) connector
Check for continuity between the wire terminals of
the dimmer switch, turn signal switch and horn
switch connector in each switch position.
Continuity should exist between the color coded wires as follows:
BRAKE LIGHT SWITCH
FRONT
Remove the front handlebar cover (page 3-6).
Disconnect the front brake light switch 3P connector
and check for continuity of the switch side.
There should be continuity with the front brake
lever squeezed, and there should be no continuity
when the front brake lever is released.
HO
BAT
HI
LO
HL
LO
N
HI
R
L
W
N
WL WR
FREE
PUSH
COLOR Lg Bl/Br
COLOR
COLOR
Gr O Lb
W Bl/RBu
HORN SWITCH
TURN SIGNAL SWITCH
DIMMER SWITCH
TURN SIGNAL
SWITCH 3P (Red)
CONNECTOR
DIMMER SWITCH
3P CONNECTOR
HORN SWITCH 3P
(Black) CONNECTOR
TURN SIGNAL
SWITCH
DIMMER SWITCH
HORN SWITCH
CONNECTION: Green/Yellow – Black/Brown
FRONT BRAKE LIGHT SWITCH
3P CONNECTOR
