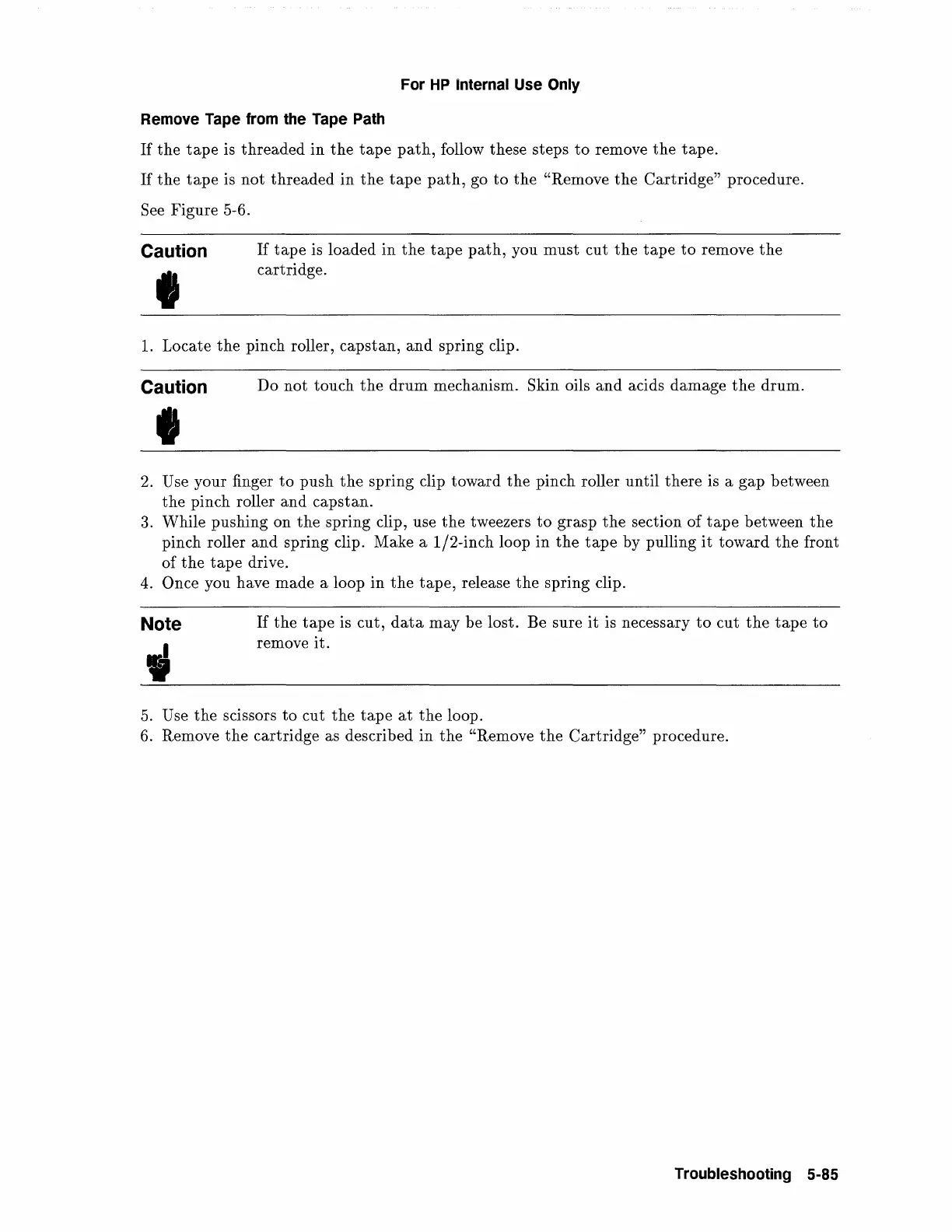

Remove Tape from the Tape Path
If the tape is threaded in the tape path, follow these steps to remove the tape.
If the tape is not threaded in the tape path, go to the "Remove the Cartridge" procedure.
See Figure 5-6.
Caution
'
If tape is loaded in the tape path, you must cut the tape to remove the
cartridge.
1. Locate the pinch roller, capstan, and spring clip.
Caution
Do not touch the drum mechanism. Skin oils and acids damage the drum.
'
2. Use your finger to push the spring clip toward the pinch roller until there is a gap between
the pinch roller and capstan.
3. While pushing on
the spring clip, use the tweezers to grasp the section of tape between the
pinch roller and spring clip. Make a 1/2-inch loop in the tape by pulling it toward the front
of
the tape drive.
4. Once you have made a loop in the tape, release the spring clip.
Note
"
If the tape is cut, data may be lost. Be sure it is necessary to cut the tape to
remove it.
5. Use the scissors to cut the tape at the loop.
6. Remove
the cartridge as described in the "Remove the Cartridge" procedure.
Troubleshooting 5-85
