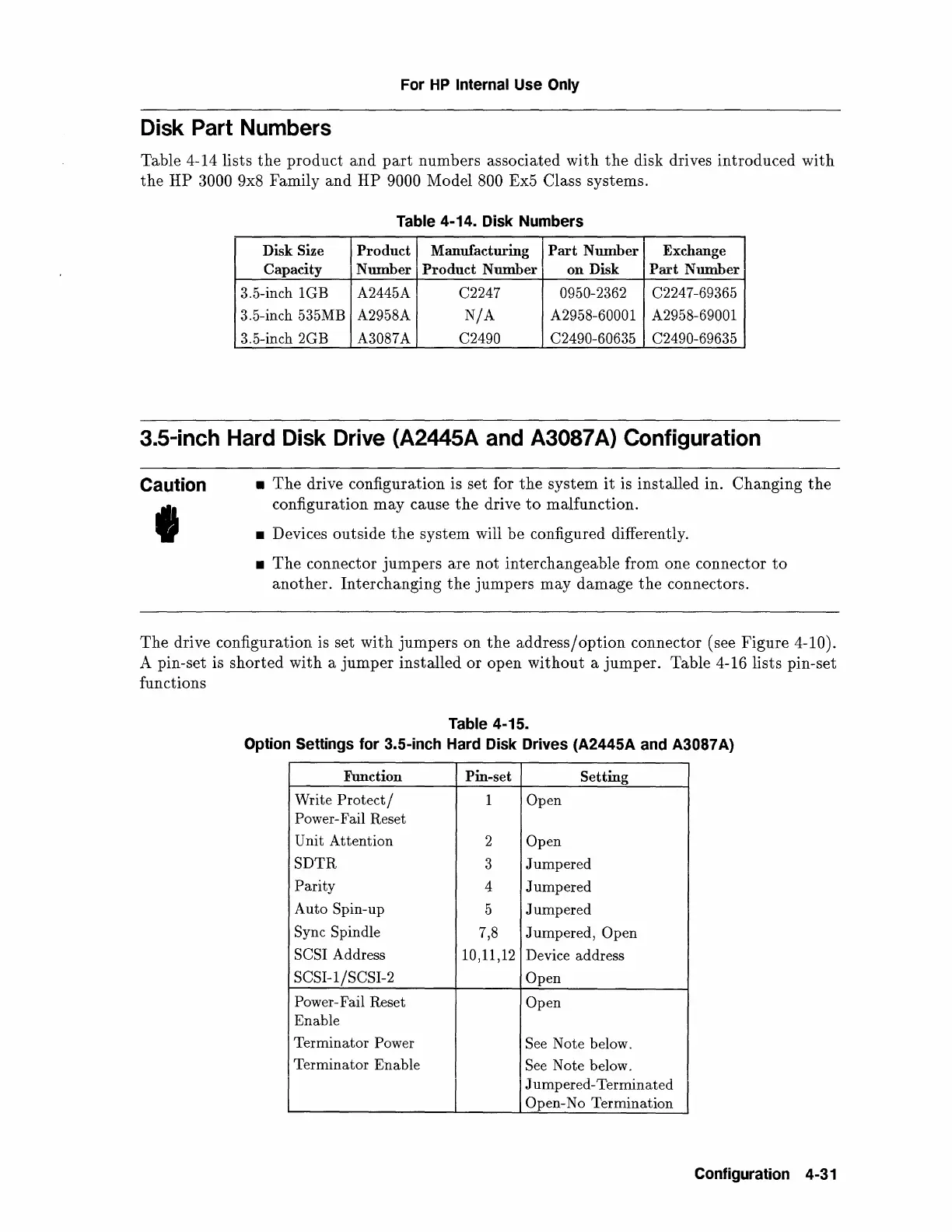

Disk Part Numbers
Table 4-14 lists
the
product
and
part
numbers associated
with
the
disk drives introduced
with
the
HP
3000 9x8 Family
and
HP
9000 Model 800 Ex5 Class systems.
Table 4-14. Disk Numbers
Disk Size
Product
Manufacturing
Part
Number
Exchange
Capacity
Number
Product
Number
on
Disk
Part
Number
3.5-inch 1GB A2445A C2247 0950-2362 C224 7-69365
3.5-inch 535MB A2958A
N/A
A2958-60001 A2958-69001
3.5-inch 2GB A3087A C2490 C2490-60635 C2490-69635
3.5-inch Hard Disk Drive (A2445A and A3087 A) Configuration
Caution
I
•
The
drive configuration is set for
the
system
it
is installed in. Changing
the
configuration
may
cause
the
drive
to
malfunction.
• Devices outside
the
system will
be
configured differently.
•
The
connector
jumpers
are
not
interchangeable from one connector
to
another. Interchanging
the
jumpers
may
damage
the
connectors.
The
drive configuration is set
with
jumpers
on
the
address/option
connector (see Figure 4-10).
A pin-set is
shorted
with
a
jumper
installed or open
without
a
jumper.
Table 4-16 lists pin-set
functions
Table 4-15.
Option Settings for 3.5-inch Hard Disk Drives (A2445A and
A3087
A)
Function Pin-set
Setting
Write
Protect/
1 Open
Power-
Fail Reset
Unit Attention
2
Open
SDTR
3
Jumpered
Parity
4
Jumpered
Auto Spin-up
5
Jumpered
Sync Spindle
7,8 J umpered, Open
SCSI
Address
10,11,12
Device address
SCSI-1/SCSI-2
Open
Power-
Fail Reset
Open
Enable
Terminator
Power
See
Note below.
Terminator Enable
See Note below.
J umpered-Terminated
Open-No Termination
Configuration 4-31
