HP 3000 Series Handbook

For HP Internal Use Only

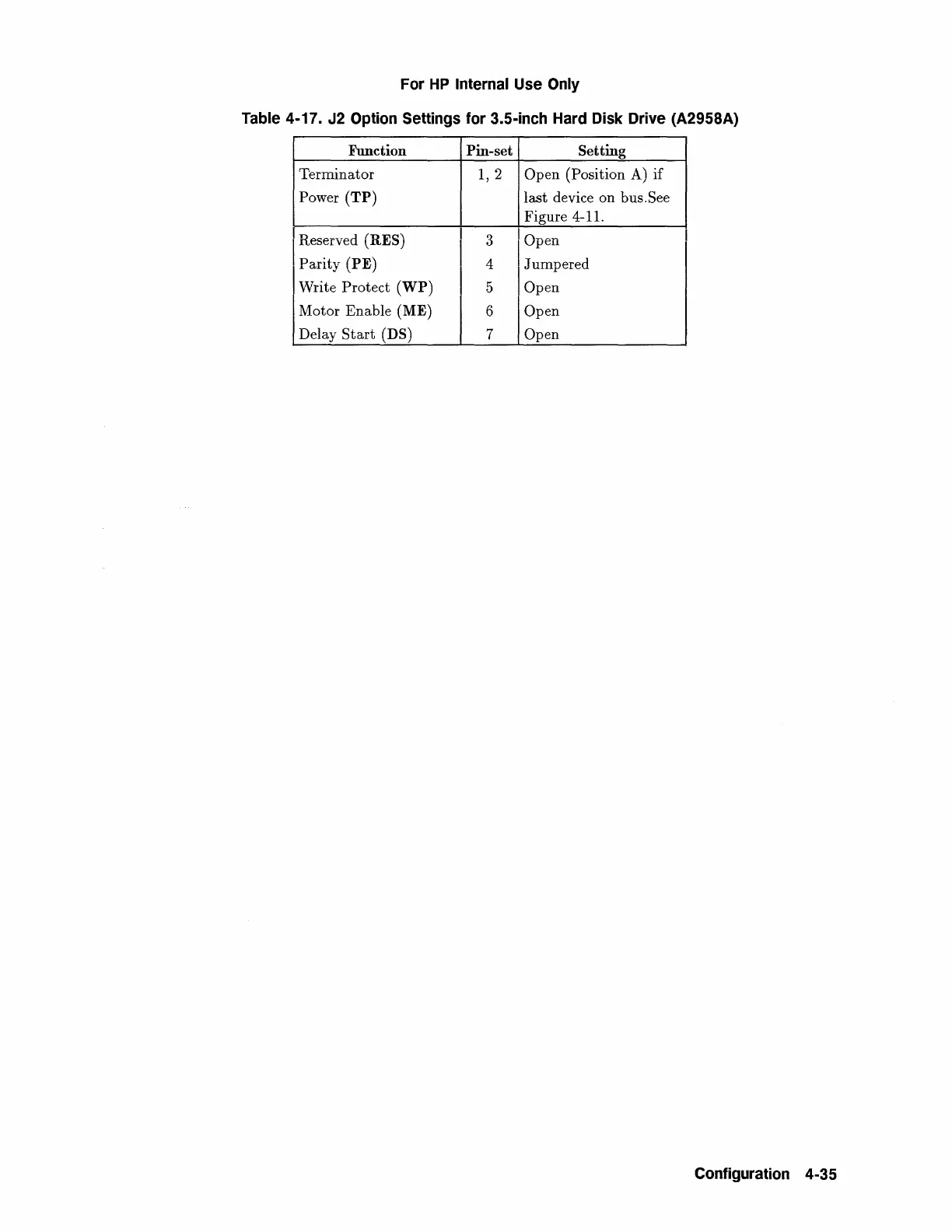

Table 4-17. J2 Option Settings for 3.5-inch Hard Disk Drive (A2958A)
Function Pin-set Setting
Terminator
1, 2
Open (Position A) if
Power
(TP) last device on bus.See
Figure 4-11.
1
Reserved (RES)
I Parity (PE)
I
4
I Jumpered
I Write Protect (WP)
I
5
Open
3 I Open
Motor Enable (ME)
6
Open
Delay Start (DS)
7
Open
Configuration 4-35
