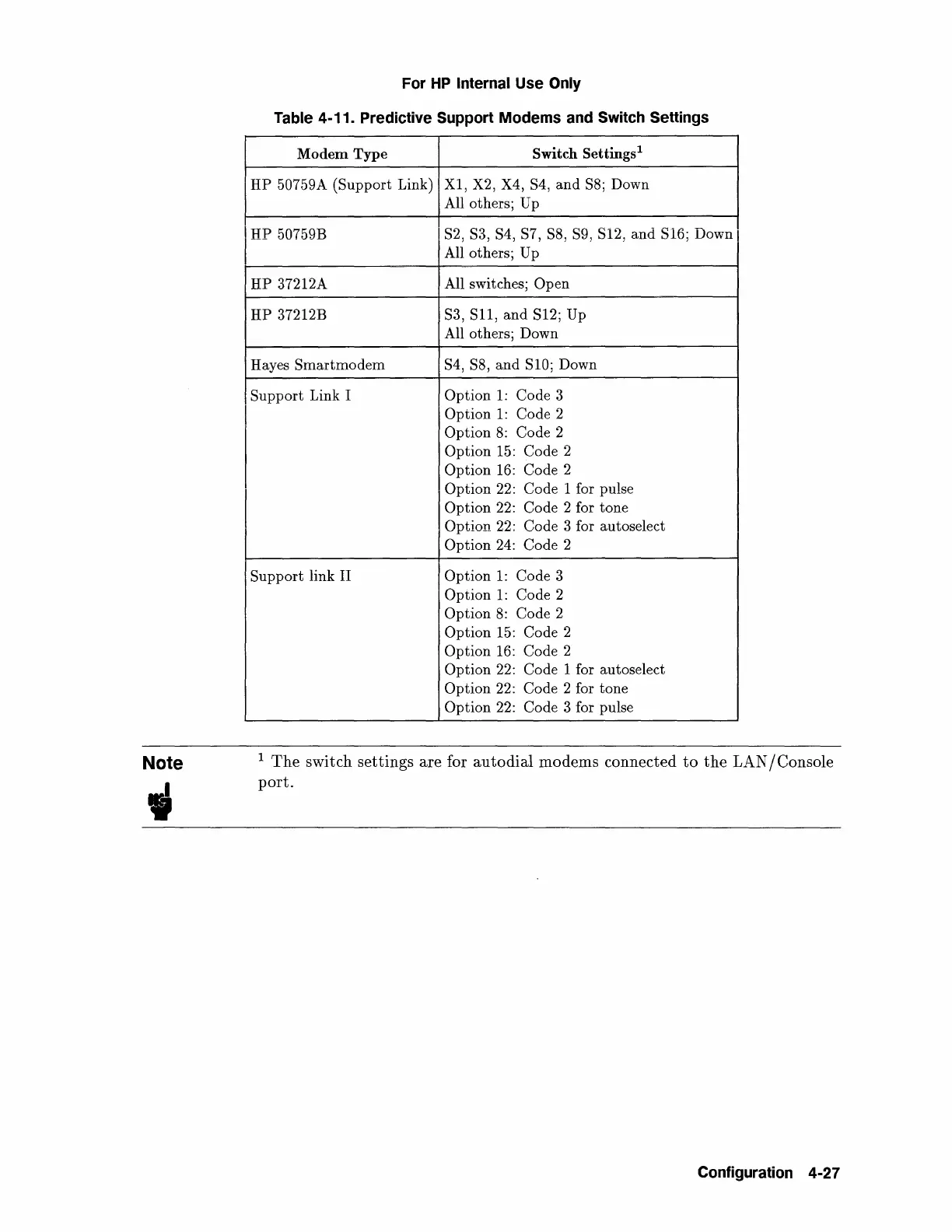

4-11. Predictive Support Modems and Switch Settings
Modem Type
Switch Settings
1
HP 50759A (Support Link)
X1, X2, X4,
S4, and
S8;
Down
All others;
Up
I
HP
50759B
S2, S3, S4, S7, S8, 89, 812, and
Sl6;
Down
All others;
Up
I
HP 37212A
All switches;
Open
HP
37212B
S3,
Sll,
and S12; Up
All others; Down
Hayes
Smartmodem
S4, S8, and S10; Down
Support Link I
Option
1:
Code 3
Option
1:
Code 2
Option
8:
Code 2
Option
15:
Code 2
Option
16:
Code 2
Option
22:
Code 1 for pulse
Option
22:
Code 2 for tone
Option
22:
Code 3 for autoselect
Option
24:
Code 2
Support link II Option
1:
Code 3
Option
1:
Code 2
Option
8:
Code 2
Option
15:
Code 2
Option
16:
Code 2
Option
22:
Code 1 for autoselect
Option
22:
Code 2 for tone
Option
22:
Code 3 for pulse
1
The
switch settings are for autodial modems connected
to
the
LAN /Console
port
.
Configuration 4-27
