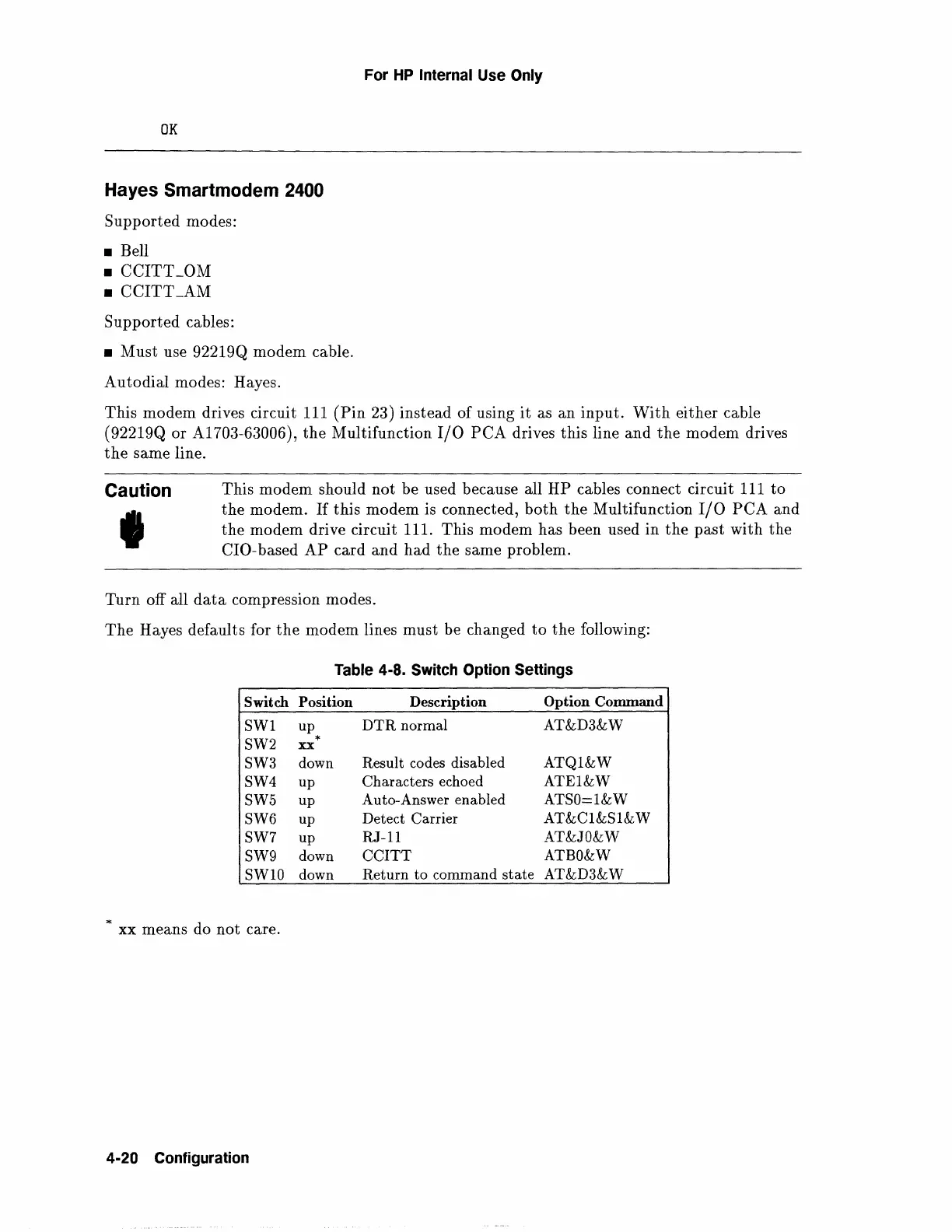

Hayes Smartmodem 2400
Supported modes:
• Bell
•
CCITT_OM
•
CCITT_AM
Supported cables:
• Must use 92219Q modem cable.
Autodial modes: Hayes.
For
HP
Internal Use Only
This modem drives circuit
111
(Pin
23) instead of using
it
as an input.
With
either cable
(92219Q or A1703-63006), the Multifunction
I/0
PCA
drives this line and
the
modem drives
the
same line.
Caution
I
This modem should not be used because all HP cables connect circuit
111
to
the modem.
If
this modem is connected,
both
the
Multifunction
I/0
PCA
and
the modem drive circuit 111. This modem has been used in
the
past
with the
CIO-based
AP
card and had the same problem.
Turn off all
data
compression modes.
The Hayes defaults for
the
modem lines must be changed
to
the following:
Table 4-8. Switch Option Settings
Switch Position
Description
Option Command
SWl
up
DTR
normal AT&D3&W
SW2
*
XX
SW3
down
Result codes disabled
ATQl&W
SW4
up
Characters echoed
ATEl&W
SW5
up
Auto-Answer enabled
ATSO=l&W
SW6
up Detect Carrier
AT&Cl&Sl&W
SW7
up RJ-11 AT&JO&W
SW9
down
CCITT
ATBO&W
SWlO
down
Return
to
command
state
AT&D3&W
* xx means do not care.
