For HP Internal Use Only

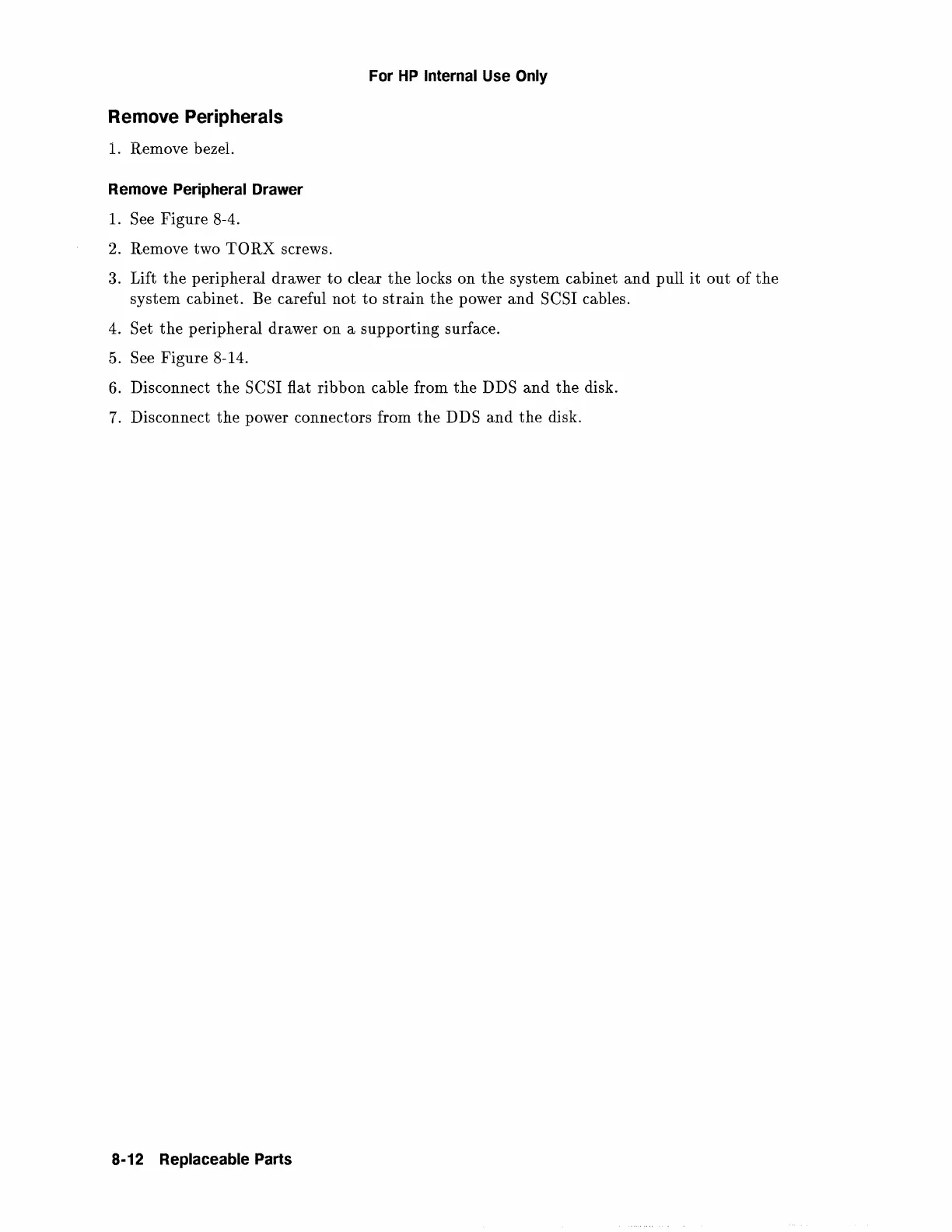

Remove Peripherals
1. Remove bezel.
Remove Peripheral Drawer
1. See Figure 8-4.
2. Remove two
TORX screws.
3. Lift
the peripheral drawer to clear the locks on the system cabinet and pull it out of the
system cabinet. Be careful not
to strain the power and SCSI cables.
4. Set the peripheral drawer on a supporting surface.
5.
See Figure 8-14.
6. Disconnect the SCSI flat ribbon cable from the DDS and the disk.
7. Disconnect the power connectors from the DDS and the disk.
8-12 Replaceable Parts
