For HP Internal Use Only

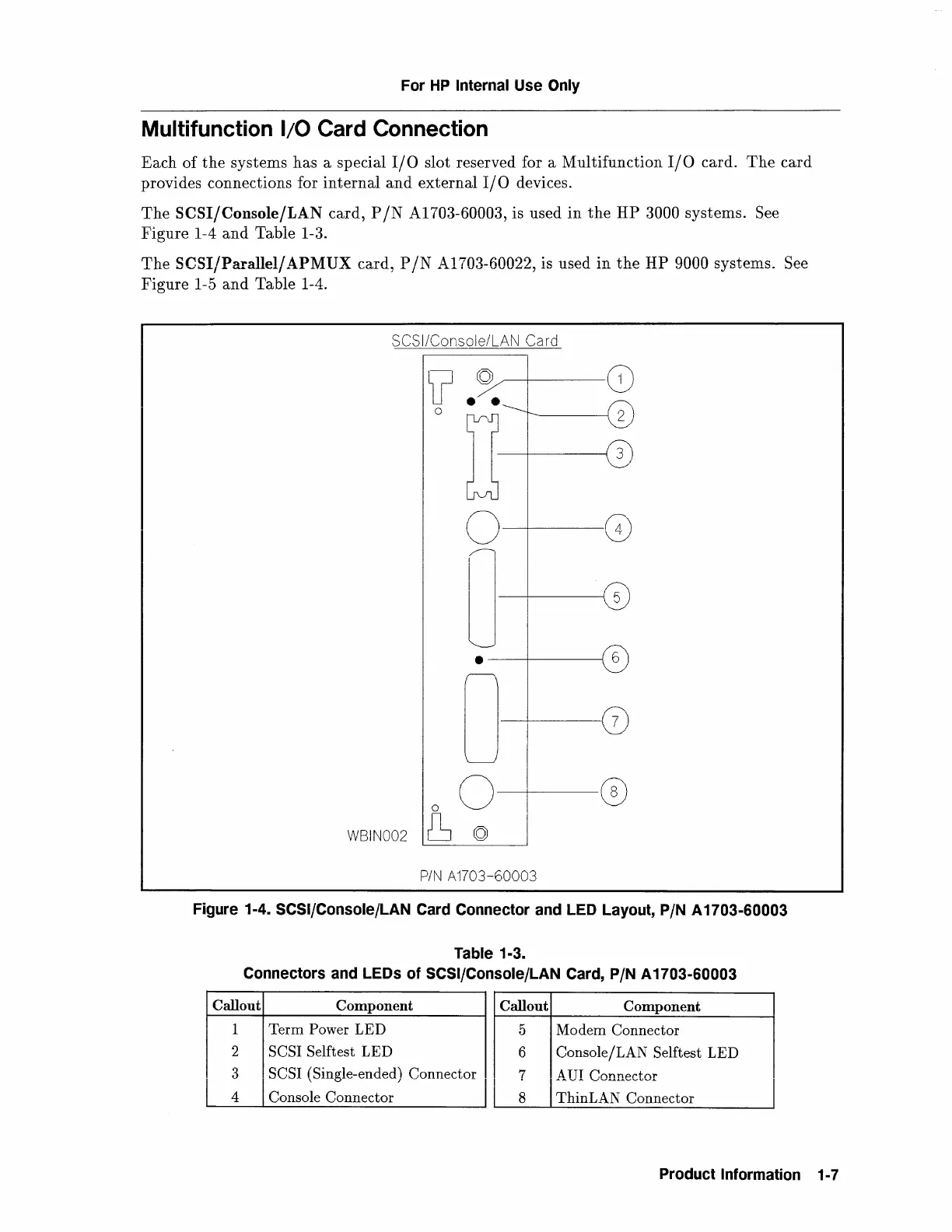

Multifunction 1;0 Card Connection
Each of the systems has a special I/0 slot reserved for a Multifunction I/0 card. The card
provides connections for internal and external I/ 0 devices.
The SCSI/Console/LAN card, P /N A1703-60003, is used in the HP 3000 systems. See
Figure 1-4 and Table 1-3.
The SCSI/Parallel/ APMUX card, P /N A1703-60022, is used in the HP 9000 systems. See
Figure 1-5 and Table 1-4.
SCSI/Console/LAN Card
WBIN002
0------~----0
[--+-----1 5
• -----+---___, 6
0 -t----------l 7
0 0--+--0
[S g
P/N A 1703-60003
Figure 1-4. SCSI/ConsolefLAN Card Connector and LED Layout, P JN A 1703-60003
Table 1-3.
Connectors and LEOs of SCSifConsolefLAN Card, P /N A 1703-60003
Callout Component
Callout
Component
1 Term Power LED
5
Modem Connector
2
SCSI Selftest LED
6
Console/LAN Selftest LED
3 SCSI (Single-ended) Connector
7 A UI Connector
4 Console Connector
8
ThinLAN Connector
Product Information 1-7
