Remove DC On/Off Switch
1. See Figure 8-27.
2. Using a pair of small needle-nose pliers, bend the four tabs on the switch retainer bracket
to a vertical position.
3. Lift the switch
out of the bracket.
4. Disengage
the cable from the cable retaining tabs on the right side of the cabinet.
5. Disconnect the DC On/Off cable from the power control module in the power supply.
Tab
LG200185_152

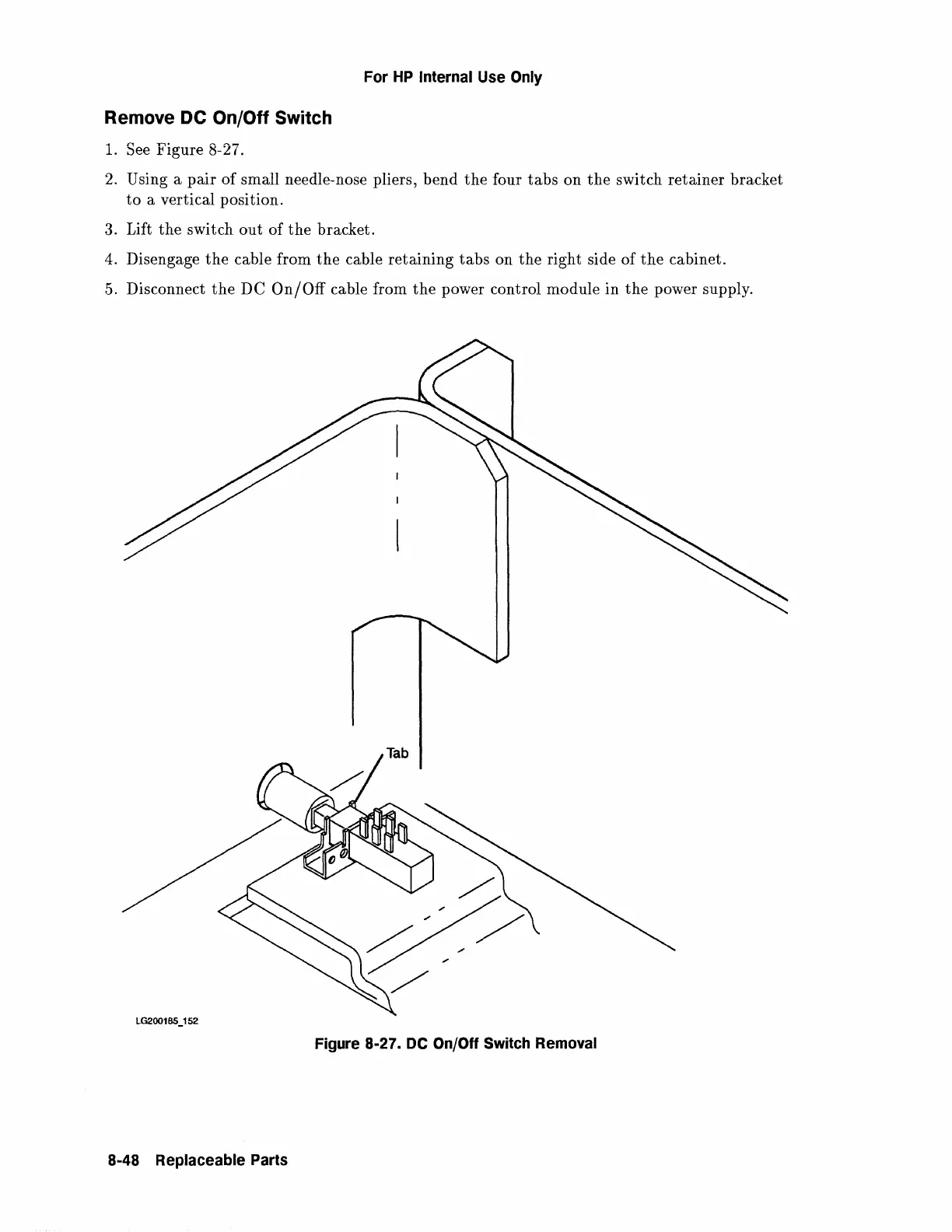

Figure 8-27. DC On/Off Switch Removal
8-48 Replaceable Parts
