HP 3000 Series Handbook

For HP Internal Use Only

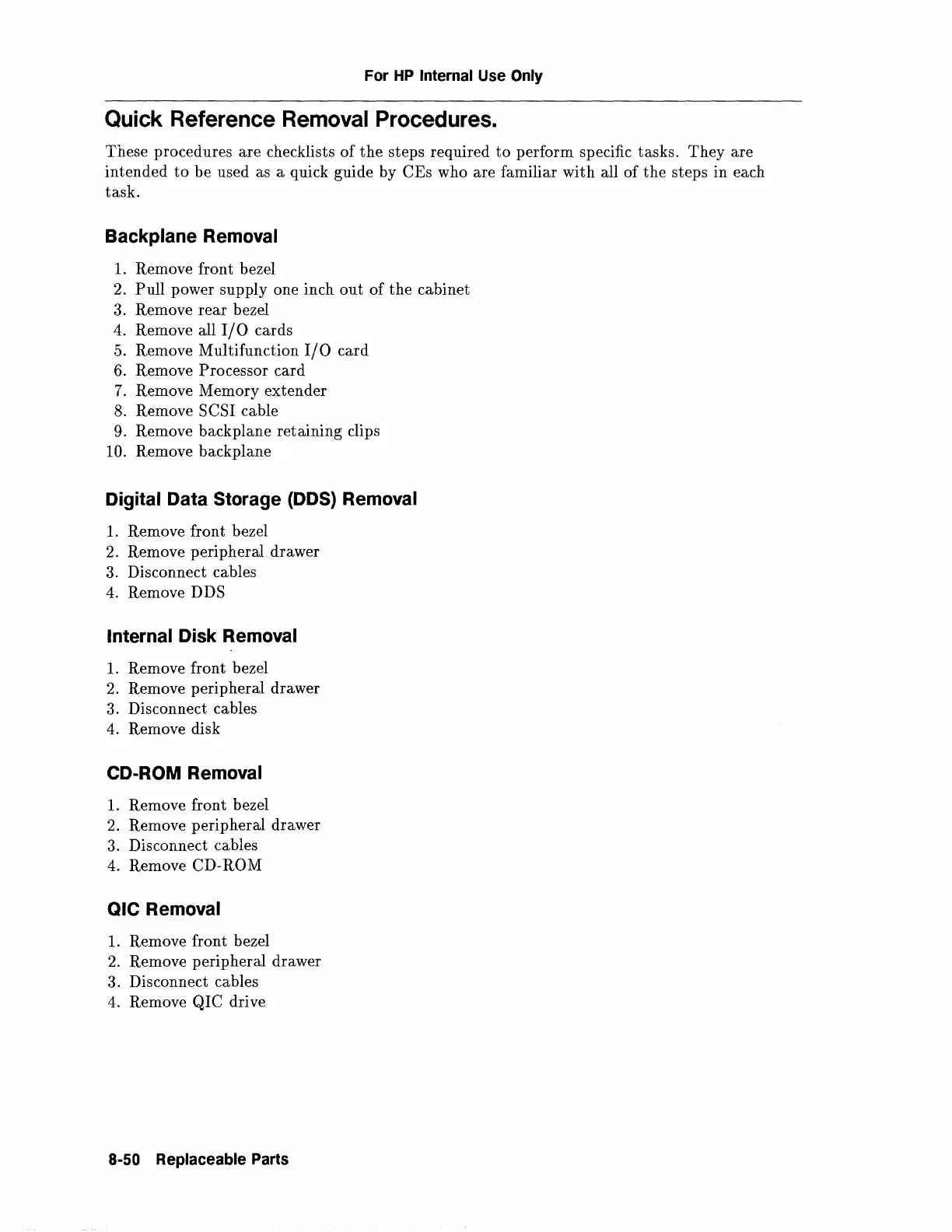

Quick Reference Removal Procedures.
These procedures are checklists of the steps required to perform specific tasks. They are
intended
to be used as a quick guide by CEs who are familiar with all of the steps in each
task.
Backplane Removal
1. Remove front bezel
2.
Pull power supply one inch out of the cabinet
3. Remove
rear bezel
4. Remove all I/ 0 cards
5. Remove Multifunction I/0 card
6. Remove Processor card
7. Remove Memory extender
8. Remove SCSI cable
9. Remove backplane retaining clips
10. Remove backplane
Digital Data Storage (DDS) Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove DDS
Internal Disk Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove disk
CD-ROM Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove CD-ROM
QIC Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove QIC drive
