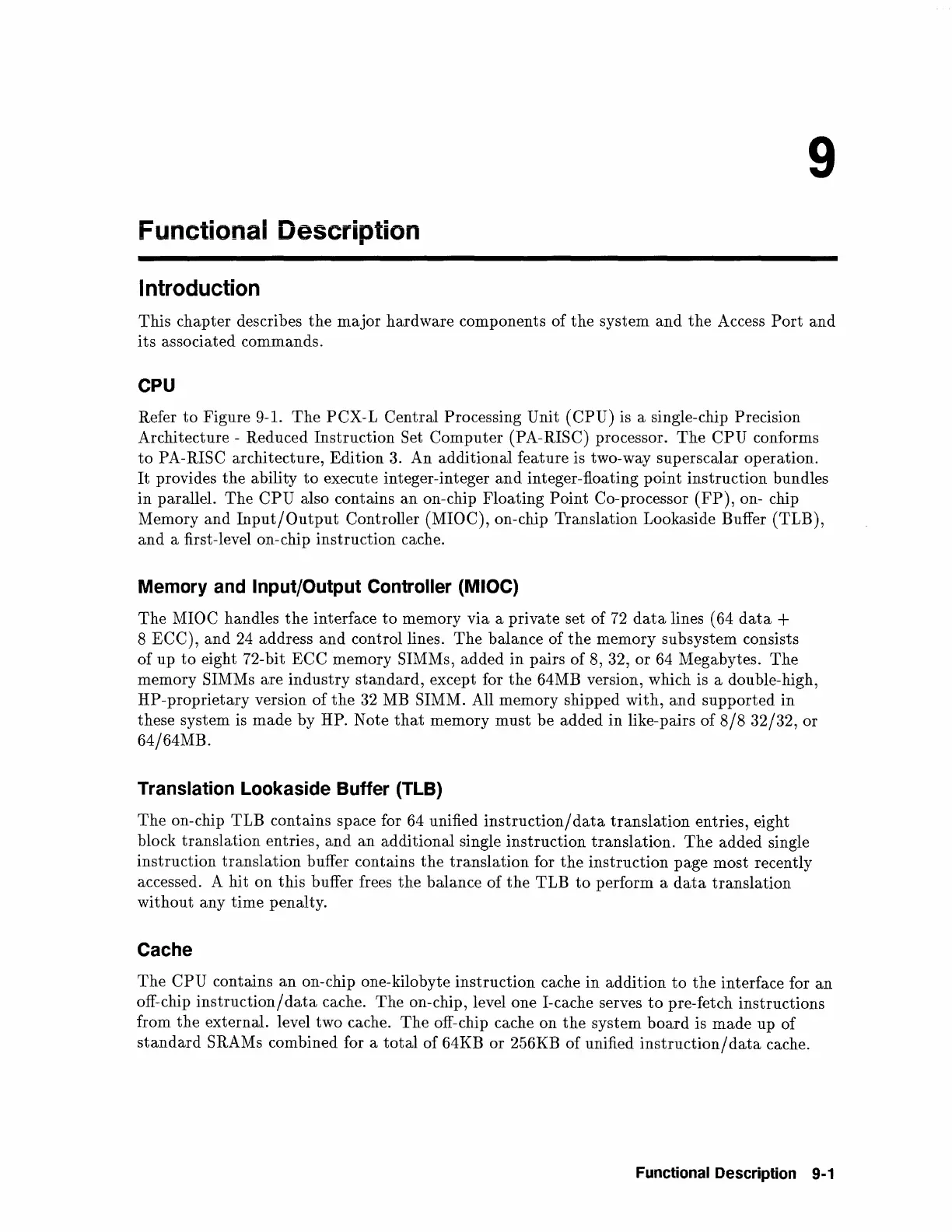

9
Functional Description
Introduction
This chapter describes
the
major
hardware components of the system
and
the
Access
Port
and
its
associated commands.
CPU
Refer
to
Figure 9-1.
The
PCX-L Central Processing Unit
(CPU)
is a single-chip Precision
Architecture-
Reduced Instruction Set Computer (PA-RISC) processor.
The
CPU
conforms
to
PA-RISC architecture, Edition 3. An additional feature is two-way superscalar operation.
It
provides the ability
to
execute integer-integer
and
integer-floating point instruction bundles
in parallel. The
CPU
also contains
an
on-chip Floating Point Co-processor
(FP),
on- chip
Memory and
Input/Output
Controller (MIOC), on-chip Translation Lookaside Buffer (TLB),
and a first-level on-chip instruction cache.
Memory and Input/Output Controller (MIOC)
The MIOC handles
the
interface
to
memory via a private set of
72
data
lines (
64
data
+
8
ECC),
and
24
address
and
control lines.
The
balance of
the
memory subsystem consists
of up
to
eight 72-bit
ECC
memory SIMMs, added in pairs of 8, 32, or
64
Megabytes. The
memory
SIMMs are
industry
standard,
except for
the
64MB version, which is a double-high,
HP-proprietary version
of
the
32MB
SIMM. All memory shipped with,
and
supported in
these system is made by
HP. Note
that
memory must be added in like-pairs of
8/8
32/32, or
64/64MB.
Translation Lookaside Buffer (TLB)
The on-chip TLB contains space for 64 unified
instruction/
data
translation entries, eight
block translation entries, and an additional single instruction translation.
The
added single
instruction translation buffer contains
the
translation for
the
instruction page most recently
accessed. A hit on this buffer frees the balance of
the
TLB
to
perform a
data
translation
without any time penalty.
Cache
The
CPU contains
an
on-chip one-kilobyte instruction cache in addition
to
the
interface for
an
off-chip
instruction/data
cache. The on-chip, level one I-cache serves
to
pre-fetch instructions
from the external. level two cache.
The
off-chip cache on
the
system
board
is made up of
standard
SRAMs combined for a
total
of 64KB or 256KB of unified
instruction/
data
cache.
Functional Description 9-1
