HP 3000 Series Handbook

Note
•
For HP Internal Use Only

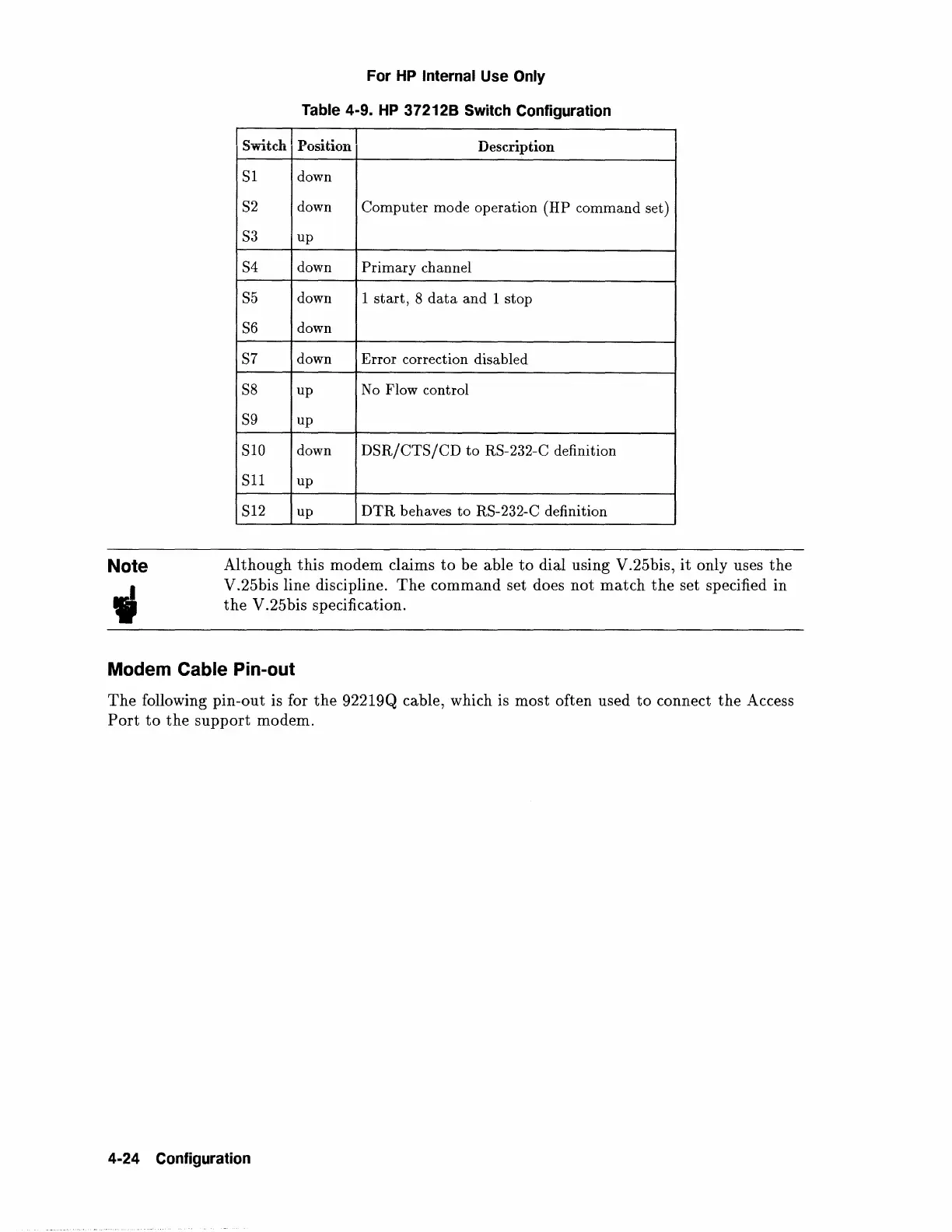

Table 4-9. HP 372128 Switch Configuration
Sw1tc
Posibo:n
Description
S1 down
S2
down
Computer mode operation
(HP command set)
S3
up
S4
down
Primary channel
S5
down
1
start, 8 data and 1 stop
S6
down
S7
down
Error correction disabled
S8
up
No Flow control
S9
up
S10
down
DSR/CTS/CD to RS-232-C definition
Sll
up
S12 up
DTR behaves to RS-232-C definition
Although this modem claims to be able to dial using V.25bis, it only uses the
V .25bis line discipline. The command set does not match the set specified in
the
V .25bis specification.
Modem Cable Pin-out
The following pin-out is for the 92219Q cable, which is most often used to connect the Access
Port to the support modem.
4-24 Configuration
