SCSI Address

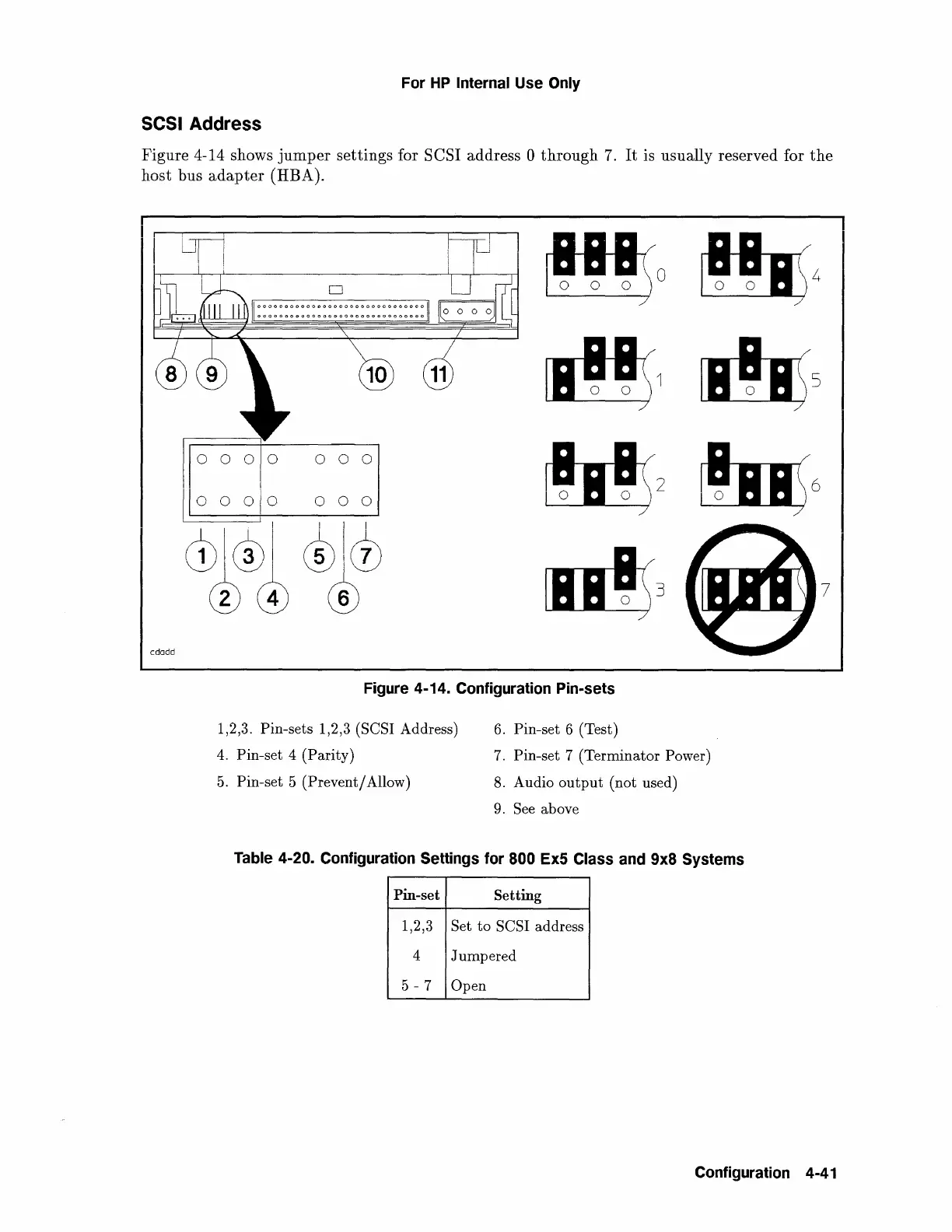

Figure 4-14 shows jumper settings for SCSI address 0 through 7. It is usually reserved for the
host bus adapter (HBA).
,,,,~0
Hr;4
/ /
llt1
lbSs
bt2
ms6
0 0
0
0
0
0 0
I
0 0
0
jo
0
0 0
cb\®~ ct~0
® 4 6
ut3
7
cdodd
Figure 4-14. Configuration Pin-sets
1,2,3. Pin-sets 1,2,3 (SCSI Address)
6. Pin-set 6 (Test)
4. Pin-set 4 (Parity)
7. Pin-set 7 (Terminator Power)
5. Pin-set 5 (Prevent/ Allow)
8. Audio output (not used)
9. See above
Table 4-20. Configuration Settings for 800 Ex5 Class and 9x8 Systems
Pin-set
Setting
1,2,3
Set to SCSI address
4 Jumpered
5-7
Open
Configuration 4-41
