Remove Left and Right Side Panels
1. See Figure 8-25.
2. Remove two chassis screws from the front of the right panel.
3. Remove two chassis screws from the rear of the right panel.
4. Lift the panel up and then lift away from the chassis.
5. Remove two chassis screws from the front of the left panel.
6. Remove two chassis screws from the rear of the left panel.
7. Lift the panel up and then lift away from the chassis.
Left
Side
Panel
LG200185 _ 025
----=-~~-=-~~I
Jur------------~~ ''
1
1
, 0°0000o
1
1
1
II II
I I I
1
1
:I lull
I I 11
I I I
1
1
I I I
1
1
I I I
1
1
I I I I
1
1
I I I II
II J II
II r II
II~ ,,
II I II
IJ I II
II I II
IJ I II
I I I II
I I I II
II J II
I I I II
I 1 I I
I I I I
I : I I
:~ ~I
~~ ~
I
I
I
Note: Screw hole locations indicated by arrows

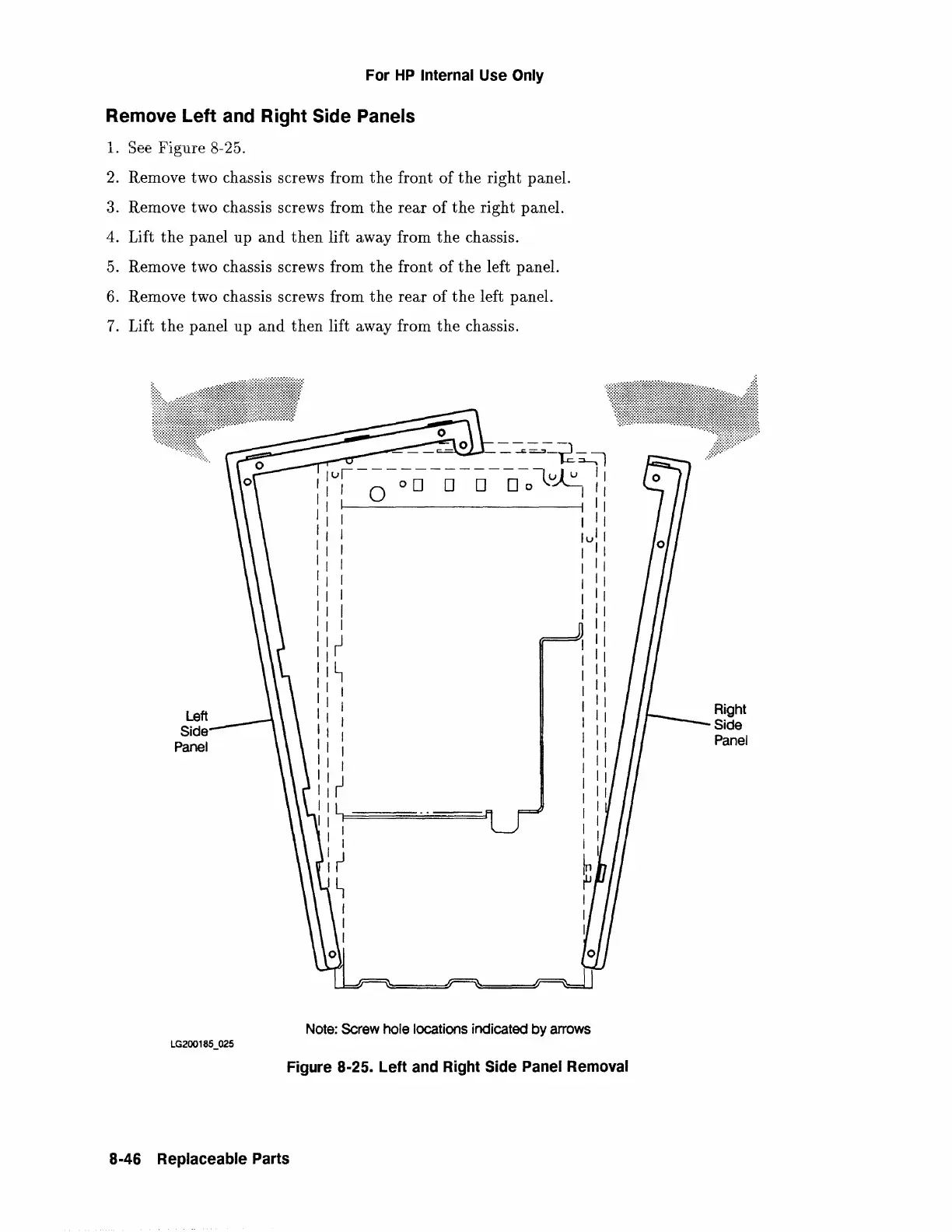

Figure 8-25. Left and Right Side Panel Removal
8-46 Replaceable Parts
Right
Side
Panel
