HP 3000 Series Handbook

For HP Internal Use Only
Table

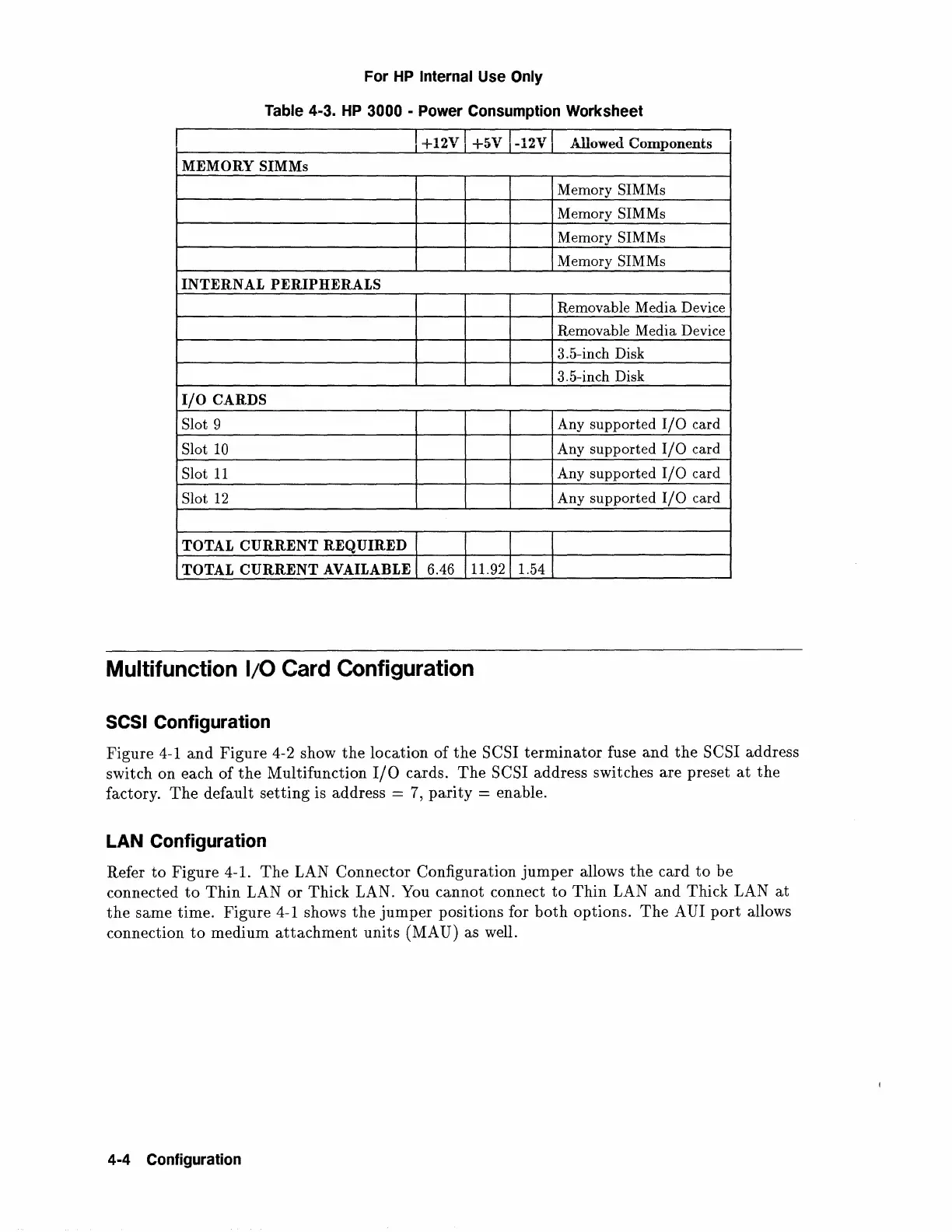

4-3. HP 3000 - Power Consumption Worksheet
i
..
j 1<1
j-~"'
i
a owea vomponents
MEMORY SIMMs
Memory SIMMs
Memory SIMMs
Memory SIMMs
Memory SIMMs
INTERNAL PERIPHERALS
Removable Media Device
Removable Media Device
3.5-inch Disk
3.5-inch Disk
I/0 CARDS
Slot
9
Any supported I/0 card
Slot 10
Any supported I/0 card
Slot 11
Any supported I/0 card
Slot 12
Any supported I/0 card
TOTAL CURRENT REQUIRED
TOTAL CURRENT AVAILABLE 6.46
11.92
1.54
Multifunction 1;0 Card Configuration
SCSI Configuration
Figure 4-1 and Figure 4-2 show the location of the SCSI terminator fuse and the SCSI address
switch on each
of the Multifunction I/0 cards. The SCSI address switches are preset at the
factory. The default setting is address = 7, parity = enable.
LAN Configuration
Refer to Figure 4-1. The LAN Connector Configuration jumper allows the card to be
connected
to Thin LAN or Thick LAN. You cannot connect to Thin LAN and Thick LAN at
the same time. Figure 4-1 shows the jumper positions for both options. The AUI port allows
connection
to medium attachment units (MAD) as well.
4-4 Configuration
