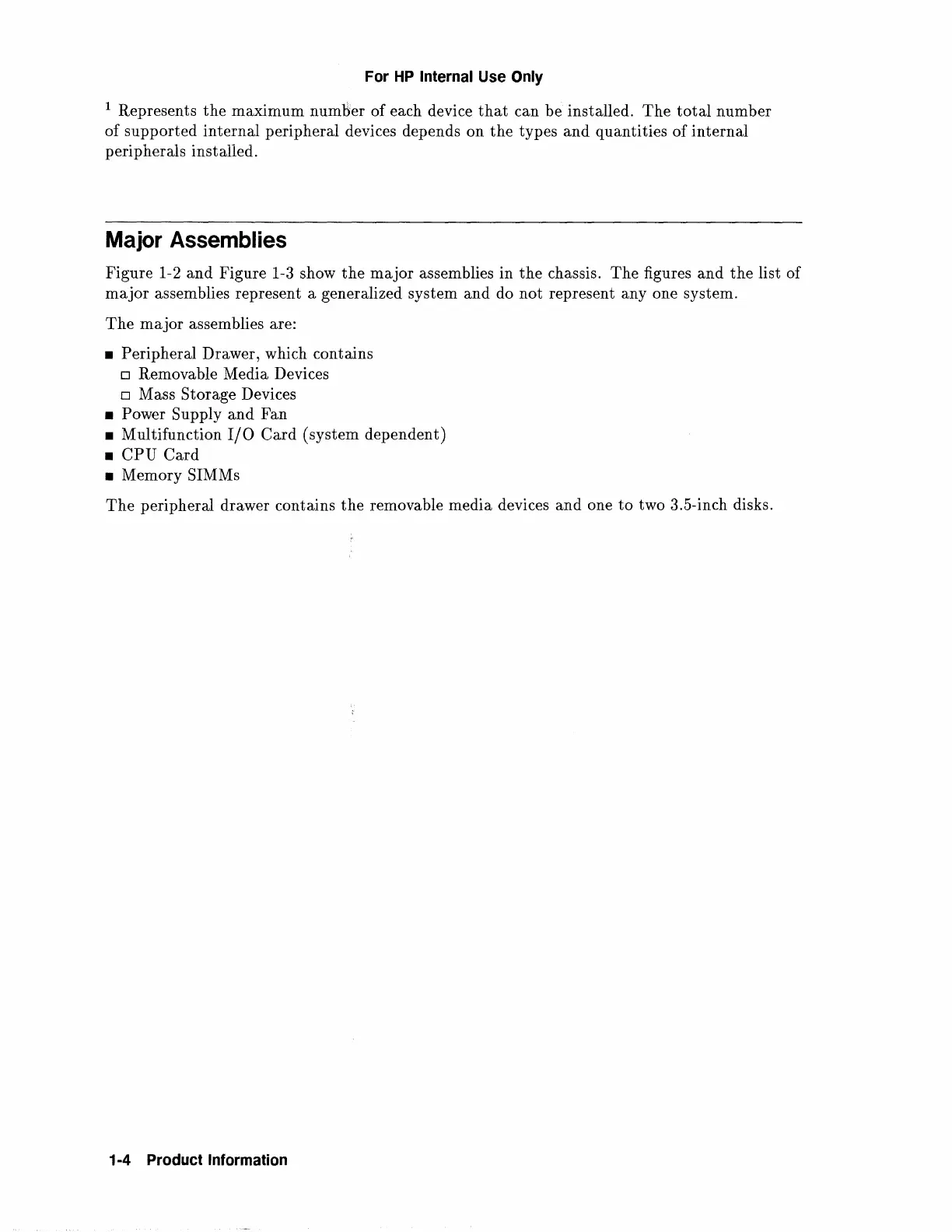

For
HP
Internal Use
Only
1
Represents
the
maximum
numoer
of
each device
that
can be installed.
The
total
number
of
supported
internal peripheral devices depends on
the
types
and
quantities
of
internal
peripherals installed.
Major
Assemblies
Figure 1-2
and
Figure 1-3 show
the
major
assemblies in
the
chassis.
The
figures
and
the
list
of
major
assemblies represent a generalized system
and
do
not
represent any one system.
The
major
assemblies are:
• Peripheral Drawer, which contains
o Removable Media Devices
o Mass Storage Devices
• Power Supply
and
Fan
• Multifunction
I/0
Card
(system dependent)
•
CPU
Card
• Memory SIMMs
The
peripheral drawer contains
the
removable media devices
and
one
to
two 3.5-inch disks.
