Door. To remove the door (see Figure 8-30):
Note
•
A coil spring is used to keep the door closed. Make sure the spring is
reinstalled when the door is replaced .
1. Slide the door cam off of the door.
2. Pull the hinge pin out of the door.
3. Detatch the door spring from the drive chassis and pull the door away from the front of the
drive.
To replace the door:
1. Insert the free end of the door spring into the hole below the CD-ROM slot.
2. Position the door over CD-ROM slot.
3. Insert the hinge pin.
4. Orient the door cam as shown and slide it onto the door.

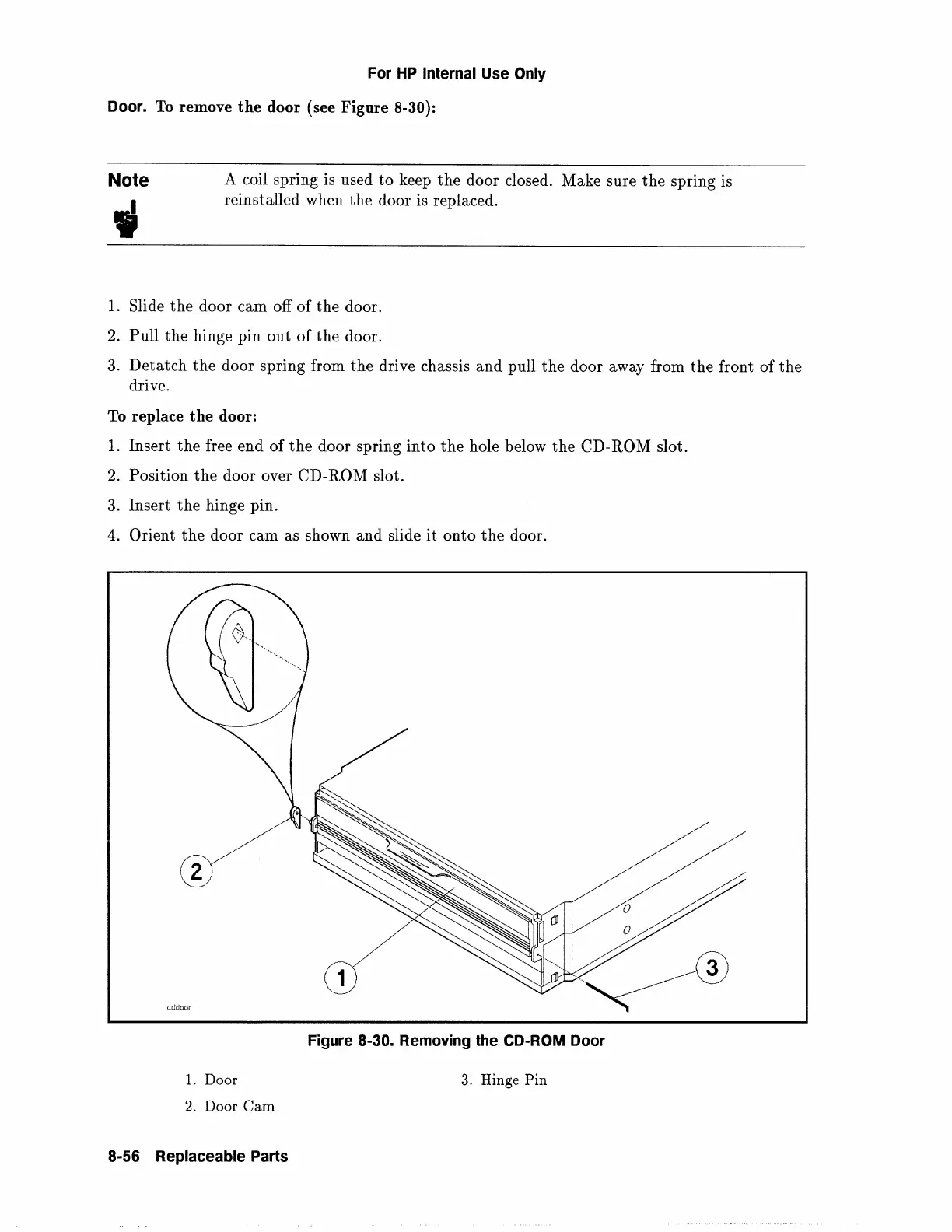

Figure 8-30. Removing the CD-ROM Door
1. Door
3. Hinge Pin
2. Door Cam
8-56 Replaceable Parts
