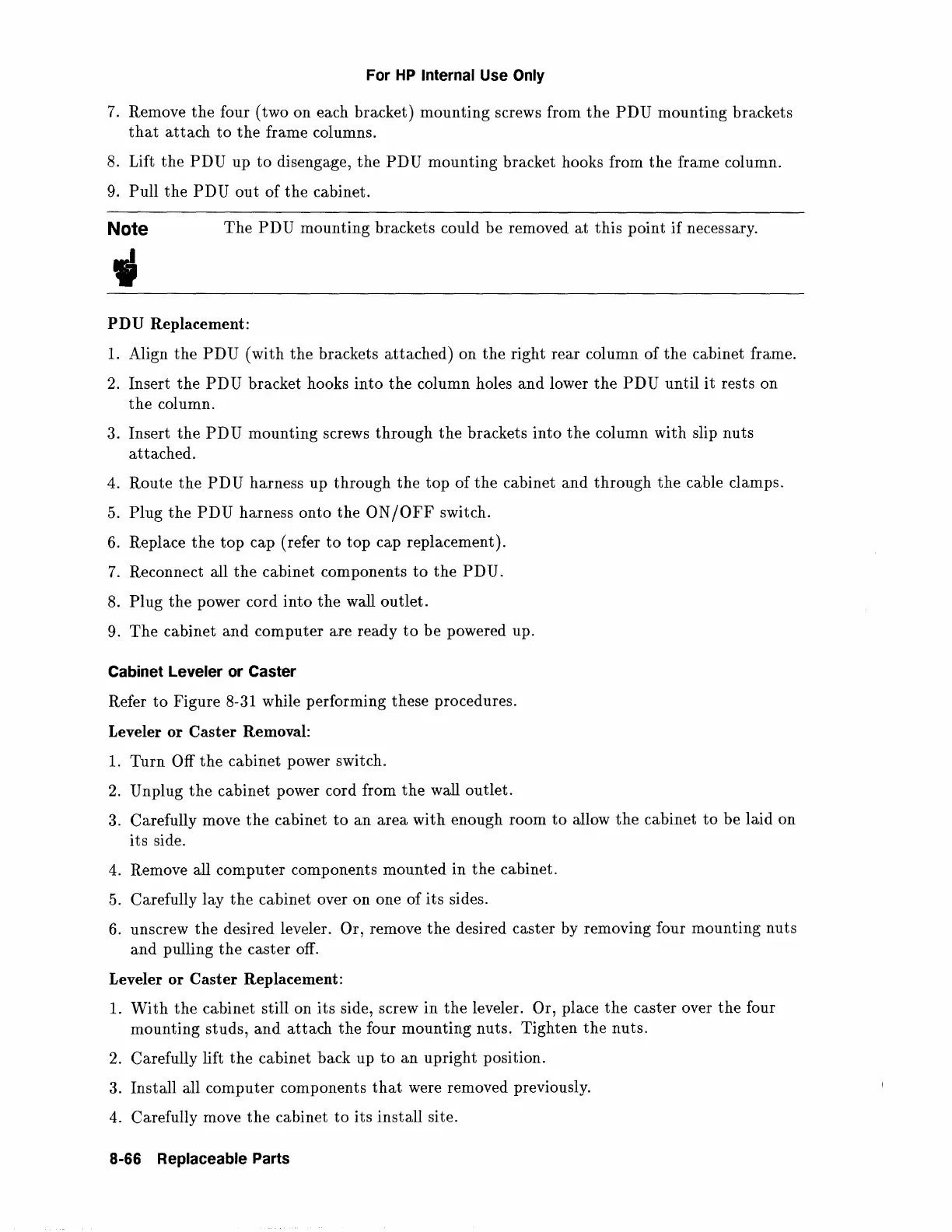

For
HP
Internal Use
Only
7.
Remove the four (two on each bracket) mounting screws from
the
PDU
mounting brackets
that
attach
to
the
frame columns.
8.
Lift the PDU up
to
disengage, the PDU mounting bracket hooks from the frame column.
9.
Pull the PDU out of the cabinet.
Note
The
PDU mounting brackets could be removed
at
this point if necessary.
"
PDU
Replacement:
1.
Align the
PDU
(with the brackets attached) on the right rear column of the cabinet frame.
2.
Insert the
PDU
bracket hooks into the column holes and lower
the
PDU
until
it
rests on
the
column.
3. Insert the
PDU
mounting screws through
the
brackets into
the
column with slip nuts
attached.
4. Route the
PDU
harness up through the top of
the
cabinet and through the cable clamps.
5.
Plug the PDU harness onto the
ON
/OFF
switch.
6.
Replace
the
top cap (refer
to
top cap replacement).
7.
Reconnect all
the
cabinet components
to
the PDU.
8. Plug
the
power cord into
the
wall outlet.
9.
The cabinet and computer are ready
to
be powered up.
Cabinet Leveler or Caster
Refer
to
Figure 8-31 while performing these procedures.
Leveler or Caster Removal:
1.
Turn Off
the
cabinet power switch.
2.
Unplug
the
cabinet power cord from
the
wall outlet.
3. Carefully move
the
cabinet
to
an
area with enough room
to
allow
the
cabinet
to
be laid on
its side.
4. Remove all computer components mounted in the cabinet.
5.
Carefully lay the cabinet over on one
of
its sides.
6.
unscrew
the
desired leveler. Or, remove
the
desired caster by removing four mounting nuts
and pulling
the
caster
off.
Leveler or Caster Replacement:
1.
With
the cabinet still on its side, screw in
the
leveler. Or, place the caster over the four
mounting studs,
and
attach
the four mounting nuts. Tighten
the
nuts.
2.
Carefully lift
the
cabinet back up
to
an
upright position.
3. Install all computer components
that
were removed previously.
4.
Carefully move
the
cabinet
to
its install site.
8-66 Replaceable Parts
