Huawei S6700 Series Configuration Guide

network 172.16.1.0 0.0.0.255
#
return
l Configuration file of Switch F
#
sysname SwitchF
#
router id 6.6.6.6
#
vlan batch 50
#
interface Vlanif50
ip address 172.17.1.2 255.255.255.0
#
interface XGigabitEthernet0/0/1
port trunk allow-pass vlan 50
#
ospf 1
area 0.0.0.2
network 172.17.1.0 0.0.0.255
#
return
4.14.2 Example for Configuring a Stub Area of OSPF
Networking Requirements
As shown in Figure 4-6, OSPF is enabled on all Switches and the entire AS is partitioned into
three areas. SwitchA and SwitchB function as ABRs to forward routes between areas. SwitchD
functions as the ASBR to import static routes.
The requirement is to configure Area 1 as the stub area, thus reducing the LSAs advertised to
this area without affecting the route reachability.

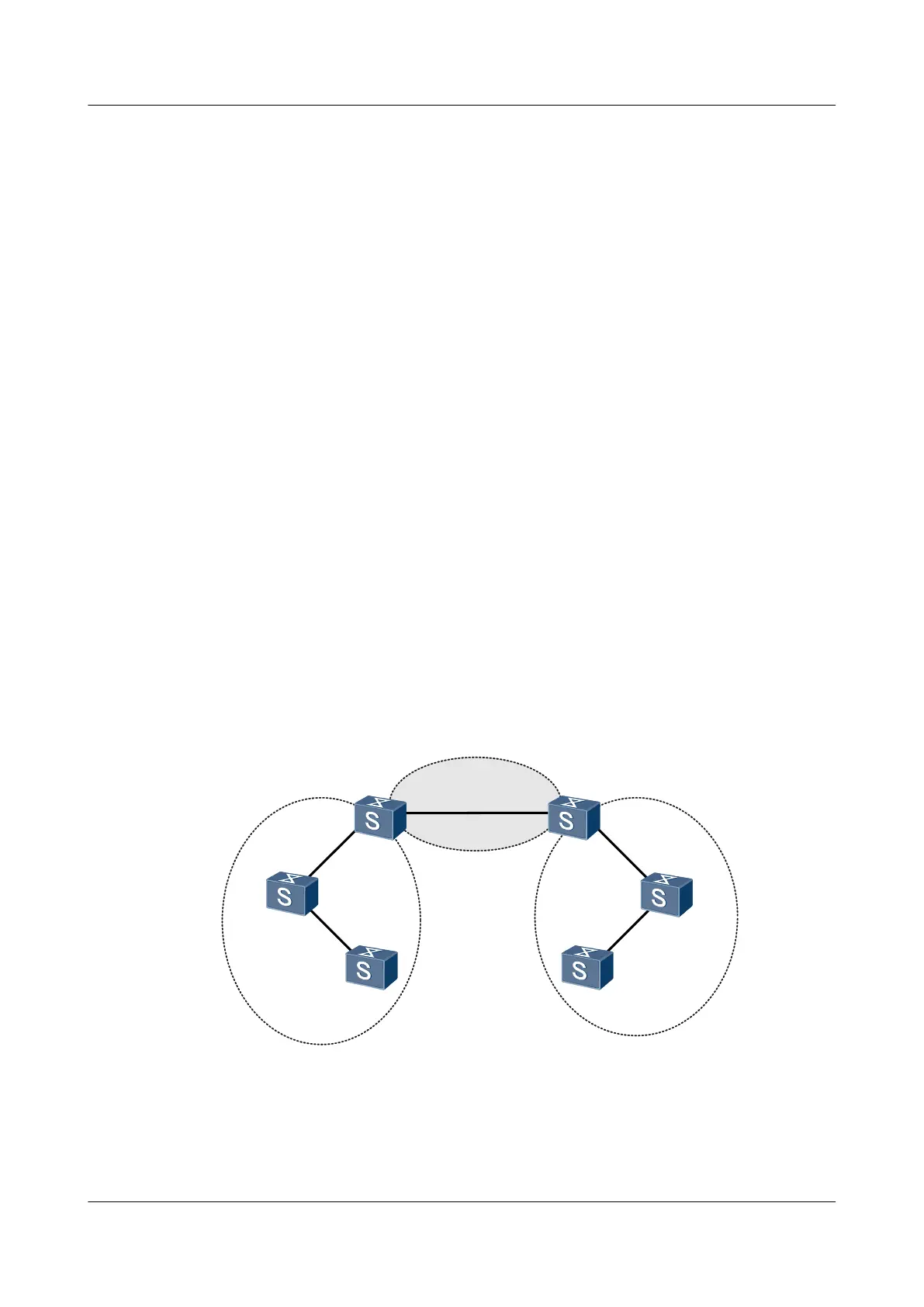

Figure 4-6 Configuring OSPF stub areas
Switch A
Switch C Switch D
Switch E
Switch F
Area 0
Area 1
Area 2
XGE 0/0/1
XGE 0/0/1
XGE0/0/1
XGE0/0/1
XGE 0/0/1
XGE 0/0/1
XGE 0/0/2
XGE 0/0/2
XGE 0/0/2
XGE 0/0/2
Switch B
S-switch
Interface VLANIF Interface IP Address
SwitchA XGE 0/0/1 VLANIF 10 192.168.0.1/24
SwitchA XGE 0/0/2 VLANIF 20 192.168.1.1/24
SwitchB XGE 0/0/1 VLANIF 10 192.168.0.2/24
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 4 OSPF Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
142
