Huawei S6700 Series Configuration Guide

return
l Configuration file of Switch F
#
sysname SwitchF
#
vlan batch 50
#
router id 6.6.6.6
#
interface Vlanif50
ip address 172.17.1.2 255.255.255.0
#
interface XGigabitEthernet 0/0/2
port hybrid pvid vlan 50
port hybrid untagged vlan 50
#
ospf 1
area 0.0.0.2
network 172.17.1.0 0.0.0.255
#
ospf valid-ttl-hops 4
#
return
4.14.9 Example for Configuring BFD for OSPF
Networking Requirements
As shown in Figure 4-13, the networking requirements are as follows:
l Switch A, Switch B, and Switch C run OSPF.
l BFD for OSPF is enabled on Switch A, Switch B, and Switch C.
l Service traffic is transmitted on the main link Switch A→Switch B. Link Switch A→Switch
C→Switch B is a backup link.
l BFD is configured on the interfaces between Switch A and Switch B. When a fault occurs
on the link between the Switch s, BFD can quickly detect the fault and notify OSPF of the
fault. Then, the service flow is transmitted on the backup link.

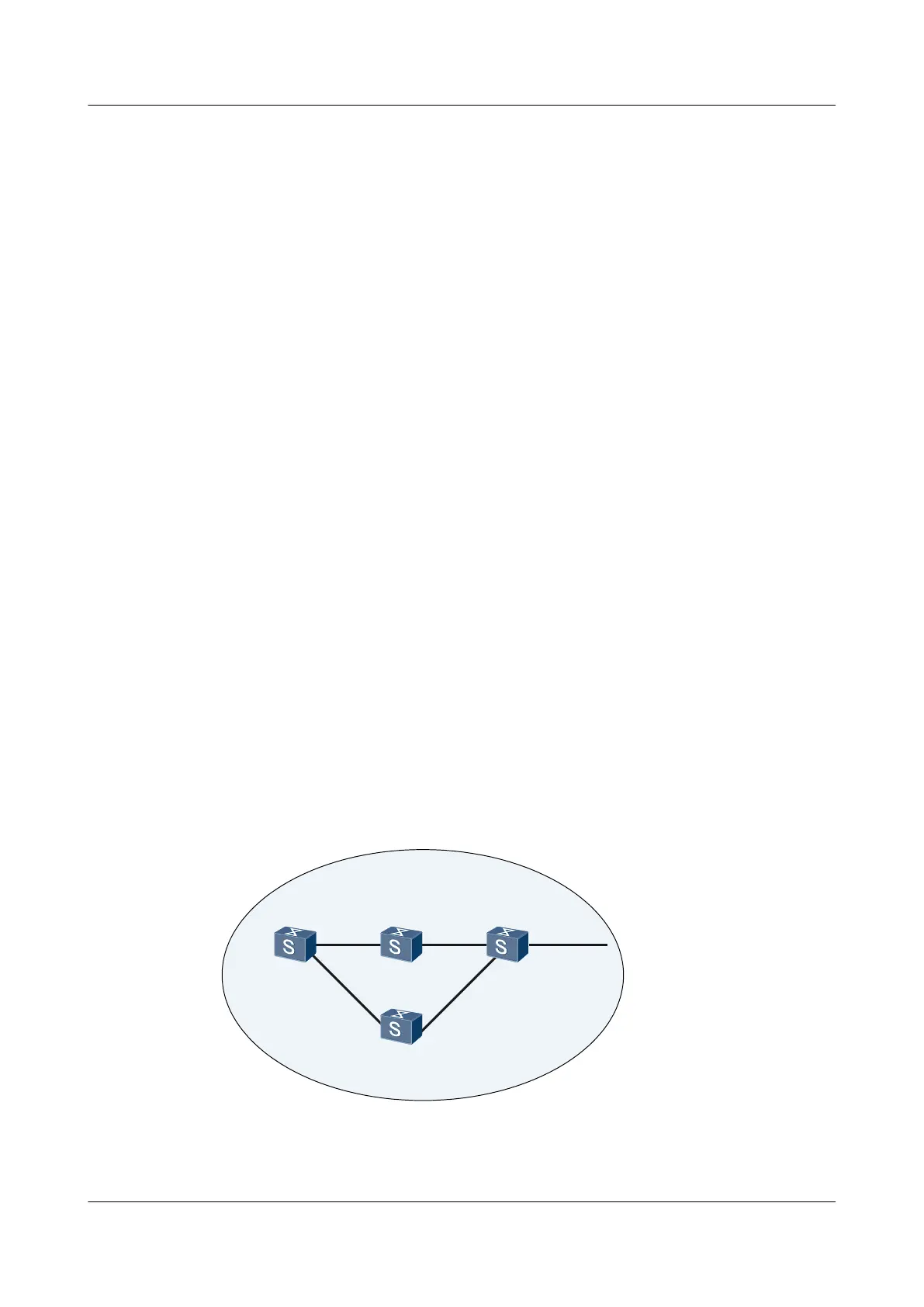

Figure 4-13 Networking diagram for configuring BFD for OSPF
GE0/0/1
SwitchA
SwitchB
SwitchC
XGE0/0/3XGE0/0/2
XGE0/0/2
XGE0/0/1
XGE0/0/1 XGE0/0/2
XGE0/0/1
Switch
Interface VLANIF interface IP address
Switch A XGE0/0/1 VLANIF 10 1.1.1.1/24
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 4 OSPF Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
179
