Huawei S6700 Series Configuration Guide

sysname SwitchC
#
vlan batch 30
#
interface Vlanif30
ip address 200.1.3.2 255.255.255.0
#
interface XGigabitEthernet0/0/3
port hybrid pvid vlan 30
port hybrid untagged vlan 30
#
bgp 30
router-id 3.3.3.3
peer 200.1.3.1 as-number 20
#
ipv4-family unicast
undo synchronization
peer 200.1.3.1 enable
#
return
7.20.6 Example for Configuring a BGP RR
Networking Requirements
As shown in Figure 7-9, Switch A is a non-client. Switch B is the RR of cluster 1. Switch D
and Switch E are two clients of cluster 1. Because the IBGP connection is created between Switch
D and Switch E, they do not need an RR. Switch C is the RR of cluster 2. Switch F, Switch G,
and Switch H are the clients of cluster 2.
It is required that the peer groups be used to simplify configuration and management.

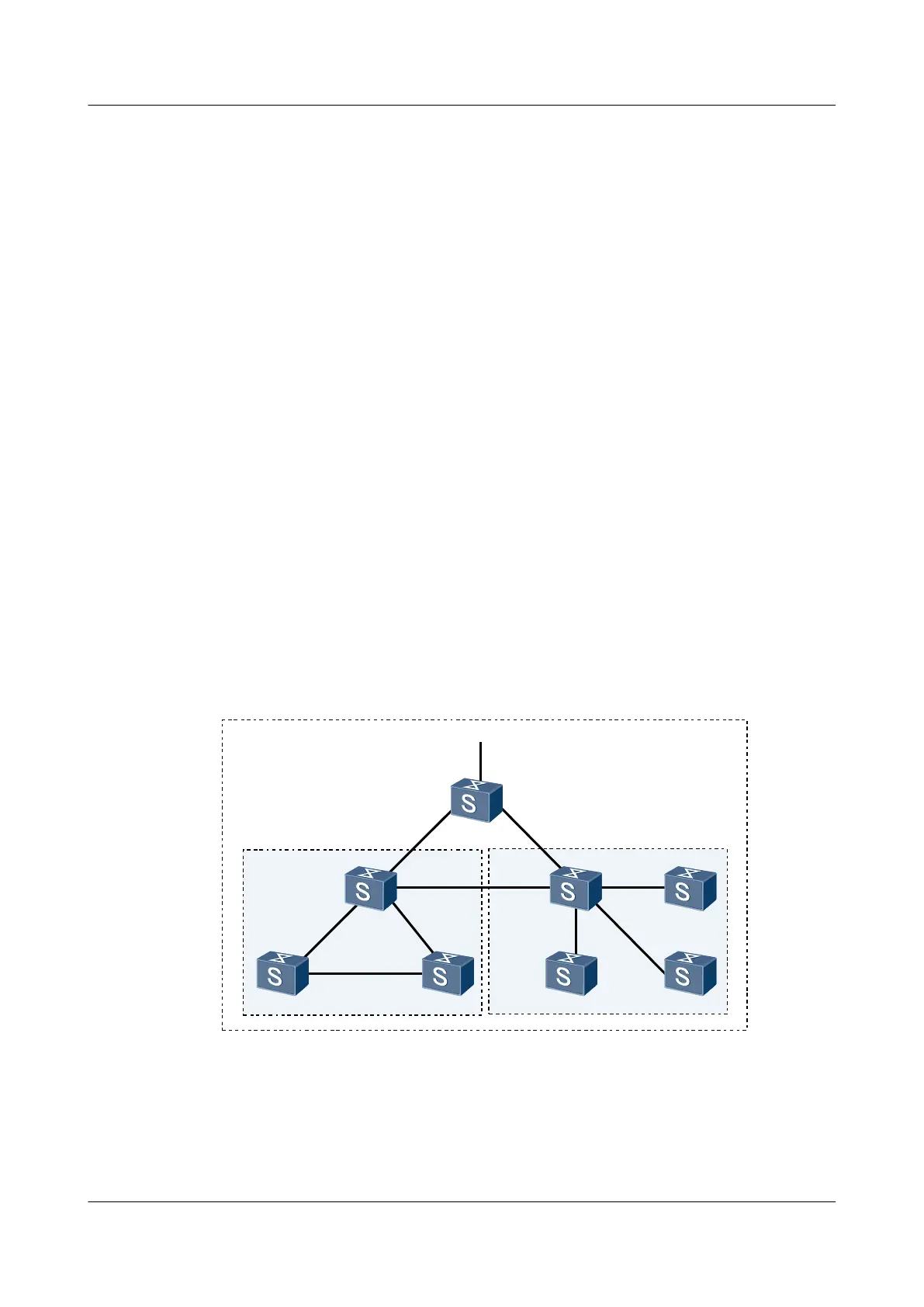

Figure 7-9 Networking diagram for configuring a BGP RR
SwitchA
SwitchB
SwitchD
XGE0/0/1
XGE0/0/1
XGE0/0/2
XGE0/0/3
XGE0/0/2
XGE0/0/3
XGE0/0/1
XGE0/0/2
XGE0/0/4
XGE0/0/4
XGE0/0/3
XGE0/0/1
XGE0/0/2
XGE0/0/1
XGE0/0/2
XGE0/0/5
XGE0/0/1
XGE0/0/1
XGE0/0/1
AS 65010
Cluster1
Cluster2
SwitchE SwitchF
SwitchG
SwitchH
SwitchC
Switch
Interface VLANIF interface IP address
SwitchA XGigabitEthernet0/0/1 VLANIF 10 10.1.1.2/24
SwitchA XGigabitEthernet0/0/2 VLANIF 30 10.1.3.2/24
SwitchA XGigabitEthernet0/0/3 VLANIF 100 9.1.1.1/24
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 7 BGP Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
468
