Huawei S6700 Series Configuration Guide

#
sysname SwitchC
#
vlan batch 10 30
#
interface Vlanif10
ip address 200.1.4.2 255.255.255.0
#
interface Vlanif30
ip address 200.1.3.2 255.255.255.0
#
interface XGigabitEthernet0/0/1
port hybrid pvid vlan 10
port hybrid untagged vlan 10
#
interface XGigabitEthernet0/0/2
port hybrid pvid vlan 30
port hybrid untagged vlan 30
#
bgp 30
router-id 3.3.3.3
peer 200.1.4.1 as-number 10
peer 200.1.3.1 as-number 20
#
ipv4-family unicast
undo synchronization
import-route direct
peer 200.1.4.1 enable
peer 200.1.3.1 enable
#
return
7.20.3 Example for Configuring BGP to Interact with an IGP
Networking Requirements
As shown in Figure 7-6, OSPF is used inside AS 65009. An EBGP peer relationship is set up
between SwitchA and SwitchB. SwitchC runs OSPF instead of BGP.

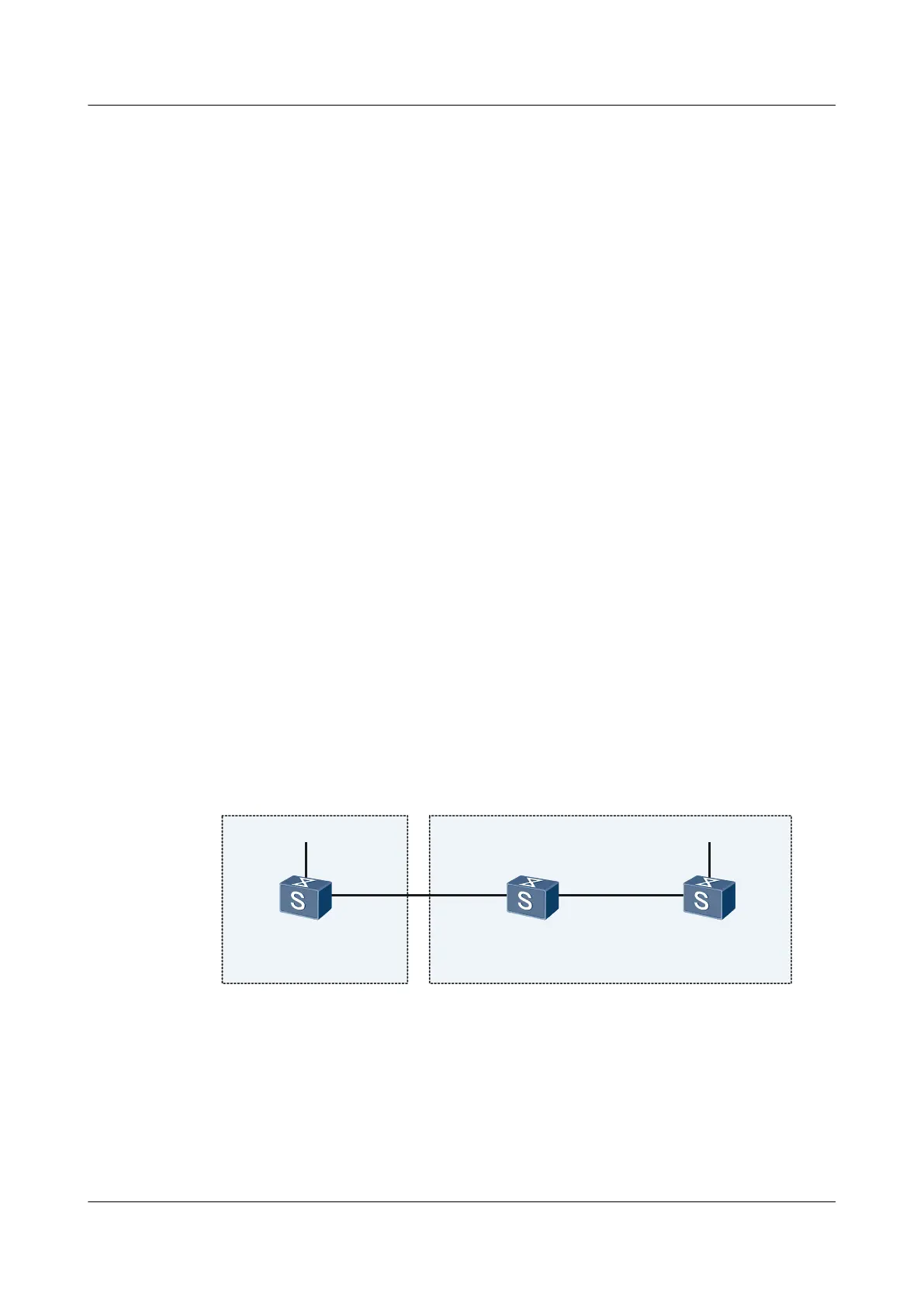

Figure 7-6 Networking diagram for configuring BGP to interact with an IGP
XGE0/0/2
XGE0/0/1
Switch A
XGE0/0/1 XGE0/0/2
XGE0/0/2
Switch B
AS65008 AS65009
XGE0/0/1
Switch C
Switch
Interface VLANIF Interface IP Address
SwitchA XGE 0/0/1 VLANIF 10 3.1.1.2/24
SwitchA XGE 0/0/2 VLANIF 30 8.1.1.1/24
SwitchB XGE 0/0/1 VLANIF 10 3.1.1.1/24
SwitchB XGE 0/0/2 VLANIF 20 9.1.1.1/24
SwitchC XGE 0/0/1 VLANIF 20 9.1.1.2/24
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 7 BGP Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
455
