Huawei S6700 Series Configuration Guide

#
interface XGigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10
#
return
l Configuration file of SwitchD
#
sysname SwitchD
#
vlan batch 10
#
isis 1
is-level level-2
network-entity 10.0000.0000.0004.00
#
interface Vlanif10
ip address 10.1.1.4 255.255.255.0
isis enable 1
#
interface XGigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10
#
return
6.18.4 Example for Configuring IS-IS Load Balancing
Networking Requirements
As shown in Figure 6-6:
l SwitchA, SwitchB, SwitchC, and SwitchD are interconnected in an IP network by running
the IS-IS protocol.
l SwitchA, SwitchB, SwitchC, and SwitchD are Level-2 Switches in Area 10.
l Load balancing is required for the transmission of the traffic from SwitchA to SwitchD
through SwitchB and SwitchC respectively.

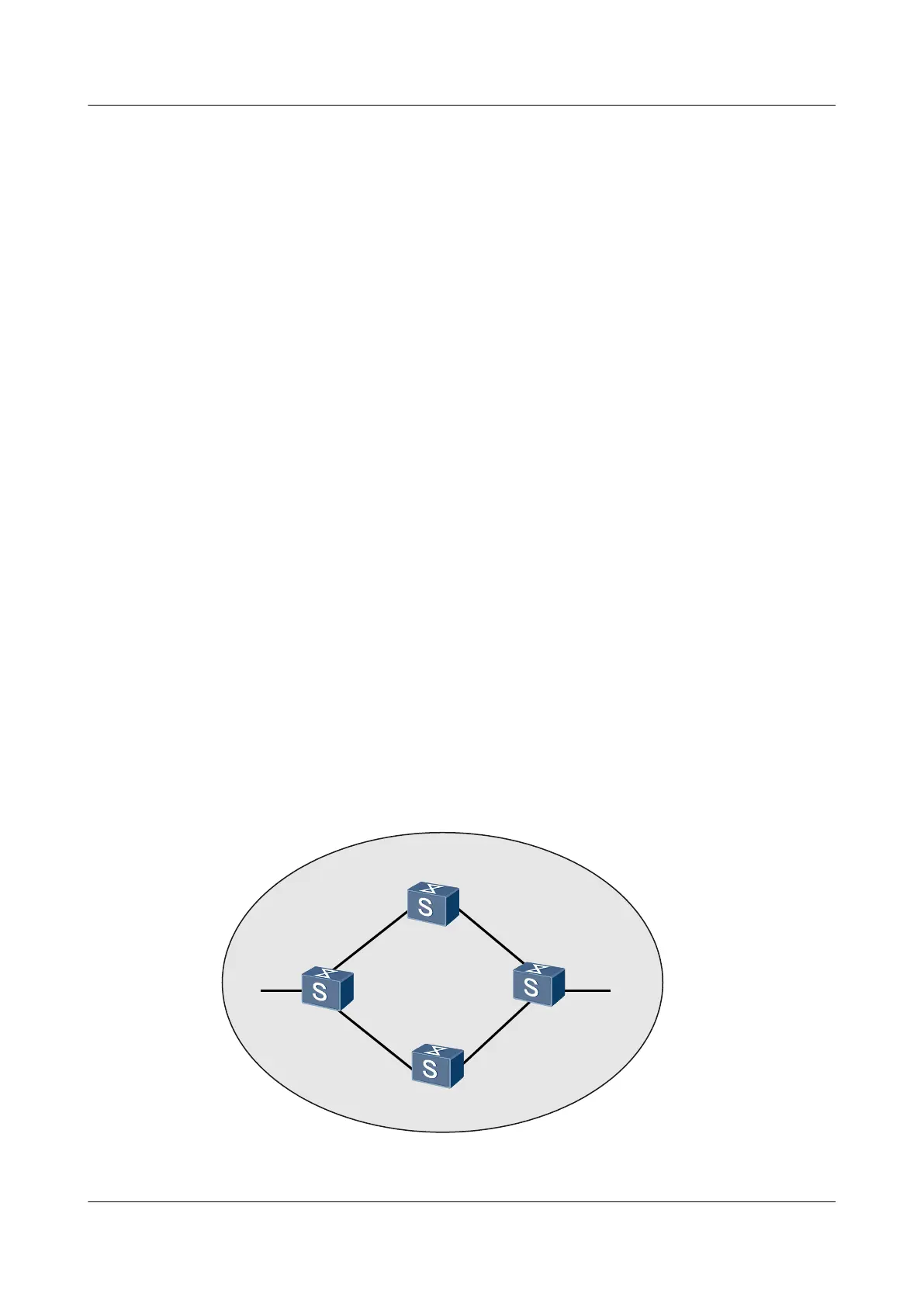

Figure 6-6 Networking diagram for configuring IS-IS load balancing
Area10
Switch A
Switch C
Switch B
Switch D
XGE0/0/1
XGE0/0/2
XGE0/0/2
XGE0/0/2
XGE0/0/2
XGE0/0/1
XGE0/0/1
XGE0/0/1
XGE0/0/3
XGE0/0/3
L2
L2
L2
L2
Switch
Interface VLANIF Interface IP Address
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 6 IS-IS Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
333
