KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
7-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[7] ATC
After the ATC base has been replaced, it is necessary to obtain “ATC Offset” of the MS parameters.
(See also section 4-7 in the MS parameters.)
7-1. Replacing the Air Cylinder
(1) Close the hand valve at the lower left portion of the main unit.
(2) Remove the ATC joint and Hexagon socket head cap screw to detach the air cylinder. (At this
time, disconnect the φ4 air tube.)

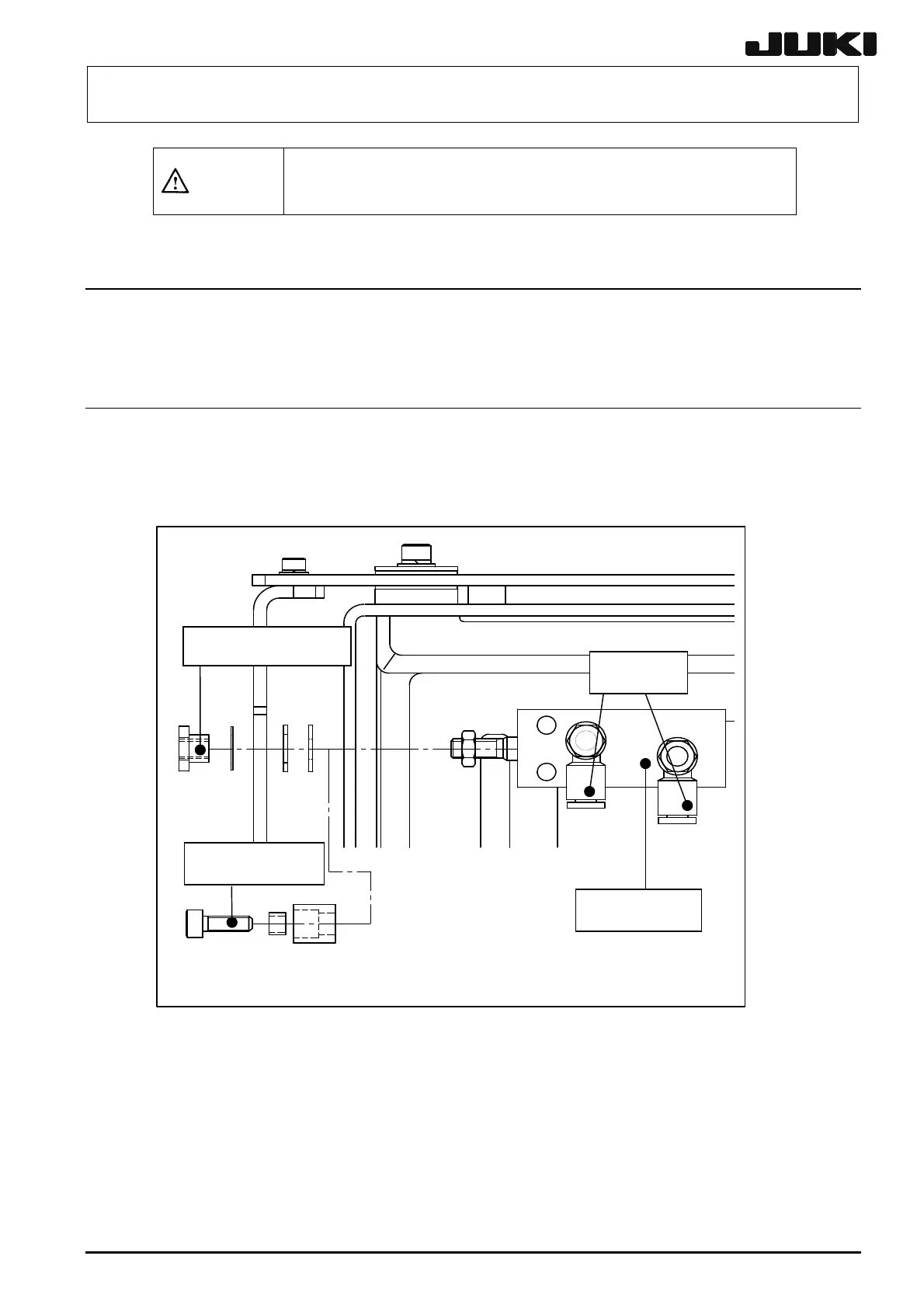

Figure 7-1-1 Replacement of the Air Cylinder
Air cylinder
Hexagon socket
head cap screw
ATC joint
Speed
controller
(3) Replace the air cylinder with a new one.
Rev. 2.00
