KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
8-5
8-3-2. Downward Light Board, Side Light Board
c and then replace the board.
replace the board.
After the board has been replaced, make sure the cables are reconnected.
(1) In the case of the side light board, remove the SEMS bolts
(2) In the case of the downward light board, remove the side light board first, detach the light studs
d and then

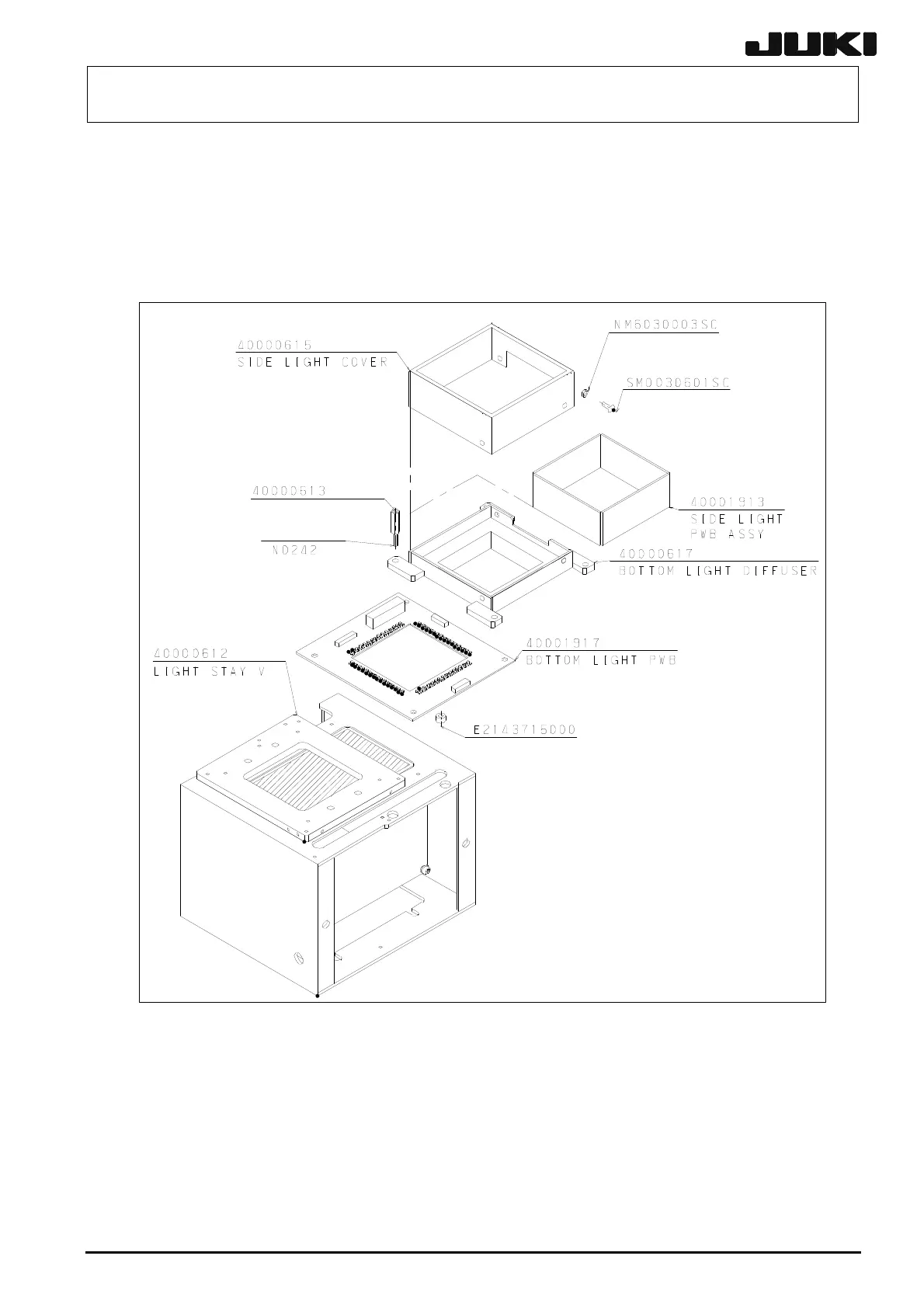

Figure 8-3-2
M3 hexagon nut
×
(3 kinds) ( 4) (Note 1)
M3 × 6 truss head
screw (× 4)
(Note 1)
Light stud (× 4)
Locktite
Timer spacer A (
4)
d
c
Rev. 2.00
To Next Page
