KE-2050/2060 Maintenance Manual
6-2

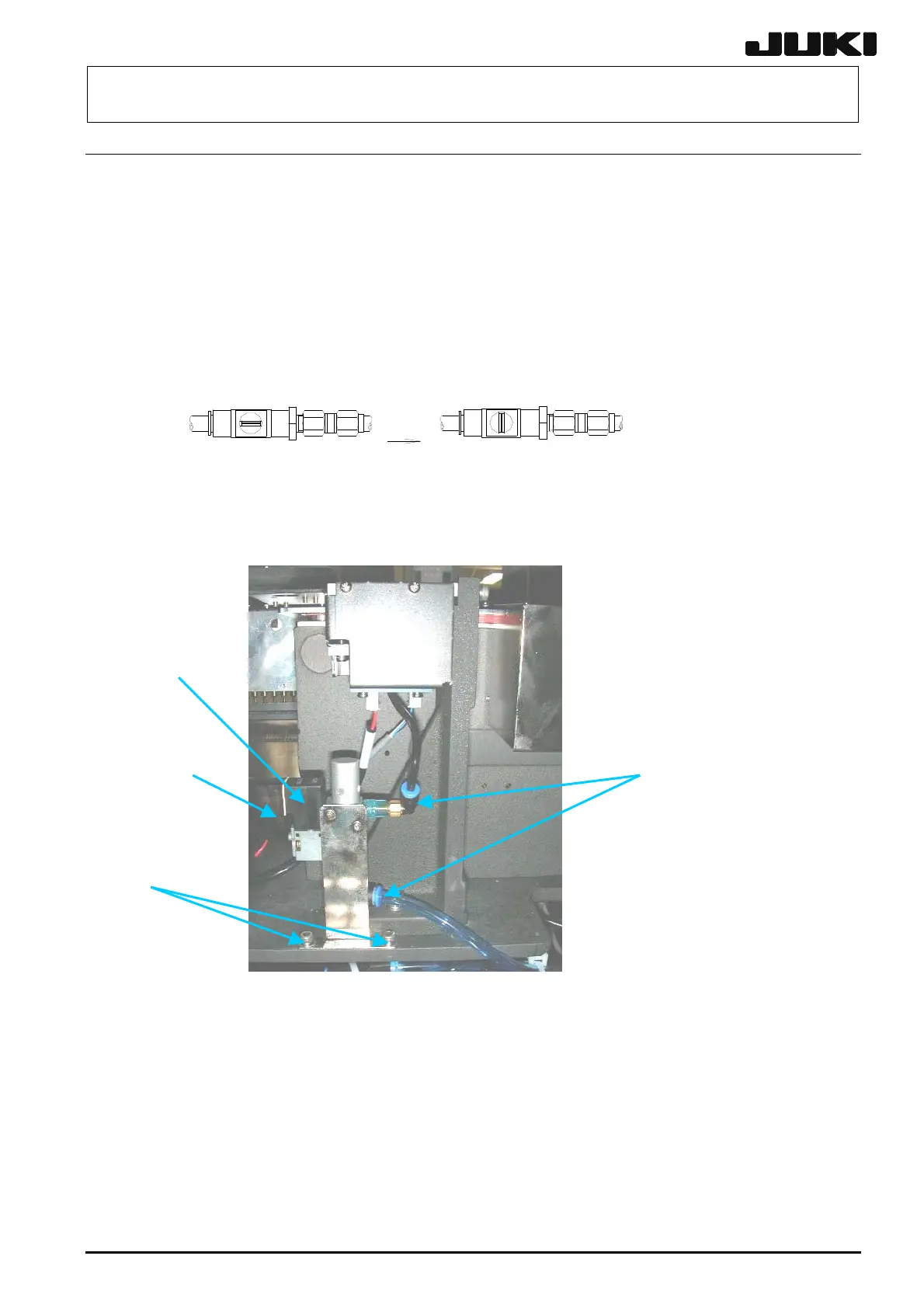

6-2. Replacing the Ejector
(1) Remove the two SEMS bolts c.
(2) Disconnect the cable d.
(3) Disconnect the air tube e.
(4) Remove the screws and replace the ejector f with a new one.
(5) Reassemble the components in the reverse order.
Opened
Closed
エアの供給を断つ
The air must be turned
Rev. 2.00
e
c
d
f
