KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
15-4
15-3. Mounting the Origin Switch Dog
Front Reference *Parts in [ ] are those for the L-size (E-size) machine.
Rev. 2.00
セムス cap
SL6030692TN
×
2
E2156725000
AWC OPドグ
(M/L)
E2161725000
E4801729000
AWCセンサブラケットB
E4805729000
AWCセンサブラケットＢ(E)
サポートプレートS
機械手前から見て
R ail plate RR
奥基準Ｍ、Ｌ
手前基準 Ｍ、Ｌ
センナ付属ねじ
自動幅調センサ組
R レールスタンドR
Rail stand RR
機械後ろから見る
When viewed from the rear of the
machine.
40002120
セムスcapt
SL6031092TN
×

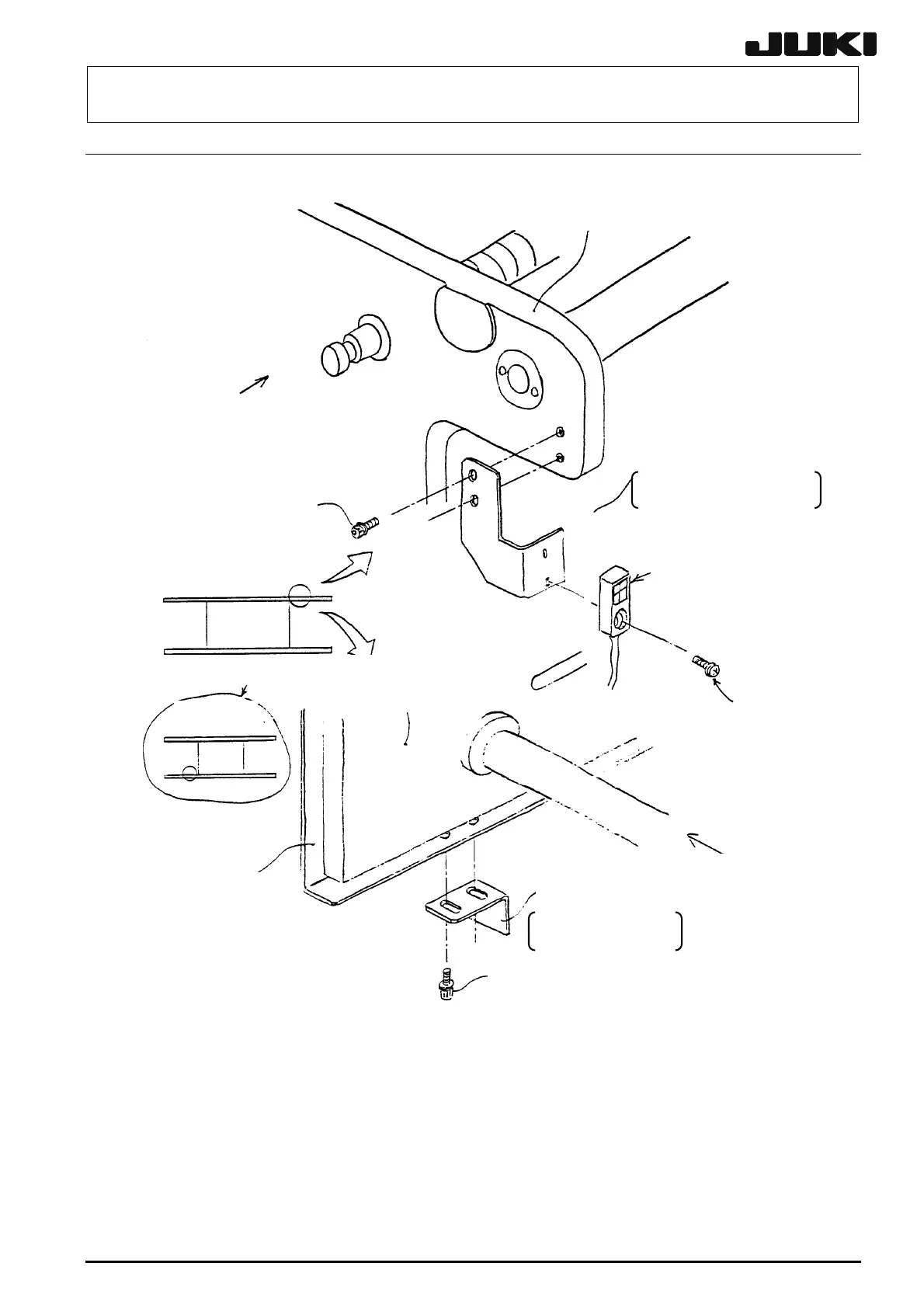

Figure 15-3-1
After the AWC OP dog has been mounted, change the rail width between the
maximum and minimum levels to check that it does not interfere with other objects,
such as the air tube.
SEMS cap bolt
SL6030692TN × 2
E2156725000
AWC OP dog (M)
E2161725000
AWC OP dog (L, E)
E4801729000
AWC sensor bracket B
E4805729000
AWC sensor bracket B (E)
When viewed from the
front of the machine
Rail plate RR
Front reference M, L, E
Screw supplied with sensor
40002120
uto width a
sensor assembly
djustment
SEMS cap bolt
SL6031092TN × 2
Support plate S
Rear reference
M, L
