KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-11
14-4. Control Unit
14-4-1. Structure of Control Unit
Figure 14-4-1-1 shows the KE-2050/2050R board layout drawing of the control unit; Figure 14-4-1-2
shows that of the KE-2060/2055R/2060R. Check that the boards are mounted correctly while
referring to these figures.
14-4-1-1. KE-2050/2050R Board Layout
CTRL PWR ｷﾊﾞﾝｸﾐ 40001906
CTRL PWR BOARD ASSY. 40001906
SAFETY ｷﾊﾞﾝｸﾐ 40001924
Rev. 2.00
IP-X3ｷﾊﾞﾝｸﾐA 40001920
I/O CTRL ｷﾊﾞﾝｸﾐ 40001943
BASE FEEDER ｷﾊﾞﾝｸﾐ 40001941
LIGHT CTRL ｷﾊﾞﾝｸﾐ（50） 40001918
SAFETY BOARD ASSY. 40001924
注１
LIGHT CTRL BOARD ASSY. (50) 40001918 Note1
BASE FEEDER BOARD ASSY. 40001941
II/O CTRL BOARD ASSY. 40001943
注１
IIP-X3 BOARD ASSY. 40001920 Note1
MCMｷﾊﾞﾝ（MNLA用）E9609729000
ﾌﾞﾗﾝｸﾊﾟﾈﾙ
VERIFYｷﾊﾞﾝBｸﾐ E86717290B0（CVSオプション）
ﾌﾞﾗﾝｸﾊﾟﾈﾙ
ﾌﾞﾗﾝｸﾊﾟﾈﾙ
ﾊﾞｽﾌﾞﾘｯｼﾞﾎﾞｰﾄﾞ 40003313
ブランクパネル
XMP-CPCI 40003259
CPUﾎﾞｰﾄﾞ 40003280
MCM BOARD (FOR MNLA) E9609729000
VERIFY BOARD B ASSY. E86717290B0 (CVS OPTION)
BLANC PANEL
RS232C CHANGE PCB ASM 40026382
CVSテスタ E9701705000
ﾏ ｷﾘｶｴｷ 40003281ｳｽｷｰﾎﾞｰﾄﾞ
Mouse/keyboar 03281d selector 400
BLANC PANEL
CVS tester E9701705000
BLANC PANEL
BUS BRIDGE BOARD 40003313
2CH COMMUNICATION BOARD 40003299 (TOUCH PANEL OPTION, for KE-2050 only)
XMP-CPCI 40003259
CPU BOARD 40003280

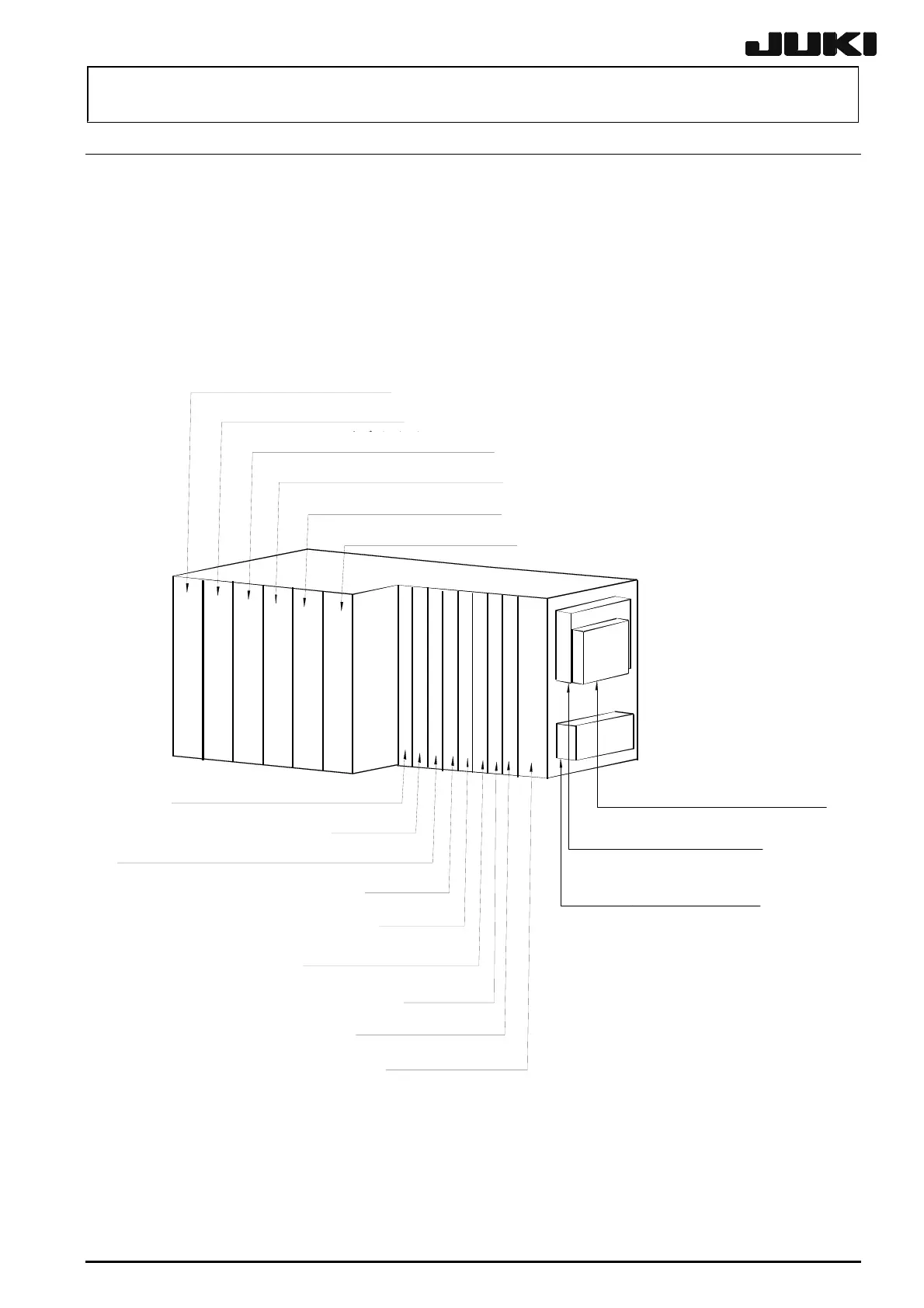

Figure 14-4-1-1 Board Layout Drawing (KE-2050/2050R)
 Note 1: This board differs depending on the machine type.
