KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
4-3
4-3. Replacing the OCC Vertical/Angle Light Board Assembly
(1) Detach the light assembly from the head plate using the procedure described in 4-1.
"Replacing the OCC Assembly".
(2) Remove the panhead machine screw c to detach the OCC vertical light board assembly.
(3) Remove the washer assembled hexagon socket head cap bolt d to detach the OCC angle light
board assembly.
(4) Reassemble the components in the reverse order of disassembly.
(5) After replacement, it is necessary to adjust the light filter U and OCC light. (See 4-8. "List of
Readjustment Items After Replacement".)
c Panhead machine
screw (× 2)
d Washer assembled
hexagon socket
head cap bolt (× 4)
Vertical light
board assembly
Angle light
board assembly

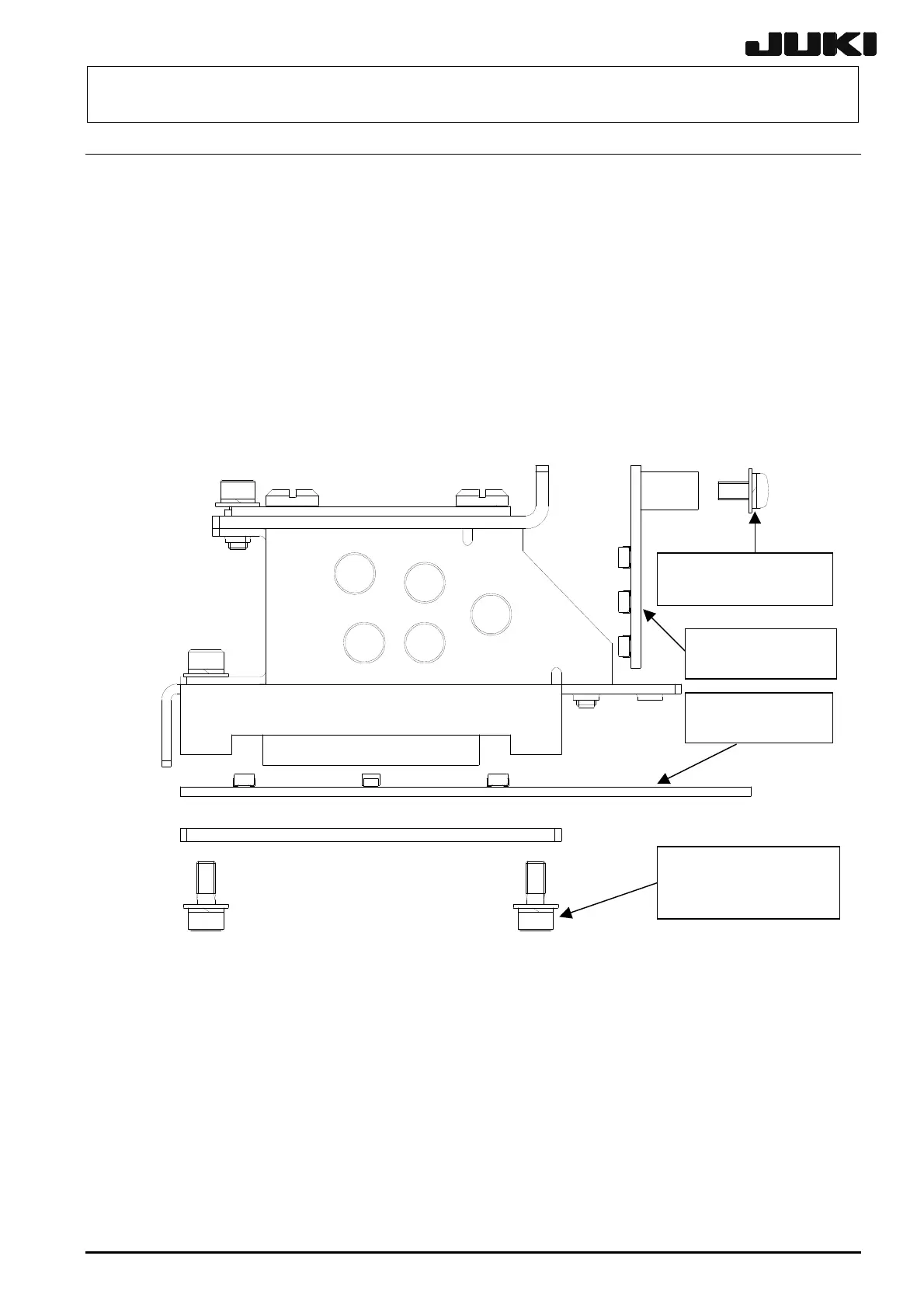

Figure 4-3-1 Replacing the OCC Vertical/Angle Light Board Assembly
Rev. 2.10
