KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-49
14-9. Covers
14-9-1. Structure of Operation Unit
The operation unit is composed of the following four kinds of boards.
c 40001953 Operation board assembly
d 40001956 Operation switch board A assembly (rear)
For CE marking machines
c 40001954 Operation board assembly (EN)
d 40001957 Operation switch board assembly (EN)
14-9-2. Jumper Switch Settings on the Operation Board Assembly (40001953) and
Operation Board Assembly [EN] (40001954)

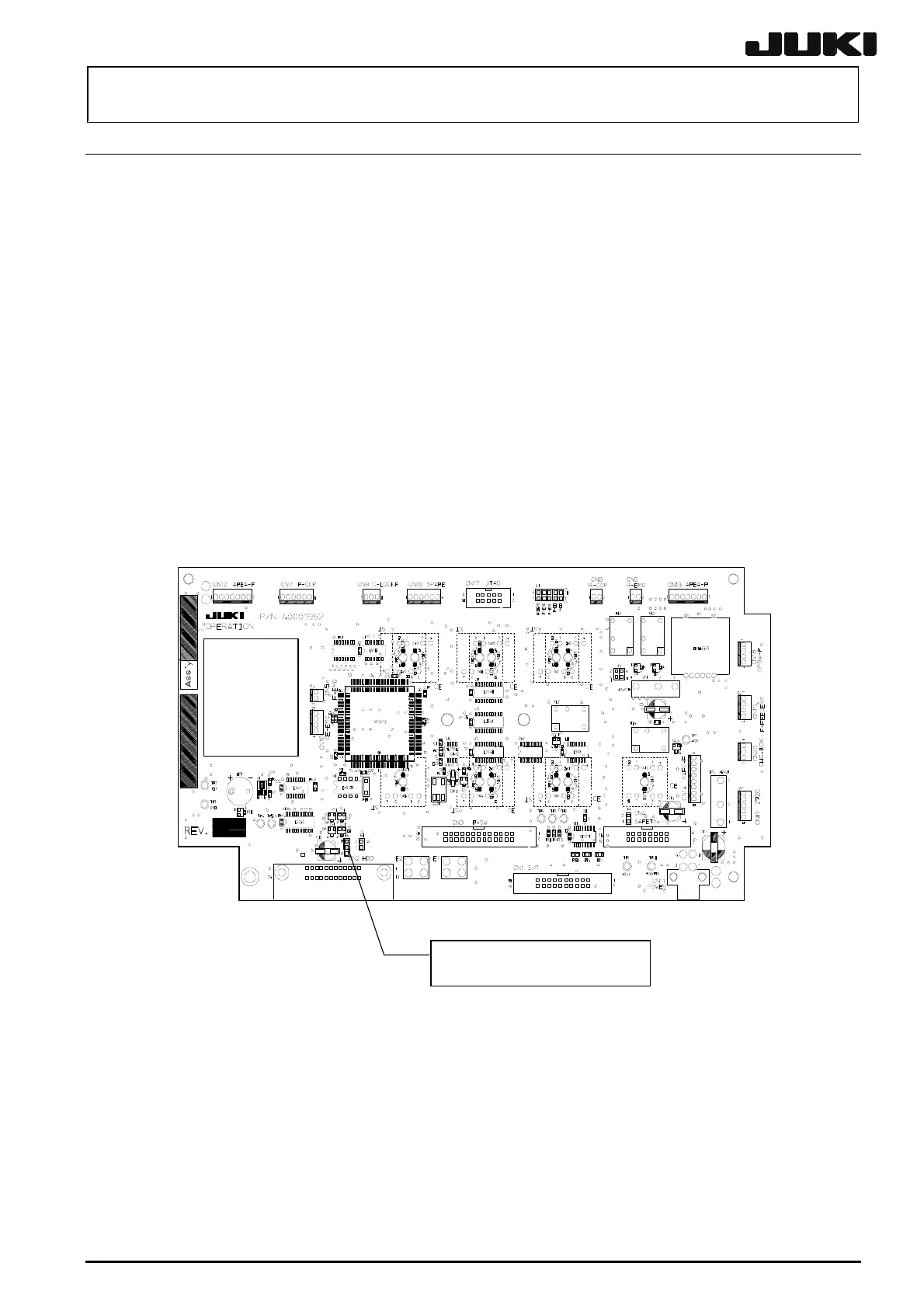

Check the jumper switch settings on the operation board while referring to Figure 14-9-2-1; set the
jumper switches on the operation board assembly (EN) referring to Figure 14-9-2-2.
このリセプタクルが装着され、
は装着されてな
他に
いかを確認
Check that this is the only
receptacle mounted.
Figure 14-9-2-1
Rev. 2.00
