KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
11-5

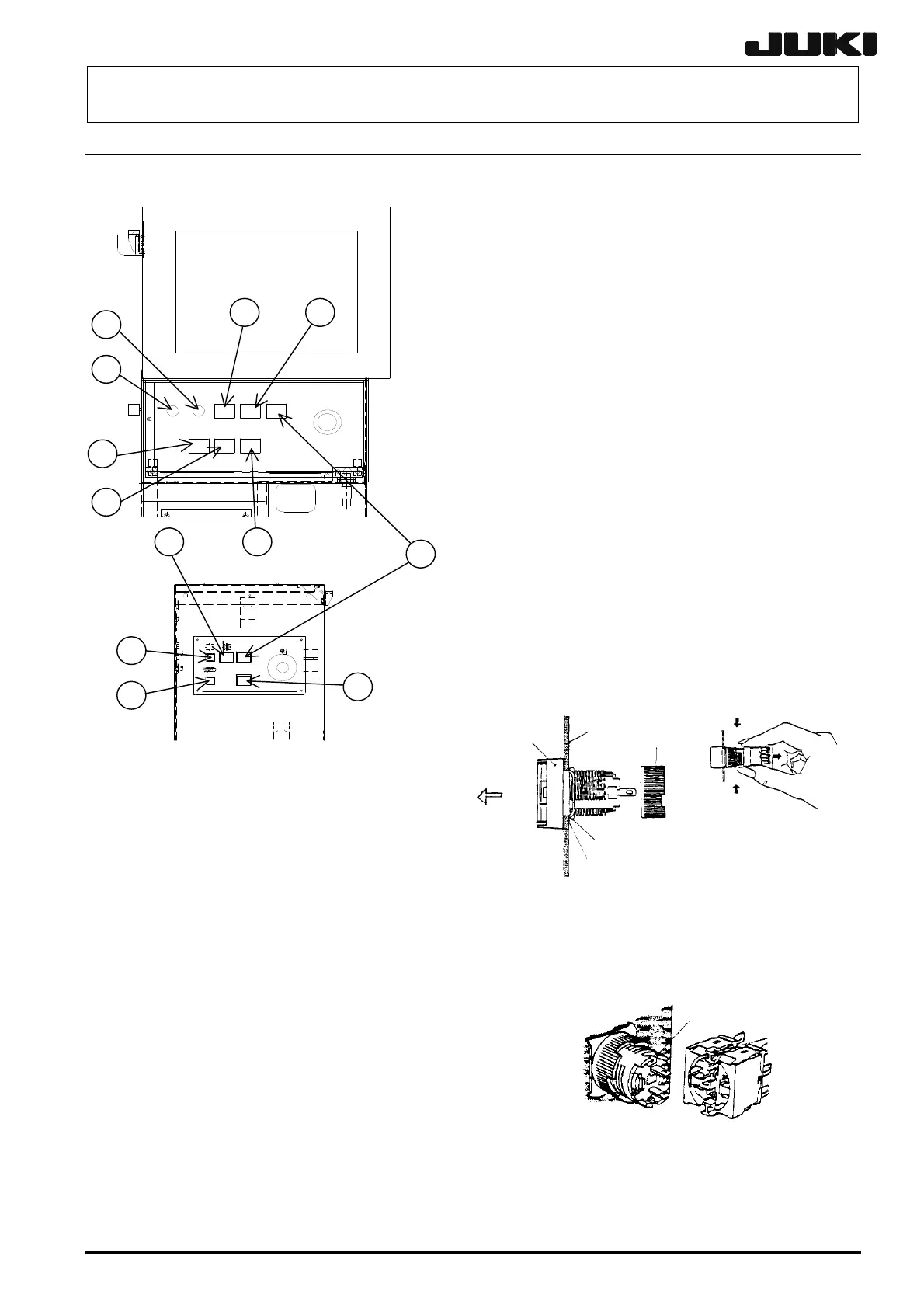

11-4. Replacing the Push-Button Switch (CE Marking Machine)
c Origin switch
d Stop switch
e Start switch
f Set up switch
g Single cycle switch
h On-line cycle switch
Rev. 1.00
1
2
3
4
5
6
3
7
i Feeder switch
j Keyboard setting switch
8
(1) Detach the PWB cover on the front of the
machine.
(2) Disconnect the connector of a switch to be
replaced from the operation switch board.
(3) To detach the switch, remove the root part
(mounting nut) of the switch from the back of
the cover and pull out the case from the
cover surface.
(4) Reassemble the components in the reverse
order of disassembly.
7
5
8
Push.
Mounting
nut
Panel
Case
Groove
Pull out.
Figure 11-4-1
Push.
<CAUTION>
A combination of the switch connector and
connector on the operation switch board
has a specified orientation. Always pay
special attention to the orientation when
mounting the switch.
白マーク
白マーク
Edge
Stop metal fitting
White mark
White mark
Figure 11-4-2
Figure 11-4-3
