KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
1-12
1-4. Replacing the Magnescale
Before replacing the magnescale, leave a new magnescale near the machine for 1 hr. or
longer so that its temperature becomes the same as that of the machine.
(1) Detach the magnescale head from the bracket.
(2) tach the old magnescale. De
(3) Degrease the magnescale mounting surface and magnescale completely.
It is recommended to use "Mechafine Mate" for the degreasing agent.
1-4-1. Magnescale Affixing Position

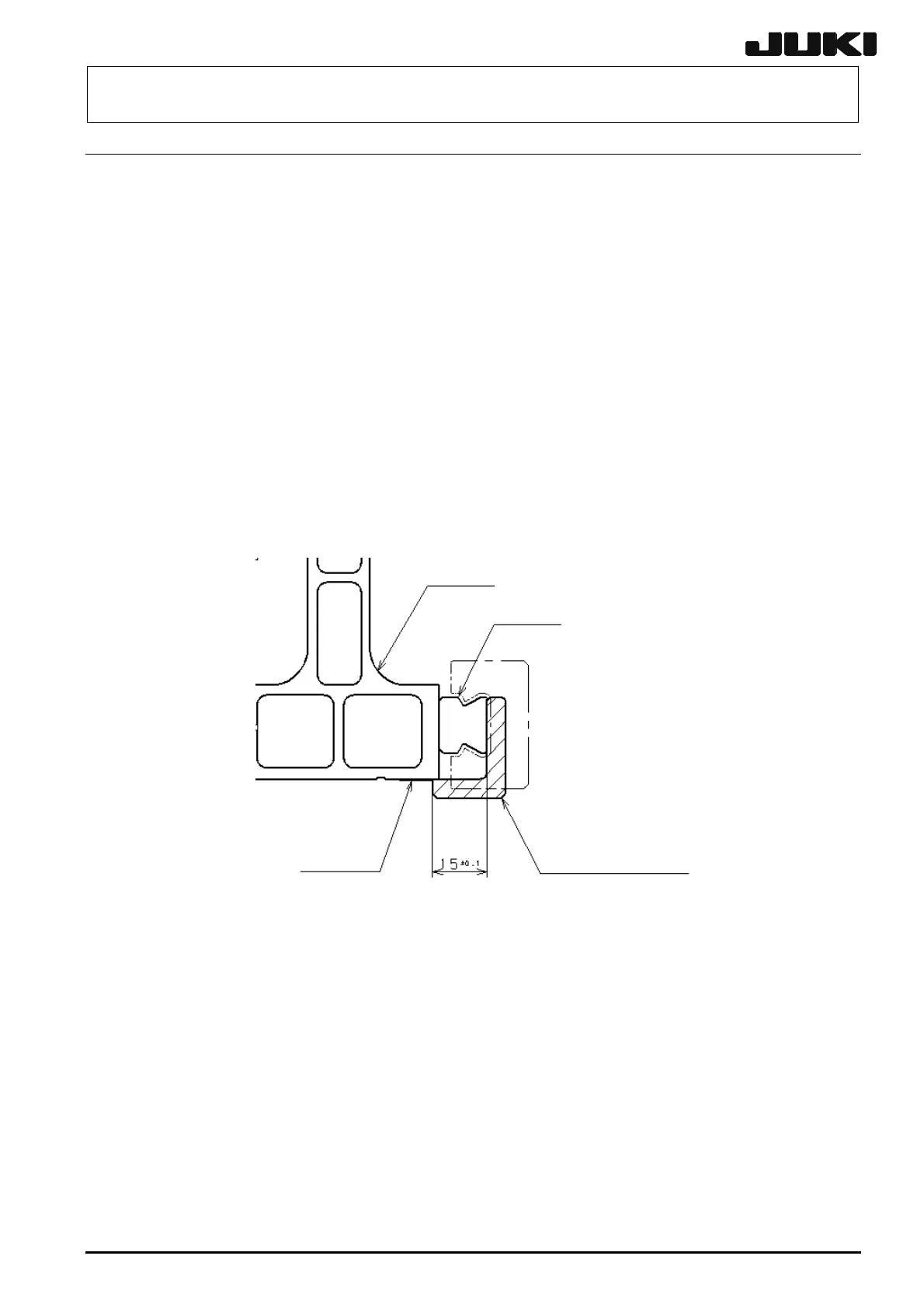

• X-axis magnescale affixing procedure
c With the X-axis affixing jig (part No. 40008104) made in contact with the front of the LX-guide
and the bottom of the X-axis frame, make the magnescale in contact with the X-axis affixing
jig to affix the magnescale.
X-axis magnescale affixing jig
Magnescale
X-axis frame
LM guide X
Magnescale affixing position (deviation in the horizontal direction): Specification value ± 0.1 mm
Rev. 2.00
