KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-9
9-8. Replacing the Selector Switch (Optional Replacement Table)
(1) Shut-down the main compressed air to the main unit (with the hand valve).
(2) Turn the selector switch cap counterclockwise to detach the selector switch from the cover.
(3) Mount the half-union and silencer on a new selector switch and secure the selector switch to
the cover with the cap.
(4) Supply the main compressed air to the main unit.
Cover mounting
hole
Silencer
PX055104000
Free elbow × 2
PJ304065103
Rubber
3
Selector switch
PV0151170A0
Selector switch assembly
40000585
Cap
Half-union
PV025103000
Check valve
PJ301065103

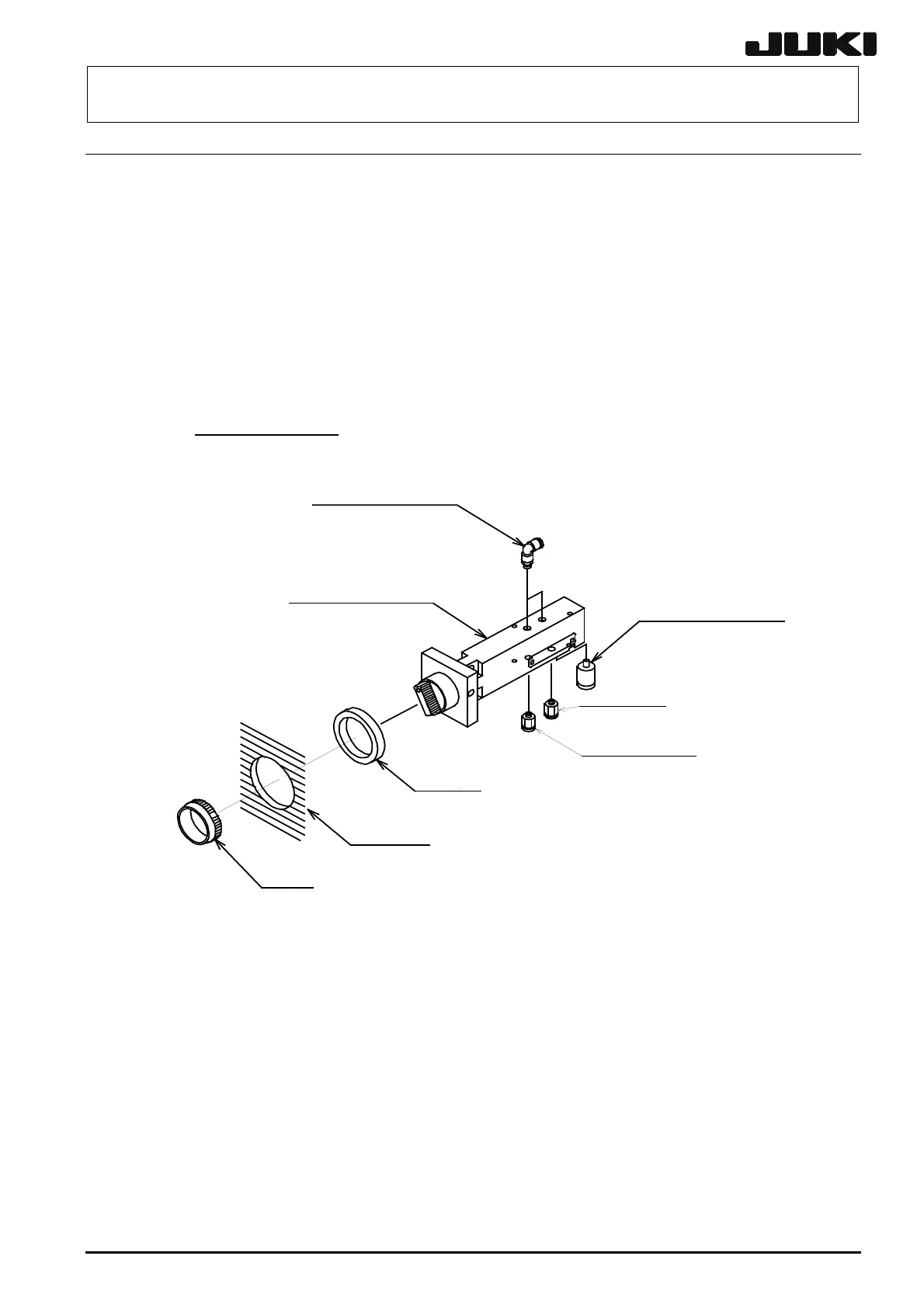

Figure 9-8-1
Rev. 2.00
To Next Page
