KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
3-3

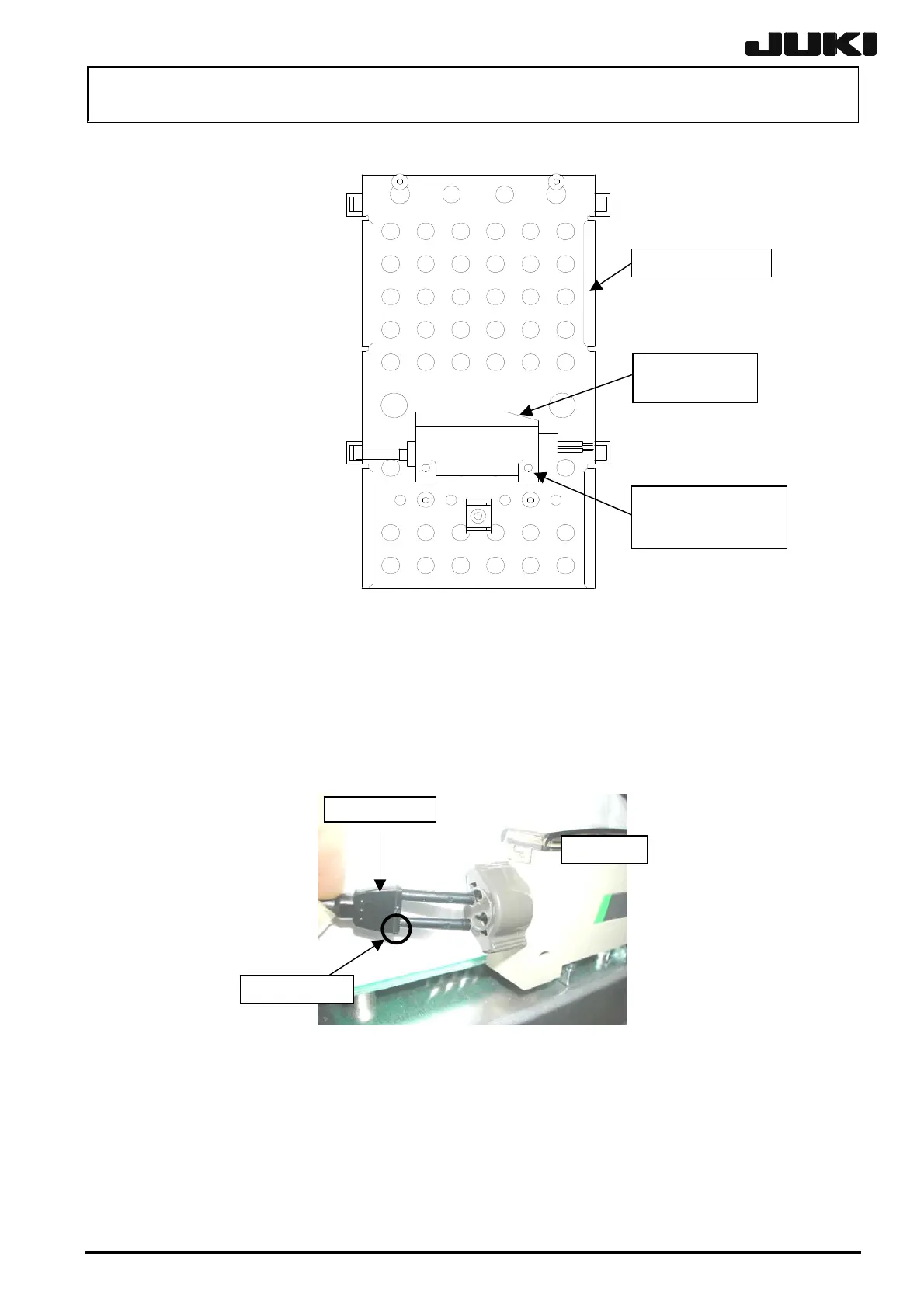

3-2-3. Amplifier
Washer assembled
hexagon socket head
cap bolt (× 2)
Bad mark sensor
amplifier
MNLA motor cover
Figure 3-2-2 Mounting the Amplifier
3-2-4. Assembling the Fiber Unit to the Amplifier
Make the projection on the fiber unit facing toward a position where the LED does not exist on the
amplifier and insert it completely until it is in contact with the far side.
After the fiber has been inserted until it is in contact with the far side, turn the connector clockwise to
check that the fiber unit cannot be removed.
Fiber unit
Amplifier
Projection
Figure 3-2-3 Assembling the Fiber Unit
Rev. 2.00
