KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
4-4
4-4. Replacing the Lens Filter
(1) Detach the light assembly from the head plate using the procedure described in "Replacing the
OCC Assembly".
(2) Remove the washer assembled hexagon socket head cap bolt, collar and shoulder screws to
detach the light filter U support, lens filter and guide plate.
(3) Remove the countersunk-head screws to detach the lens filter
(4) Reassemble the components in the reverse order of disassembly.
(5) After the filter has been replaced, it is necessary to adjust the polarizing filter and OCC light.
(See 4-8. "List of Readjustment Items After Replacement".)
Washer assembled
hexagon socket head cap
bolt
Countersunk-head
screw (× 4)
Shoulder
screw
× 1
Rev. 2.10

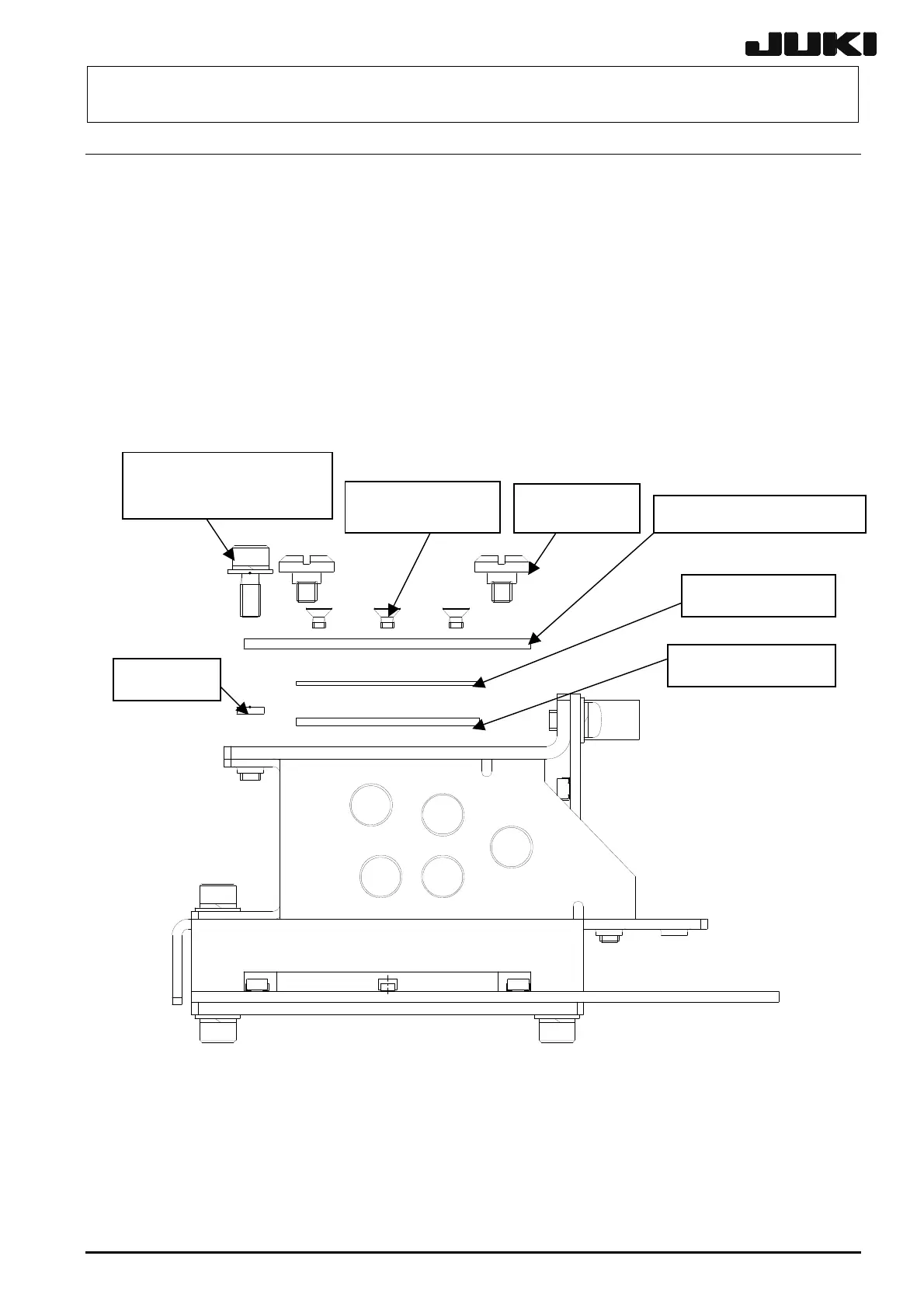

Figure 4-4-1 Replacing the Lens Filter
2
Collar (× 1)
Light filter U support (
1)
Lens filter (
1)
Guide plate (
1)
To Next Page
