KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-2
9-2. Replacing the Drive Cylinder
(1) Turn off the power to the main unit.
(2) Shut-down the main compressed air to the main unit (with the hand valve). If the machine is
equipped with an optional replacement table, detach it and move it outside the main unit. Turn
on the selector switch, push the right and left roller levers to move the lifter up. When the lifter is
moved up, shut down the main compressed air.
(3) Disconnect the left and right air tubes c and connectors d.
(4) Remove the driver bracket support mounting screws.
In the standard machine, these screws are mounted on the bottom surface of the bank from the
lower portion.
In the machine with the replacement table, these screws are mounted on the bottom surface of
the bank lifter from the upper portion.

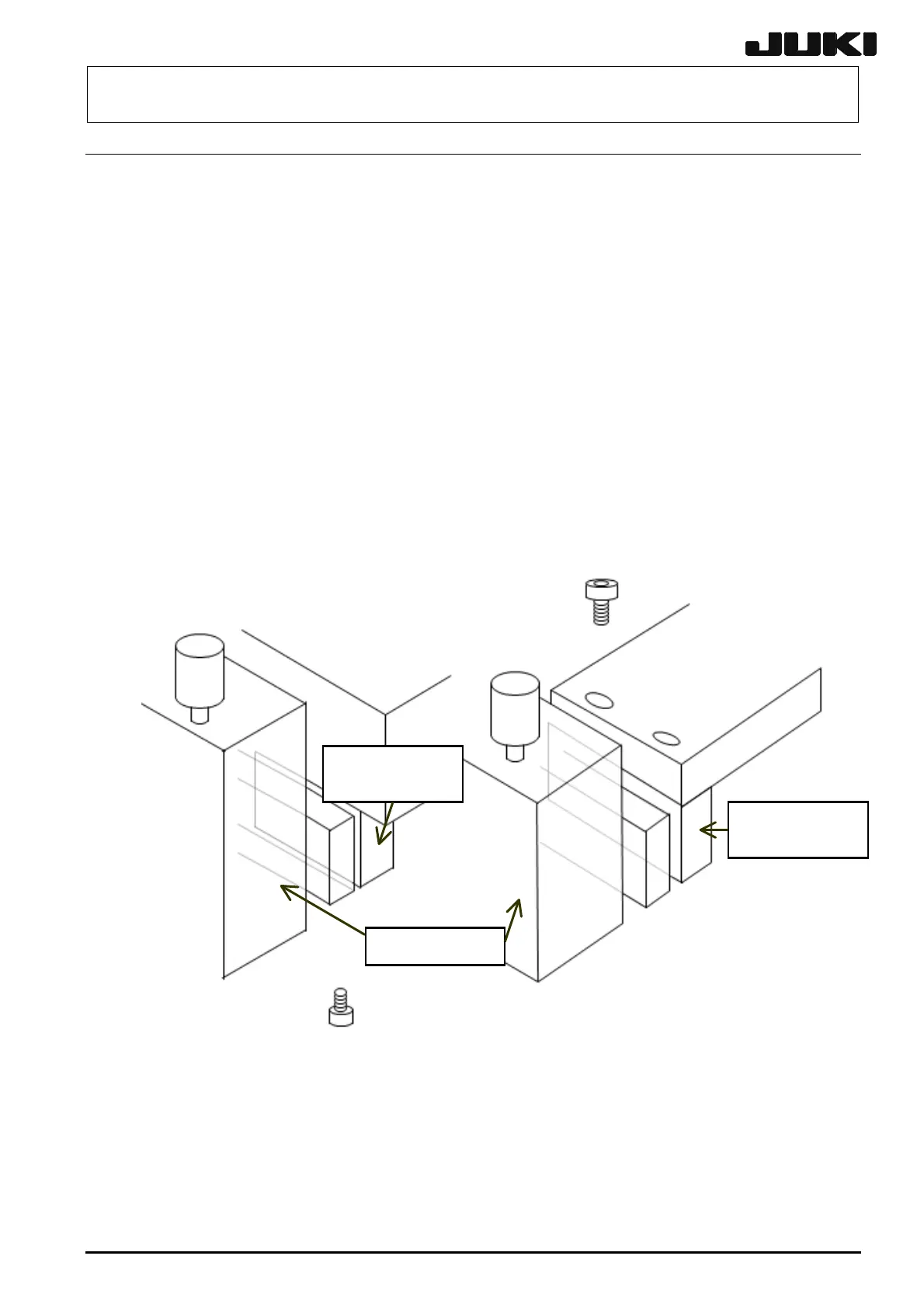

(Replacement table)
(Standard)
Bank
Driver bracket
support C
Driver bracket
support A
Driver cylinder
Bank lifter
Figure 9-2-1
Rev. 2.00
